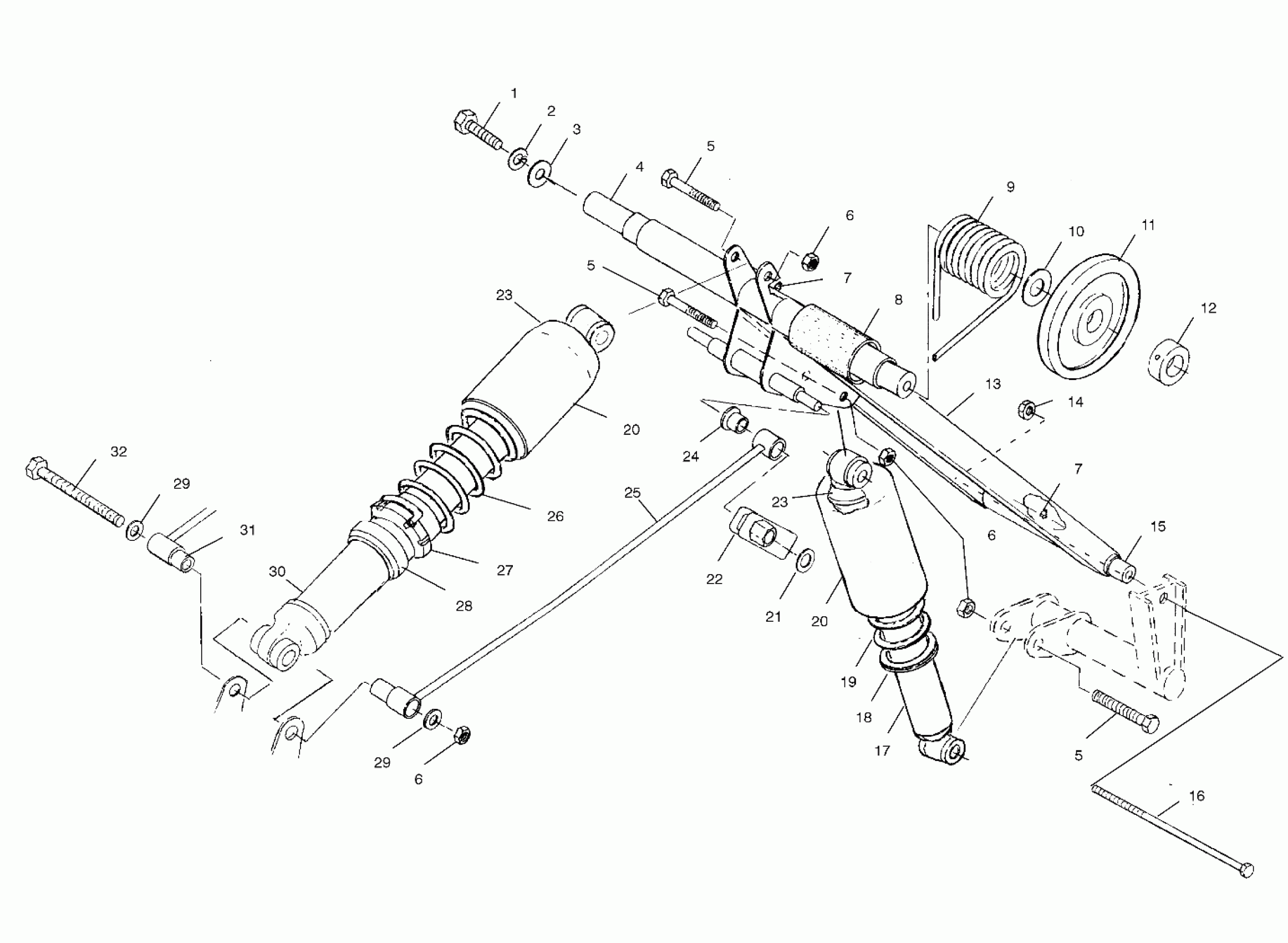

Polaris 600 CLASSIC TOURING - S02ST6ES REAR TORQUE ARM - S02ST6ES/S02ST6ESA (4968596859B12) Diagram

#

Description
Price

1

Screw

7517436

Unavailable

2

WASHER-LOCK, 7/16-B

7552614

$1.59

3

Washer, Flat

7555984

$2.39

4

Shaft, Rear Torque Arm, Upper

5020814

Unavailable

5

Screw

7515433

$1.59

5

Screw

7515433

$1.59

5

Screw

7515433

$1.59

6

Nut, FLEXLOC

7542411

$3.19

6

Nut, FLEXLOC

7542411

$3.19

6

Nut, FLEXLOC

7542411

$3.19

7

FITTING-LUBRICATION 1/4-28

7080424

$4.79

7

FITTING-LUBRICATION 1/4-28

7080424

$4.79

8

Sleeve, Torsion Spring

5431923

$6.39

9

Spring, Torsion, RH, Opt. [.406/55]

7041395-067

Unavailable

9

Spring, Torsion, LH, Opt. [.421/55]

7041406-067

$95.19

9

Spring, Torsion, RH, Opt. [.421/55]

7041407-067

Unavailable

9

Spring, Torsion, LH, Std. [.437/77]

7041487-067

$113.32

9

Spring, Torsion, RH, Std. [.437/77]

7041488-067

Unavailable

9

Spring, Torsion, LH, Opt. [.406/55]

7041394-067

Unavailable

10

WASHER, THRUST

7555787

Unavailable

11

Bearing

3514305

$19.99

11

RET.RING-TRUARC

7718407

$4.79

11

Asm., Wheel

1543023

Unavailable

12

Collar, Bearing Lock

5010404

Unavailable

12

Screw

7512257

$3.99

13

Arm, Torque, Rear

1541029-067

Unavailable

14

Nut, FLEXLOC, Thin

7542507

$3.99

15

Shaft

5020898

Unavailable

16

Screw

7517248

$13.19

17

Shock, Gas, Rear Track

7041481

Unavailable

18

Retainer, Spring

5241276-067

Unavailable

19

Spring, Compression

7041484-067

$214.99

20

Shield, Spring

5410874

$20.22

20

Shield, Spring

5410874

$20.22

21

CLIP-PUSH ON

7080394

$2.39

22

Roller, Spring

5431909

$5.75

23

Retainer, Spring, Slotted

5630580

Unavailable

23

Retainer, Spring, Slotted

5630580

Unavailable

24

Bushing

3573910

Unavailable

25

Rod, Shock, Xtra-12

1541014-067

$92.99

26

Spring, Compression

7041404-067

$144.99

27

Ring, Spring Preload, Adjusting

5431734

$52.60

28

Retainer, Spring, Body, Threaded

1500091

$27.83

29

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

29

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

30

Shock, Front Track

7041486

$214.99

31

Spacer

5333028

$1.59

32

Screw

7517378

Unavailable
