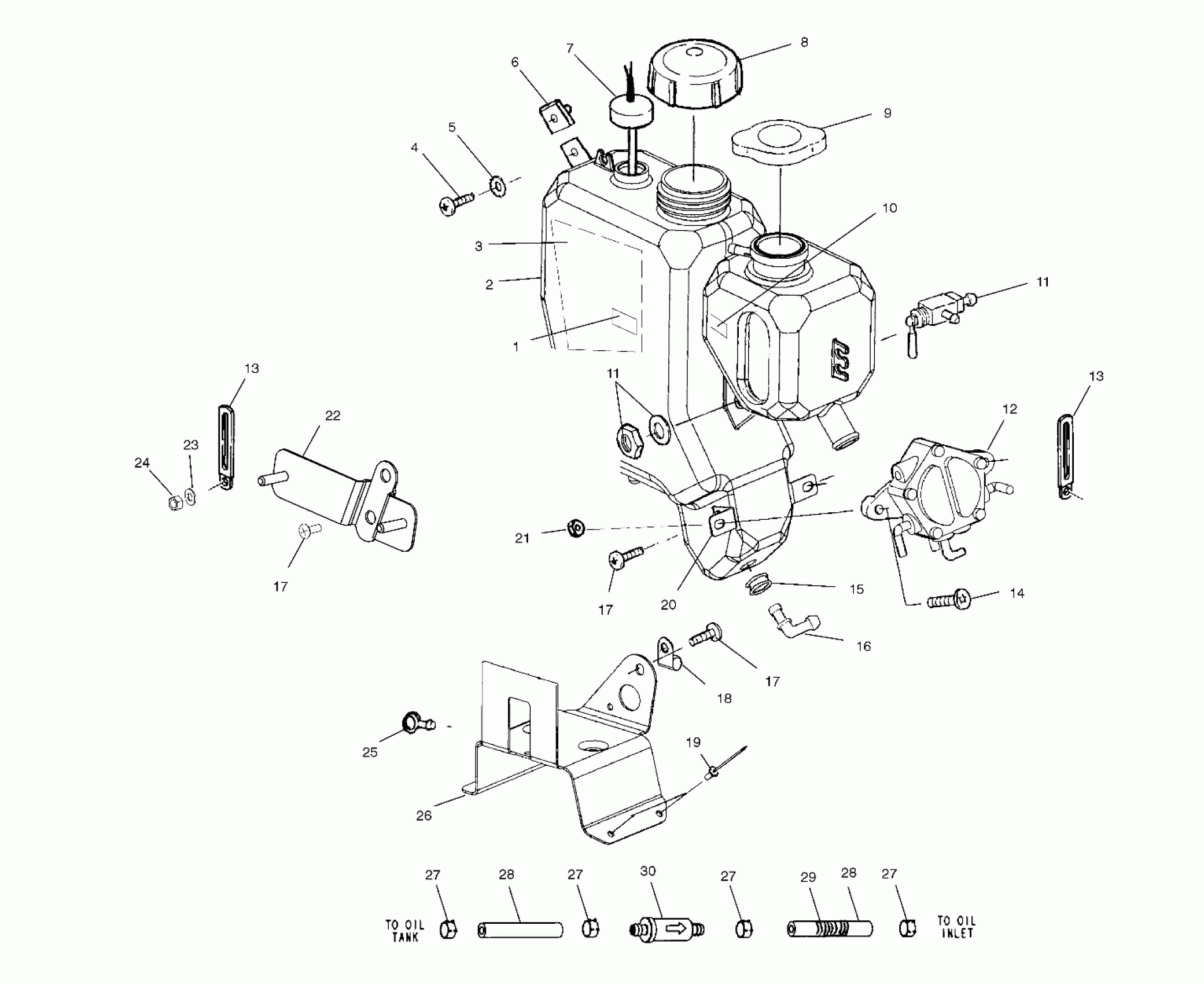

Polaris 600 CLASSIC TOURING - S02ST6ES OIL TANK - S02ST6ES/S02ST6ESA (4968596859C02) Diagram

#

Description
Price

1

Decal, Fuel Shut-Off

7077442

Unavailable

2

Tank w/Foil, Oil/Coolant

1253353

Unavailable

3

Foil, Oil Tank

5811934

Unavailable

4

Screw

7512276

$4.79

5

WASHER

7558302

$1.59

6

NUT, CHIMNEY

7670096

$1.59

7

Sensor, Oil Level

4110134

$72.84

8

Cap, Oil, Vented, Custom Color

1240094

$36.41

9

DECAL, WATER BOTTLE CAP

7170063

$4.03

9

Cap, Pressure, 13 lb.

2511270

$24.27

10

Decal, Surge Tank, "Full Cold"

7078369

Unavailable

11

VALVE, FUEL SHUT-OFF [See Engine Mounting Pg. C6, Ref. 20]

-------

Unavailable

11

VALVE, FUEL SHUT-OFF [See Engine Mounting Pg. C6, Ref. 20]

-------

Unavailable

12

PUMP, FUEL [See Engine Mounting Pg. C6, Ref. 21]

-------

Unavailable

13

Retainer

7080654

$18.32

13

Retainer

7080654

$18.32

14

Screw

7517455

$8.99

15

Grommet

7052028

$6.39

16

Fitting, 90 Degree

7052208

$6.39

17

Screw

7517615

$3.19

17

Screw

7517615

$3.19

17

Screw

7517615

$3.19

18

CLAMP-CABLE

7080367

$2.39

19

RIVET-3/16-.090-.290

7661637

$1.49

20

Bracket, Fuel Pump Mount

5242680

$9.91

21

Nut, Nylok

7542122

$1.49

22

Bracket, CDI Mount

1012947

$23.99

23

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

24

Nut, Nylok

7541925

$1.49

25

CLIP, ROSEBUD

4020139

$4.79

26

Bracket w/Bridge, Oil Tank

5244339

$16.47

27

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

27

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

27

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

27

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

28

Line, Fuel

8450003-1525

Unavailable

28

Line, Fuel

8450003-1525

Unavailable

29

Conduit, Convoluted

4010051-18

Unavailable

30

FILTER

2530009

$5.65
