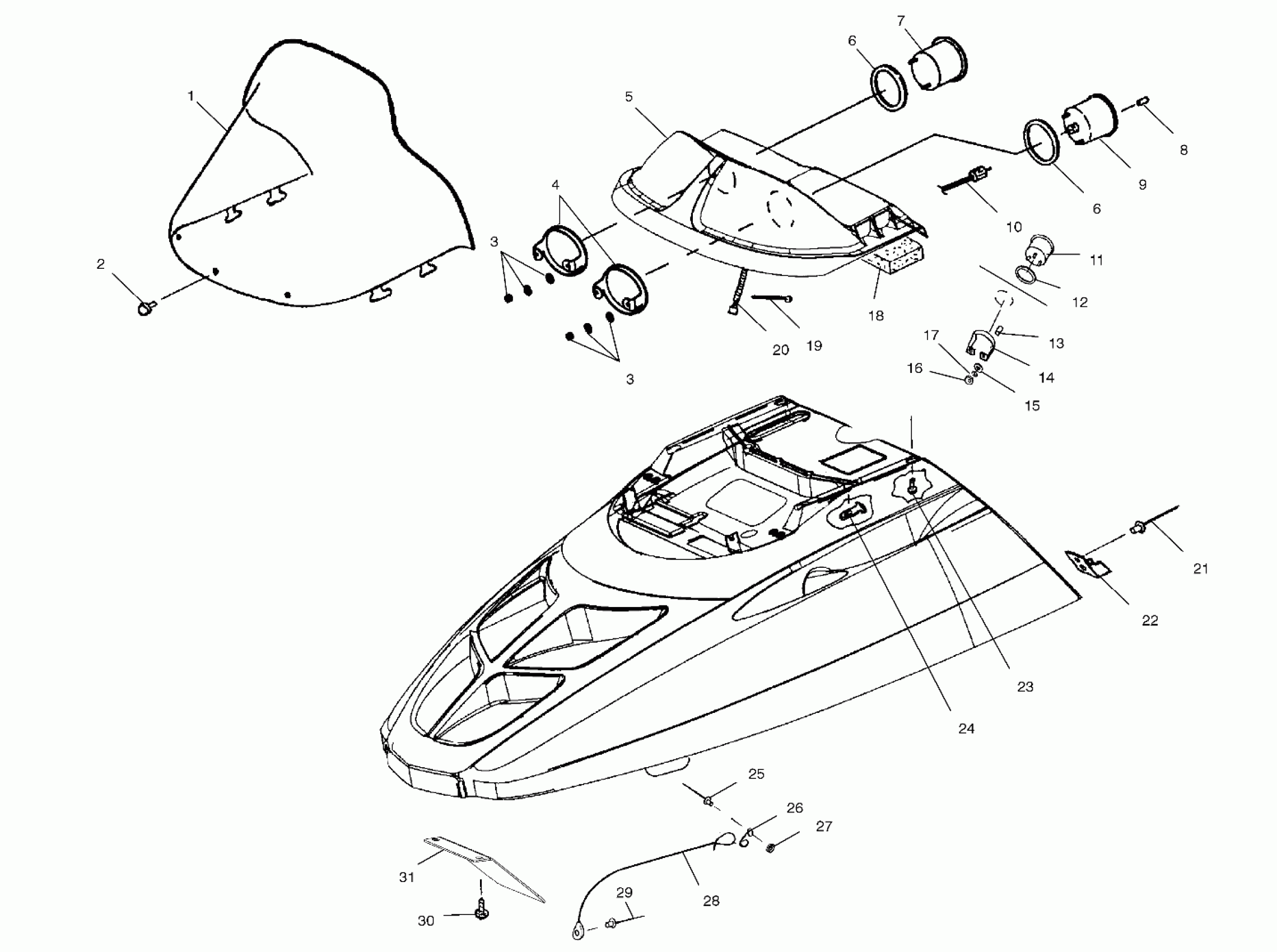

Polaris 600 CLASSIC TOURING - S02ST6ES HOOD - S02ST6ES/S02ST6ESA (4968596859A10) Diagram

#

Description
Price

1

Windshield, 18", Flared, Clear

5433667

Unavailable

2

Rivet, Plastic

7621509

$1.49

3

Washer, Flat

3280157

$2.39

3

Nut

3280158

Unavailable

3

Washer, Split Lock

3280156

$1.49

3

Washer, Flat

3280157

$2.39

3

Nut

3280158

Unavailable

3

Washer, Split Lock

3280156

$1.49

4

Bracket, Speedometer/Tachometer

3280210

$28.32

5

Housing, Instrument [Incl. Warning Decals]

2632374

Unavailable

6

Cushion, Rubber

3280209

$3.99

6

Cushion, Rubber

3280209

$3.99

7

Bulb, Replacement

4030015

$4.03

7

Tachometer, 6 Pulse, w/Rev.

3280369

Unavailable

8

Knob, Trip Odometer

3280186

$9.70

9

Bulb, Replacement

4030015

$4.03

9

Speedometer

3280328

Unavailable

10

Cable, Speedometer

3280341

$60.70

11

Gauge, Fuel, 2", Backlit

3280334

$131.99

11

Fuse

4060139

Unavailable

12

Cushion, Fuel Gauge

3280230

$3.41

13

Spacer, Fuel Gauge Bracket

3280228

$2.81

14

Bracket, Fuel Gauge, 2"

3280229

Unavailable

15

Washer, Flat

3280231

$0.24

16

Nut, Hex

3280232

$1.49

17

Washer, Split Lock

3280233

Unavailable

18

FOAM, PRE-FILTER

5811625

$29.99

19

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

20

Harness, Headlight

2460913

$107.19

21

RIVET

7621334

$1.49

22

CUP, HOOD LATCH

5430733

$4.84

23

Screw

7517441

$2.39

24

Retainer

5410970

$1.49

25

RIVET

7661084

$1.49

26

CLIP, PIGTAIL

5242893

$6.65

27

Washer

7555904

$1.49

28

Cable, Hood

7080764

$28.32

29

Rivet

7621402

$1.49

30

SCREW

7512068

$2.39

31

Deflector, Air

5243393

Unavailable
