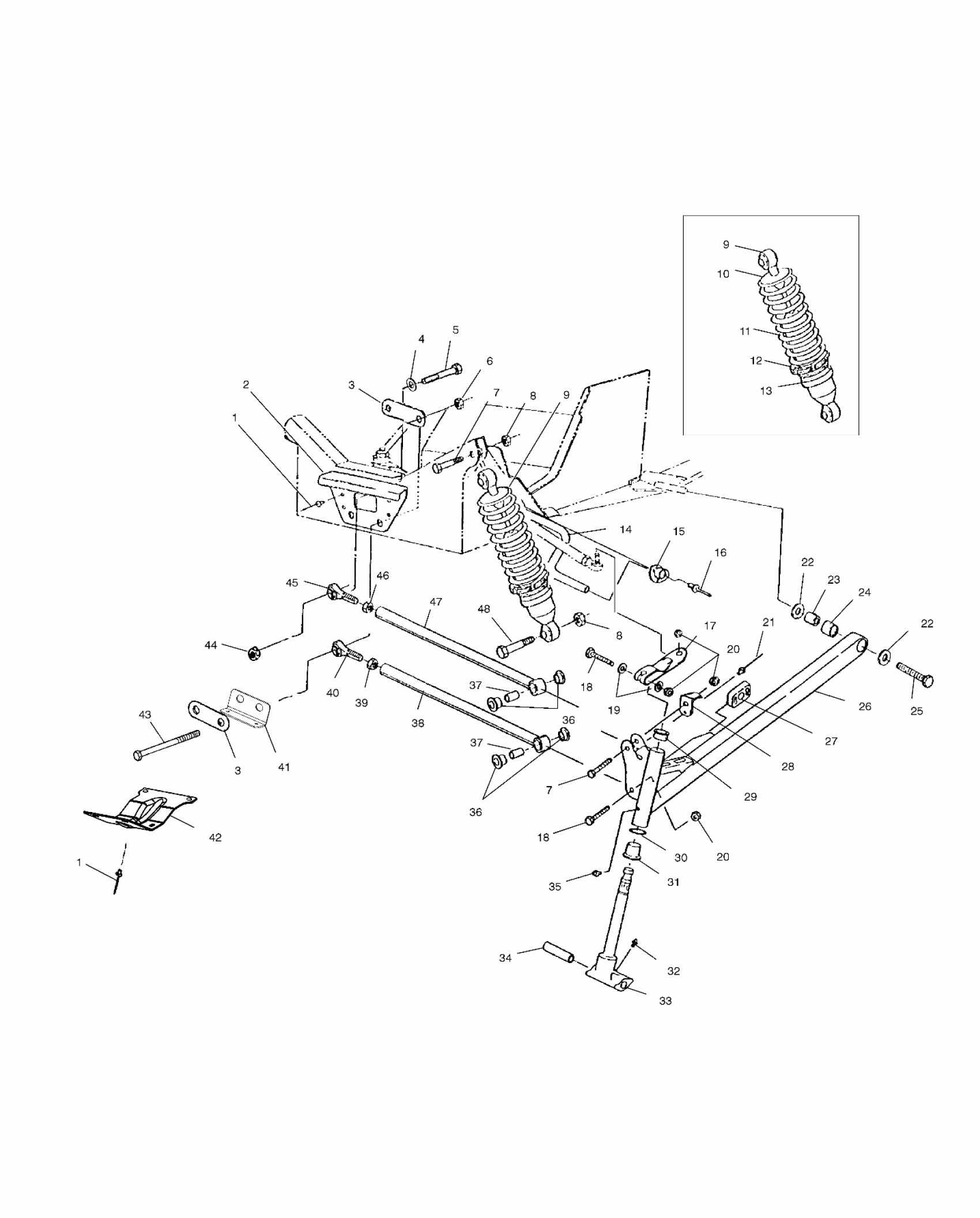

Polaris 600 CLASSIC TOURING - S02ST6ES FRONT SUSPENSION - S02ST6ES/S02ST6ESA (4968596859B01) Diagram

#

Description
Price

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

2

Brace, Bulkhead

1012575-067

$23.99

3

Strap, Spacer, Bottom

5211345

$12.99

3

Strap, Spacer, Bottom

5211345

$12.99

4

Washer

7558702

$1.59

5

Screw

7512551

Unavailable

6

Nut, FLEXLOC

7542703

Unavailable

7

Screw

7515415

$1.49

7

Screw

7515415

$1.49

8

Nut, Nylok

7542439

$1.49

8

Nut, Nylok

7542439

$1.49

9

Shock

7041795

Unavailable

9

Shock

7041795

Unavailable

10

Retainer, Slotted

5630580

Unavailable

11

Spring, Compression

7041551-067

$74.99

12

Ring, Spring Preload

5431734

$52.60

13

RETAINER, SPRING, BODY, THREADED

1500063

$44.51

14

Bar, Sway

5243438-067

$49.59

15

Bushing, Sway Bar

5432038

$19.99

16

Rivet

7621452

$1.49

17

Arm, Steering, LH Silver

5241660-244

Unavailable

17

Arm, Steering, RH, Silver

5241661-244

Unavailable

18

SCREW

7517583

$4.35

18

SCREW

7517583

$4.35

19

WSHR-.813X.406X.105-Y

7555832

$2.39

20

Nut, FLEXLOC

7542403

$3.99

20

Nut, FLEXLOC

7542403

$3.99

21

Rivet

7661130

$1.49

22

WASHER

7555721

$1.49

22

WASHER

7555721

$1.49

23

BUSHING

5010310

$9.70

24

PIVOT, RUBBER

5410872

$10.99

25

Screw

7512557

$7.60

26

Asm., Trailing Arm, LH [Incl. 23,24]

1821075

Unavailable

26

Asm., Trailing Arm, RH [Incl. 23,24]

1821076

Unavailable

27

Slide, Sway Bar

5432561

$24.27

28

Stop, Steering, LH, Silver

5241777-244

Unavailable

28

Stop, Steering, RH, Silver

5241778-244

$17.43

29

BUSHING, FLANGE

3573909

$2.39

30

Bushing

7556509

$1.59

31

Bushing, Flange

3574208

$3.19

32

Fitting, Lubrication

7080306

$3.19

33

Shaft, Spindle

6230102-067

$294.99

34

Bushing

5010158

$19.99

35

Fitting, Lubrication

7080433

$1.49

36

Bushing, Radius Rod Pivot

5431486

$3.19

36

Bushing, Radius Rod Pivot

5431486

$3.19

37

BUSHING

5010127

$7.99

37

BUSHING

5010127

$7.99

38

Rod, Radius, Lower, Silver

1820673-244

Unavailable

39

Nut, Jam

7542711

$2.39

40

Rod End

7061052

$48.56

41

Bracket, Radius Rod, Lower

5242578

$44.99

42

BRACE, PAN, LOWER [See Nosepan Pg. A7, Ref. 17]

-------

Unavailable

43

Bolt

7512684

Unavailable

44

Nut, FLEXLOC

7542503

$10.39

45

Rod, End

7061049

Unavailable

46

Nut, Jam

7542520

$2.39

47

Rod, Radius, Upper, Silver

1820672-244

Unavailable

48

Screw

7515433

$1.59
