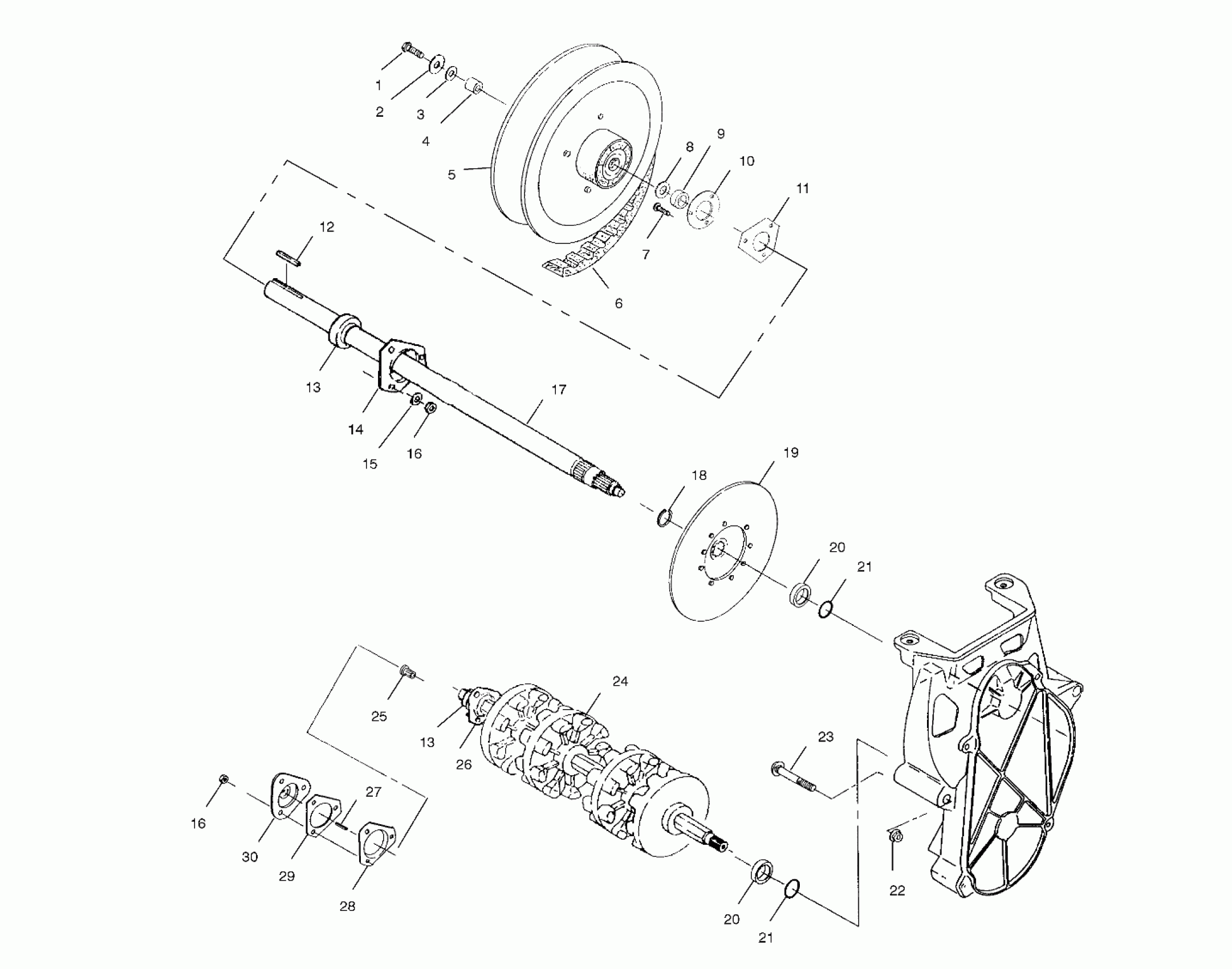

Polaris 600 CLASSIC TOURING - S02ST6ES DRIVE TRAIN - S02ST6ES/S02ST6ESA (4968596859B08) Diagram

#

Description
Price

1

Screw

7515369

$4.79

2

WASHER, FLAT

7555701

$3.99

3

Washer

7555734

Unavailable

4

Spacer

5020913

Unavailable

5

ASM., DRIVEN CLUTCH [SEE DRIVEN CLUTCH PG. C1, REF. 18]

-------

Unavailable

6

Belt, Drive

3211075

$109.99

7

Bolt, Carriage

7512377

$4.79

8

Bushing

7556509

Unavailable

9

Spacer

5020837

$24.99

10

Fitting, Lubrication

7080561

$4.79

10

Flangette w/Grease Fitting

5241359

$32.37

11

Gasket, Jackshaft

5811095

$2.41

12

Key

7721128

$10.39

13

Bearing, Jackshaft

3514525

$31.99

13

Bearing, Jackshaft

3514525

$31.99

14

FLANGETTE

5222751

$16.44

15

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

16

NUT-5/16-18 NYLOK-Y

7542324

$1.49

16

NUT-5/16-18 NYLOK-Y

7542324

$1.49

17

Jackshaft [Incl. 13,18]

1332207

Unavailable

18

Ring, Retaining, Round

7710422

$3.99

19

Disc, Brake

1910403

Unavailable

20

SLEEVE, SEAL

5020588

$23.99

20

SLEEVE, SEAL

5020588

$23.99

21

O-RING

5410613

$1.99

21

O-RING

5410613

$1.99

22

Nut, Flange

7542423

$3.99

23

Bolt, Carriage

7515428

$4.79

24

Asm., Drive Shaft [Incl. 25,26]

1590282

Unavailable

25

Bushing, Speedometer, Metal

3280019

$11.99

26

Flangette w/Screws

1012945

$114.99

27

Key, Square, Speedometer

3280017

$13.75

28

Flangette

5243529

$13.75

29

Gasket, Drive Adaptor

5830012

$2.41

30

Adaptor w/Fitting, Drive

3280116

$101.17
