Partiron

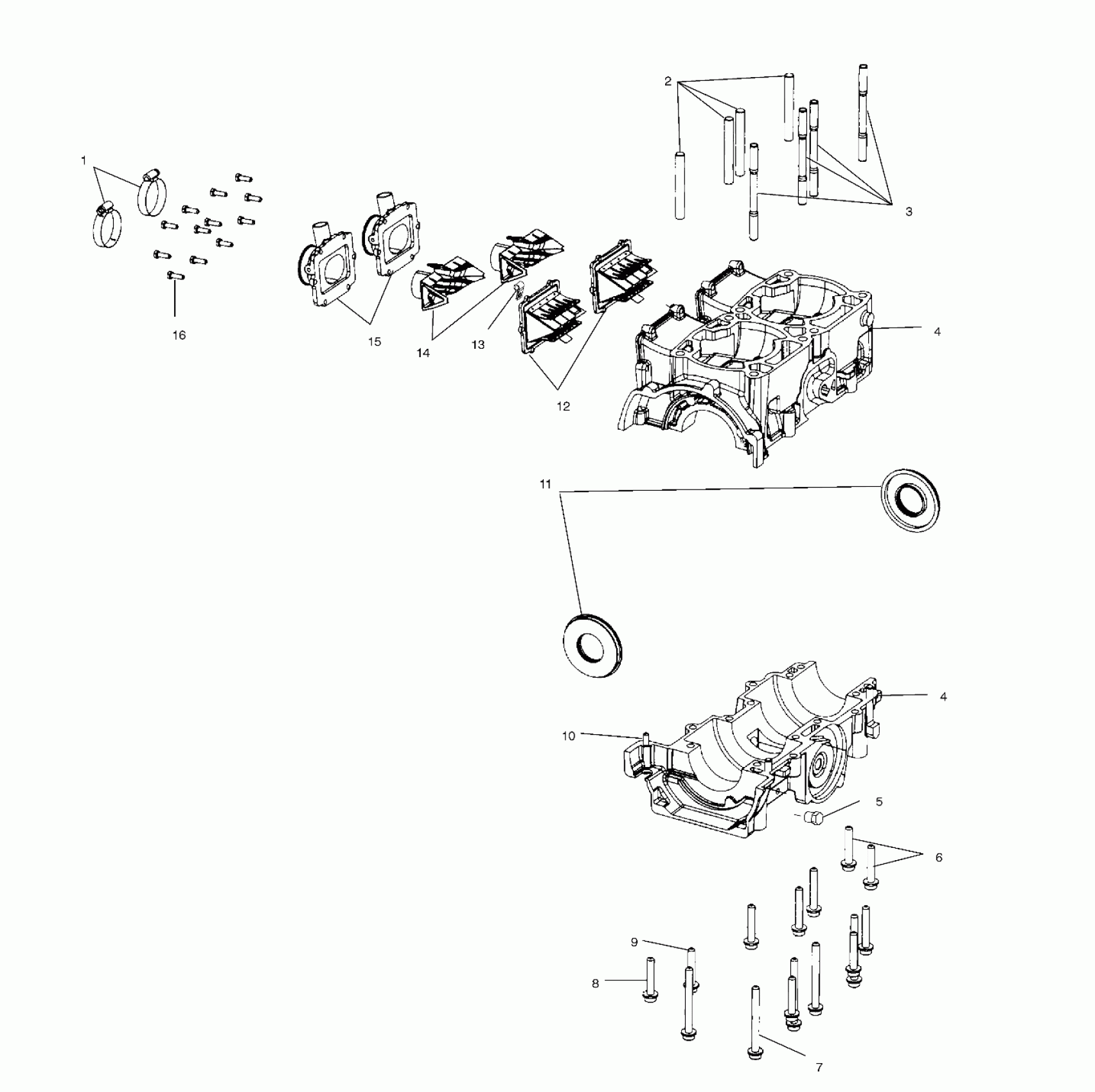

Polaris 600 CLASSIC TOURING - S02ST6ES CRANKCASE - S02ST6ES/S02ST6ESA (4968596859C07) Diagram

#

Description
Price

1

Clamp, Hose

7080681

$9.59

2

Stud

5132196

$20.63

3

Stud

5132197

$21.27

4

Kit - Crankcase [Incl. 2,3,5-10]

2201931

$444.99

4

Kit - Crankcase [Incl. 2,3,5-10]

2201931

$444.99

5

Plug

7051529

$15.99

6

Screw

7517785

$9.59

7

Screw

7517784

$8.79

8

SCREW

7516825

$5.59

9

Screw

7517786

$6.39

10

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

11

Seal

5411394

$29.99

12

Asm., Reed Valve

1202270

Unavailable

13

CLAMP, HOSE

7080683

$2.39

14

Stuffer, Reed

5432852

Unavailable

15

Adaptor, Carb

1253217

Unavailable

16

SCREW

7516822

$2.39
