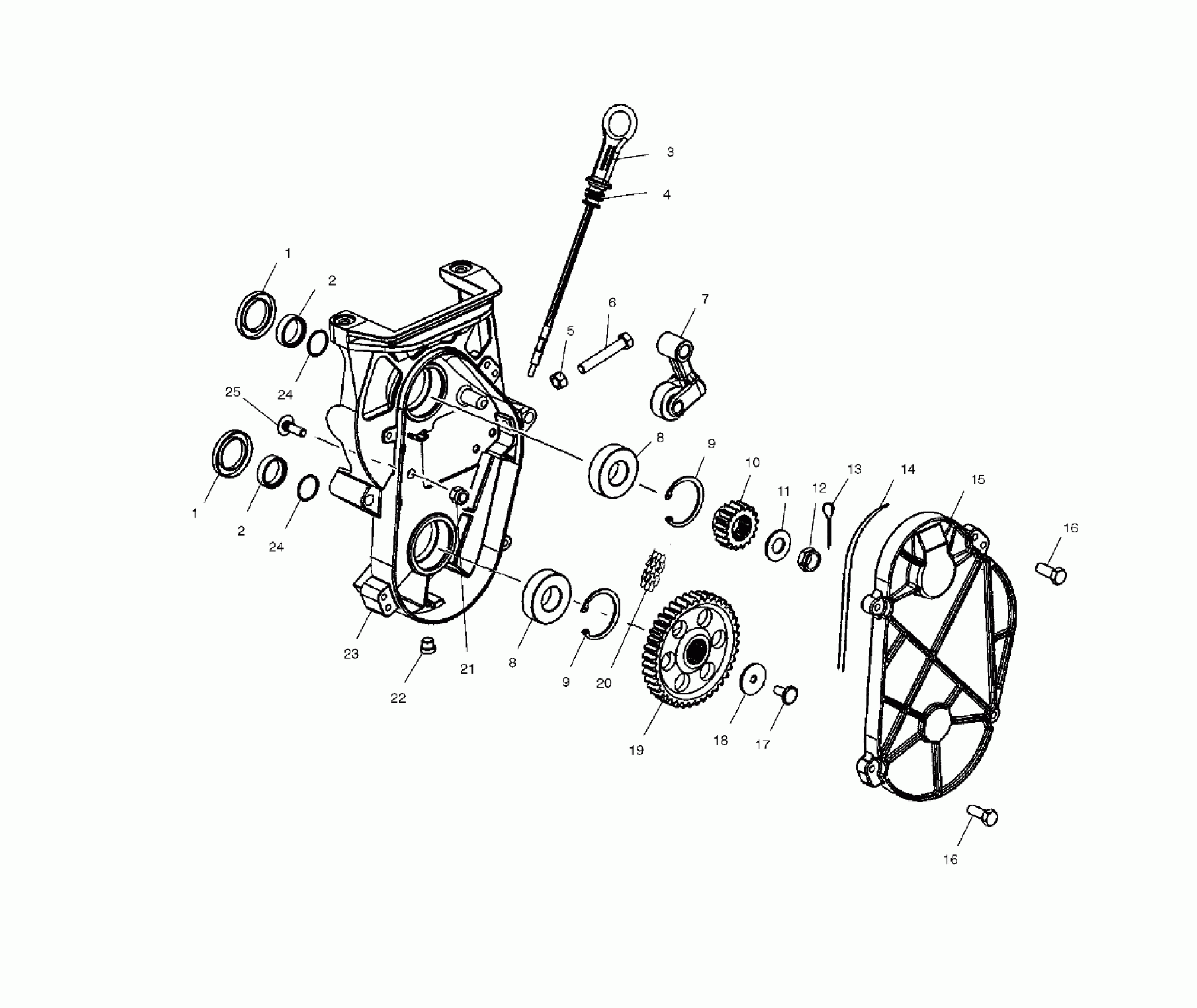

Polaris 600 CLASSIC TOURING - S02ST6ES CHAINCASE - S02ST6ES/S02ST6ESA (4968596859B07) Diagram

#

Description
Price

1

SEAL-OIL

3610030

$20.22

1

SEAL-OIL

3610030

$20.22

2

SLEEVE, SEAL

5020588

$23.99

2

SLEEVE, SEAL

5020588

$23.99

3

Dipstick

5431419

Unavailable

4

O-RING

5410675

$1.60

5

NUT

7542404

$1.59

6

Screw

7515551

$6.39

7

Pin, Chain Tightener

7662210

Unavailable

7

Bearing, Chaincase Idler

3553002

$11.99

7

Wheel, Idler

5630123

Unavailable

7

WASHER, THRUST

7558702

$1.59

7

Asm., Tightener

1332213

$159.99

7

Block, Tightener

5630958

$159.99

8

BEARING, BALL

3514309

$15.87

8

BEARING, BALL

3514309

$15.87

9

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

9

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

10

SPROCKET, 20T, 3/4W

3221096

$49.99

11

Washer, Spring

7571620

$7.19

12

Nut, FLEXLOC

7542811

Unavailable

13

PIN, COTTER

7661401

$1.49

14

Gasket, Chaincase

5410277

$24.99

15

Cover, Chaincase

5630968

Unavailable

16

SCREW

7512242

$2.39

16

SCREW

7512242

$2.39

17

Screw

7517979

$3.99

18

Washer, Spring

7571618

$6.39

19

Sprocket, 40T, 3/4W

3222099

Unavailable

20

Chain, 66P, 3/4W

3221113

$124.99

21

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

22

PLUG

7052115

$5.65

23

Chaincase

5132158

Unavailable

24

O-RING

5410613

$1.99

24

O-RING

5410613

$1.99

25

Screw

7515477

$34.99
