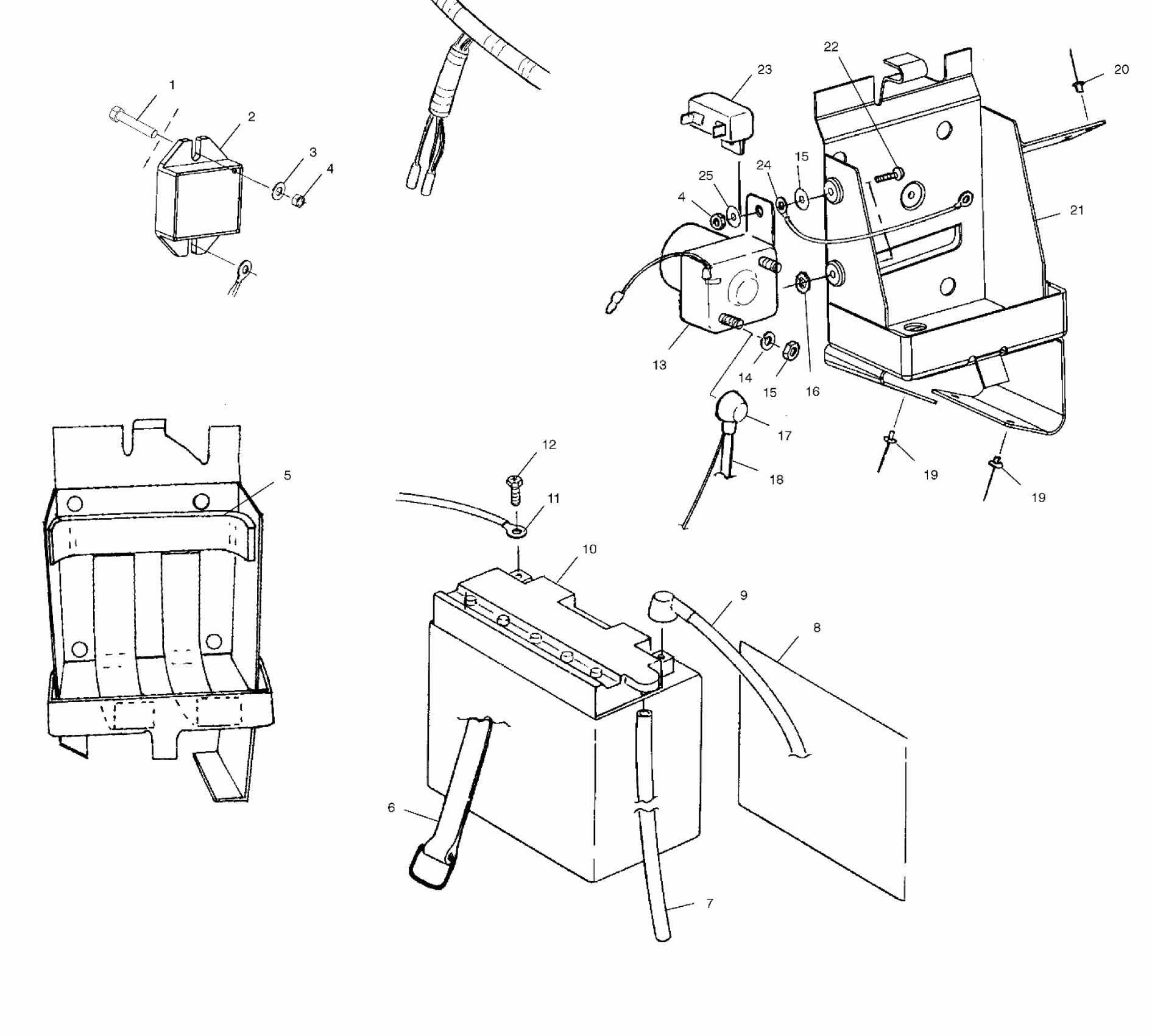

Polaris 600 CLASSIC TOURING - S02ST6ES BATTERY BOX - S02ST6ES/S02ST6ESA (4968596859B13) Diagram

#

Description
Price

1

Screw

7517263

Unavailable

2

Regulator, AD/DC, 14.3V

4010355

$116.17

3

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

4

Nut, Nylok

7541925

$1.49

4

Nut, Nylok

7541925

$1.49

5

PAD-BATTERY

5810290

$7.27

6

Strap, Battery Hold-Down

2450020

$29.03

7

Tube, Vent

5433681

Unavailable

8

Tape, Foil

8360018-7.5

Unavailable

9

Cable, Battery/Solenoid

2460393

$36.41

10

Battery

4140006

$99.99

11

Cable, Battery

4010114

Unavailable

12

Kit, Battery Bolt

2200361

$3.99

13

SWITCH, MAGNETIC [See Starting Motor Pg. C5, Ref. 20]

-------

Unavailable

14

WASHER, SPRING [See Starting Motor Pg. C5, Ref. 19]

-------

Unavailable

15

NUT [See Starting Motor Pg. C5, Ref. 18]

-------

Unavailable

15

NUT [See Starting Motor Pg. C5, Ref. 18]

-------

Unavailable

16

Washer, External Tooth

7571602

$4.79

17

INSULATOR-CABLE

5410346

$6.39

18

Cable

4010190

Unavailable

19

RIVET

7621467

$1.49

19

RIVET

7621467

$1.49

20

RIVET

7621418

$1.49

21

Box, Battery

1012799-067

$82.39

22

Screw

7512027

$1.49

23

Breaker, Circuit

2434008

Unavailable

24

Wire, Jumper, Solenoid/Battery

4010108

Unavailable

25

Washer, Flat

7558201

$5.79
