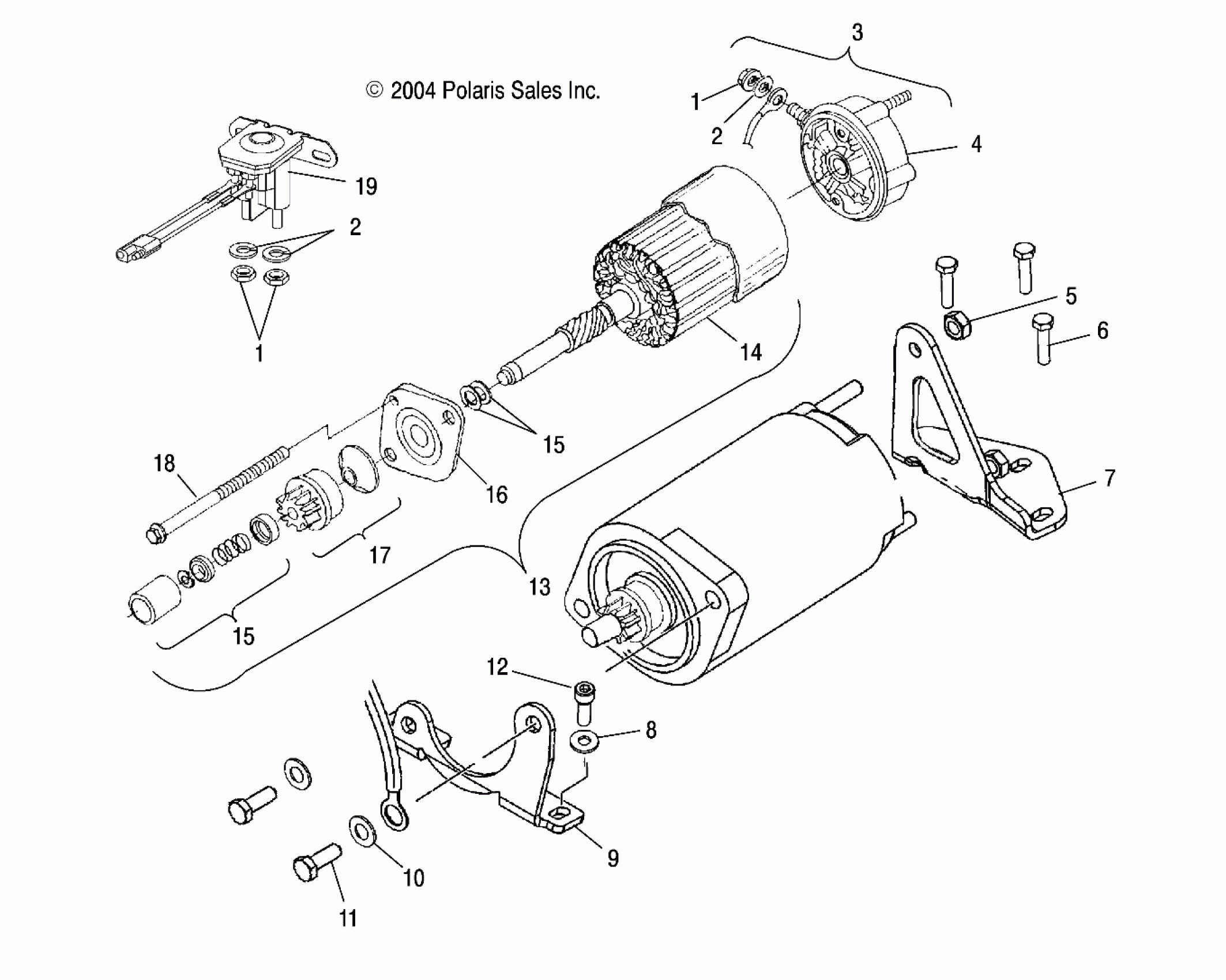

Polaris 600 CLASSIC - S05ND6ES STARTING MOTOR - S05ND6ES (4992689268D03) Diagram

#

Description
Price

1

NUT

7542105

$3.99

1

NUT

7542105

$3.99

2

WASHER, SPRING LOCK

7552801

$1.59

2

WASHER, SPRING LOCK

7552801

$1.59

3

Kit, Commutator Cap Asm. [Incl. 4]

2200758

$82.39

4

Kit, Brush & Spring

2200759

$59.99

4

ASM., BRUSH & SCREW

-------

Unavailable

4

ASM., BRUSH

-------

Unavailable

4

BUSHING, INSULATION

-------

Unavailable

4

WASHER, INSULATION

-------

Unavailable

4

Nut

-------

Unavailable

5

Nut

7542153

$1.59

6

Screw

7516823

$3.19

7

Bracket, Starter, Rear

5244250

$389.99

8

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

9

Bracket, Starter, Front

5245467

Unavailable

10

Washer, Spring Lock

7552603

$1.49

11

Screw

7512492

$1.49

12

Screw

7517322

$2.39

13

Motor, Starter, Domestic

4170006

Unavailable

14

Kit, Armature Asm.

2200756

$169.99

15

Kit, Drive Hardware

2200755

Unavailable

15

WASHER, CURVED SPRING

-------

Unavailable

15

Washer, Thrust

-------

Unavailable

15

SPACER

-------

Unavailable

15

SPRING, ANTIDRIFT

-------

Unavailable

15

PINION, STOP

-------

Unavailable

15

RING, LOCK

-------

Unavailable

15

COVER, DUST

-------

Unavailable

15

Kit, Drive Hardware

2200755

Unavailable

15

WASHER, CURVED SPRING

-------

Unavailable

15

Washer, Thrust

-------

Unavailable

15

SPACER

-------

Unavailable

15

SPRING, ANTIDRIFT

-------

Unavailable

15

PINION, STOP

-------

Unavailable

15

RING, LOCK

-------

Unavailable

15

COVER, DUST

-------

Unavailable

16

Kit, Drive Cap Asm.

2200757

$59.99

17

Kit, Drive Asm.

2200754

Unavailable

17

PLATE, DRIVE

-------

Unavailable

17

PINION

-------

Unavailable

18

Kit, Screw

2200753

$29.99

18

BOLT, THRU

-------

Unavailable

19

Switch, Magnetic [Incl. 1,2]

4010930

$60.70
