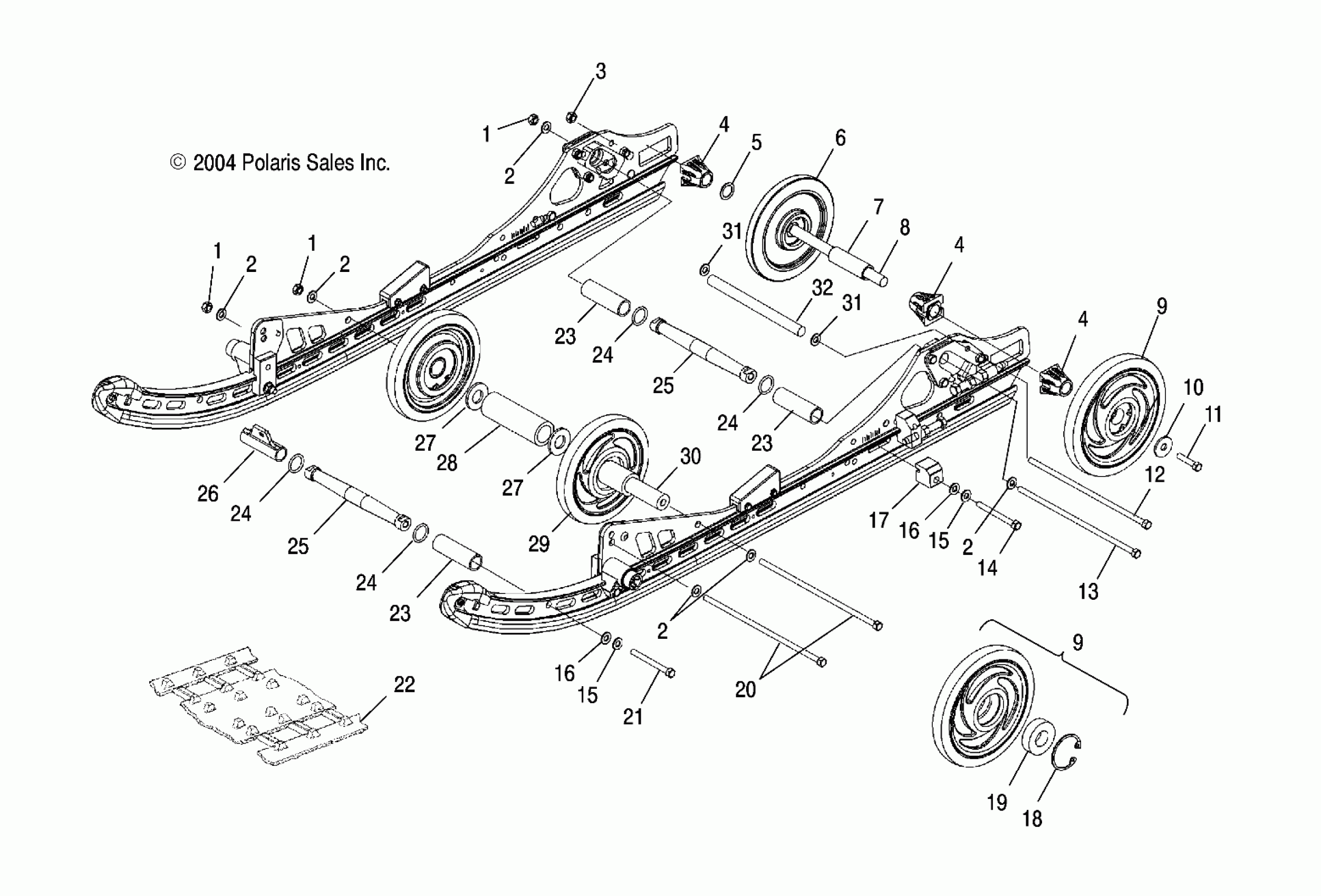

Polaris 600 CLASSIC - S05ND6ES REAR SUSPENSION (M-10) - S05ND6ES (4992689268B09) Diagram

#

Description
Price

1

Nut, Nylok

7542439

$1.49

1

Nut, Nylok

7542439

$1.49

1

Nut, Nylok

7542439

$1.49

2

Washer, Flat

7555806

$1.49

2

Washer, Flat

7555806

$1.49

2

Washer, Flat

7555806

$1.49

2

Washer, Flat

7555806

$1.49

2

Washer, Flat

7555806

$1.49

3

Nut, Nylok

7547064

Unavailable

4

SPACER-IDLER

5432535

$11.99

4

SPACER-IDLER

5432535

$11.99

4

SPACER-IDLER

5432535

$11.99

5

BUSHING

7555918

$1.59

6

Asm., Idler Wheel

1590307

$48.56

7

SPACER-IDLER, LONG

5333285

$11.99

8

SHAFT, IDLER

5020744

$59.99

9

Asm., Idler Wheel, Scrolled, Silver

1590305-244

Unavailable

9

Asm., Idler Wheel, Scrolled, Silver

1590305-244

Unavailable

10

WASHER, BELLE

7556130

$6.39

11

BOLT

7517731

$1.49

12

Screw

7517896

Unavailable

13

Screw

7517821

Unavailable

14

Screw

7517856

Unavailable

15

Washer, Spring Lock

7552603

$1.49

15

Washer, Spring Lock

7552603

$1.49

16

WASHER

7556042

Unavailable

16

WASHER

7556042

Unavailable

17

Block, Shock Pivot Adjust

5132583

$16.39

18

RING-RETAINING

7710444

$8.79

19

BEARING

3514384

$19.84

20

SCREW

7517921

$23.99

21

Screw

7517857

$5.59

22

CLIP, GUIDE

5222840

Unavailable

22

Track, 1 Inch

5411994

Unavailable

23

Spacer, Shock Centering

5333902

$34.99

23

Spacer, Shock Centering

5333902

$34.99

23

Spacer, Shock Centering

5333902

$34.99

24

O-RING

5411965

$3.63

24

O-RING

5411965

$3.63

24

O-RING

5411965

$3.63

24

O-RING

5411965

$3.63

25

Shaft, Tapered

5132793

$89.03

25

Shaft, Tapered

5132793

$89.03

26

Mount, Limiter Strap, Attachment, Lower

5132586

Unavailable

27

Bushing

7556301

$3.19

27

Bushing

7556301

$3.19

28

Spacer, Bogie, Inner

5330394

Unavailable

29

RET.RING-TRUARC (1 per)

7718407

$4.79

29

BEARING (1 per)

3514303

$11.99

29

Asm., Wheel, Silver

1541530-244

Unavailable

29

Spacer (1 per)

5132071

$16.67

30

Shaft

5132490

Unavailable

31

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

31

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

32

Tube

5333477-067

$15.67
