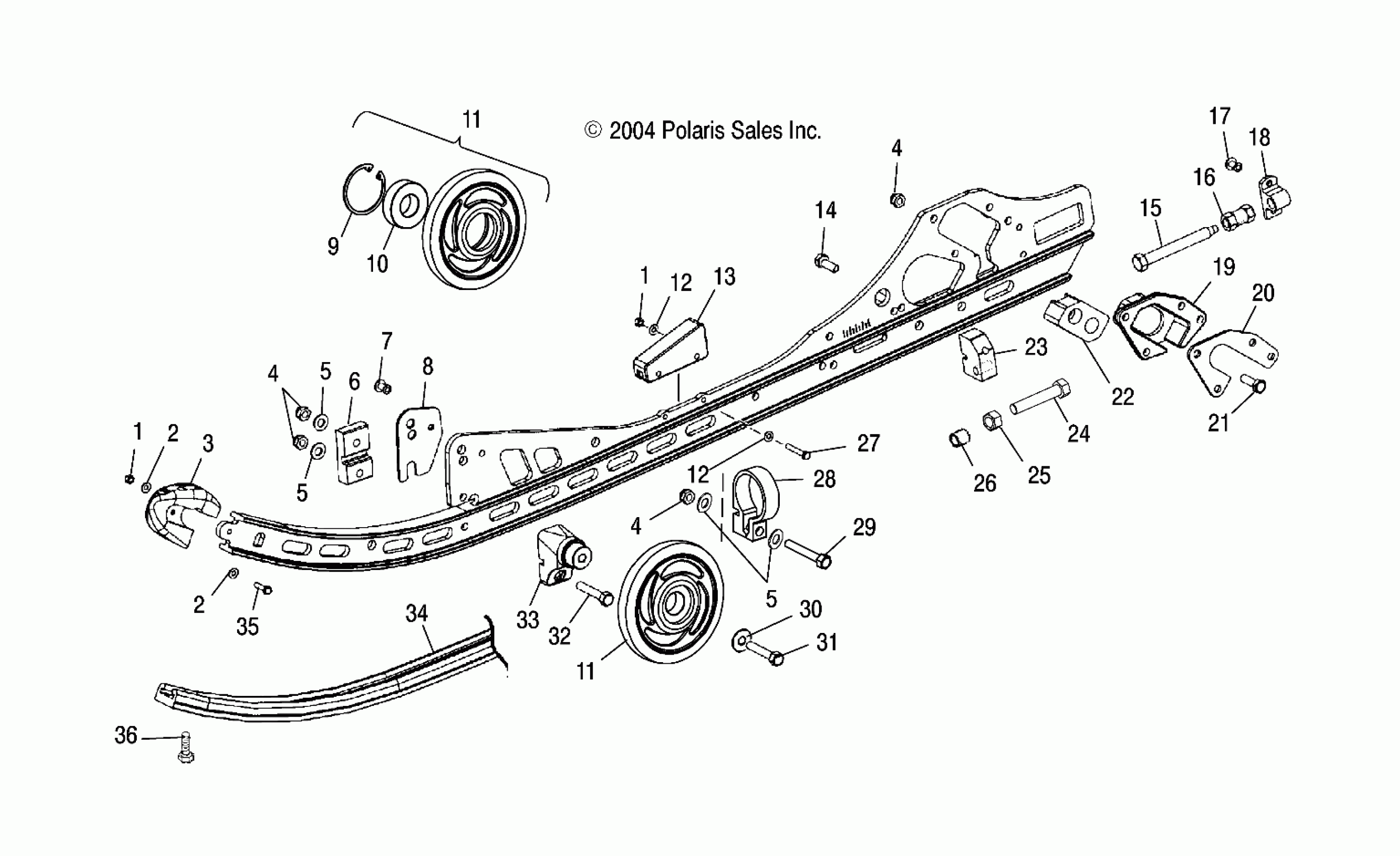

Polaris 600 CLASSIC - S05ND6ES RAIL MOUNTING (M-10) - S05ND6ES (4992689268B08) Diagram

#

Description
Price

-

Asm., Rail, M-10, Natural, LH [Incl. 1-3,13,17,18,27,35]

1541782-309

$319.99

-

Asm., Rail, M-10, Natural, RH [Incl. 1-3,13,17,18,27,35]

1541783-309

$298.99

1

Nut, Nylok

7541925

$1.49

1

Nut, Nylok

7541925

$1.49

2

WASHER

7555792

$4.79

2

WASHER

7555792

$4.79

3

Cap, Rail Tip

5434374

$20.22

4

NUT-5/16-18 NYLOK-Y

7542324

$1.49

4

NUT-5/16-18 NYLOK-Y

7542324

$1.49

4

NUT-5/16-18 NYLOK-Y

7542324

$1.49

5

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

5

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

5

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

6

Block, Rail Support

5132577

Unavailable

7

RIVET

7661845

$1.49

8

Plate, Rail Support

5244651

$9.84

9

RET.RING-TRUARC [1 PER WHEEL]

7718407

$4.79

10

BEARING [1 PER WHEEL]

3514303

$11.99

11

Asm., Wheel, Scrolled, Bright Silver Metallic [Incl. 9,10]

1590275-244

Unavailable

11

Asm., Wheel, Scrolled, Bright Silver Metallic [Incl. 9,10]

1590275-244

Unavailable

12

Washer, Flat

7555783

$3.99

12

Washer, Flat

7555783

$3.99

13

Bumper, Rail Jounce

5411947

$12.39

14

Screw

7512392

$4.79

15

Screw

7517773

$28.56

16

Nut, Tension Adjust

5132712

Unavailable

17

RIVET

7621501

$2.39

18

Block, Idler Bolt Adjust

5132611

$34.71

19

Guide, Slider, LH

5631188

$51.59

19

Guide, Slider, RH

5631189

Unavailable

20

Plate, Coupler Block

5245045

Unavailable

21

Bolt

7512310

$2.39

22

Block, Slider, Long, M-10, LH

5434239

$19.60

22

Block, Slide, Long, M-10, RH

5434240

$16.47

23

Block, Shock Pivot Threaded

5132584

$45.99

24

Bolt

7515511

$3.99

25

NUT

7542404

$1.59

26

Spacer

5133009

$2.22

27

Bolt

7511967

$5.43

28

CLAMP, RESERVOIR

5132832

$23.99

29

BOLT

7515319

$4.79

30

Washer, Spring

7556179

$7.99

31

BOLT

7515382

$2.39

32

Bolt

7512329

$3.99

33

Block, Wheel Mount, LWT

5631065

$28.32

34

Slider, XL, Service, Basic

5521571

$36.41

35

Screw

7511975

Unavailable

36

Screw

7515199

$1.49
