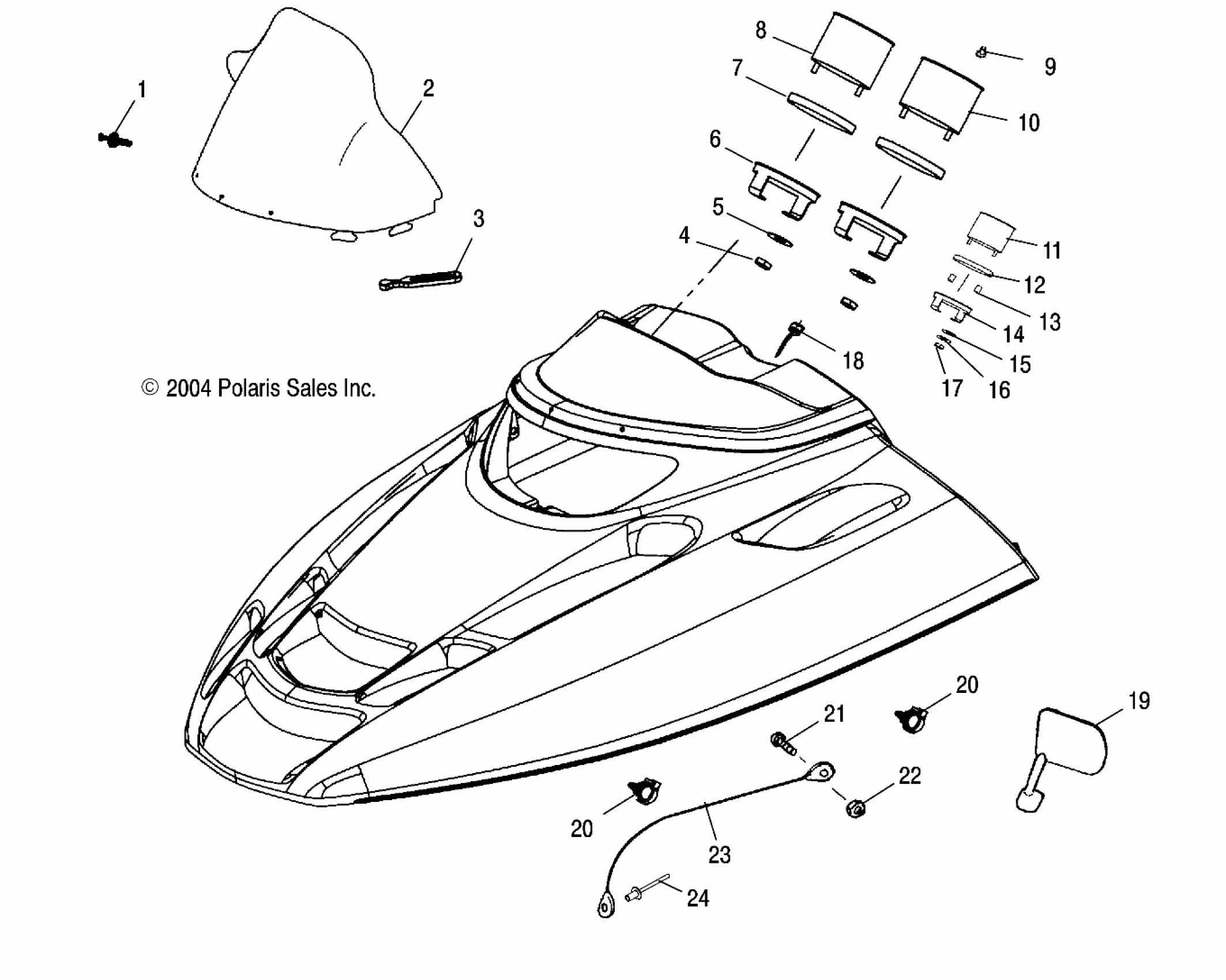

Polaris 600 CLASSIC - S05ND6ES HOOD - S05ND6ES (4992689268A10) Diagram

#

Description
Price

1

RIVET

7621509

$1.49

2

Windshield, Flared, Smoke, 15 Inch

5435495

Unavailable

3

RETAINER, WINDSHIELD

5410970

$1.49

4

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

5

Washer, Flat

3280157

$2.39

6

Bracket, Speedometer/Tachometer

3280210

$28.32

7

Cushion, Rubber

3280209

$3.99

8

Bulb, Taillight

4030015

$4.03

8

Asm., Tachometer

3280413

Unavailable

9

Knob, Trip Odometer

3280186

$9.70

10

Bulb, Replacement

4030015

$4.03

10

Asm., Speedometer

3280411

$339.98

11

Asm., Gauge Fuel

3280410

$106.35

11

Fuse

4060139

Unavailable

12

Cushion

3280230

$3.41

13

Spacer, Fuel Gauge Bracket

3280228

$2.81

14

Bracket, Fuel Gauge

3280229

Unavailable

15

Washer, Flat

3280231

$0.24

16

Washer, Split Lock

3280233

Unavailable

17

Nut

3280232

$1.49

18

Cable, Speedometer

3280385

$93.08

19

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

19

Washer, Flat

7556088

$4.79

19

Asm., Mirror, LH

2632246-070

$89.99

19

Asm., Mirror, RH

2632247-070

$89.99

20

Clip

4010589

$2.39

20

Clip

4010589

$2.39

21

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

22

Nut, Nylok

7541925

$1.49

23

Cable, Hood Retainer

7080521

$24.27

24

RIVET-3/16-.090-.290

7661637

$1.49
