Description

Price

1

Bracket, Chassis/Resonator

1261296-029

Unavailable

2

SPRING-EXHAUST

7041687

$5.65

2

SPRING-EXHAUST

7041687

$5.65

2

SPRING-EXHAUST

7041687

$5.65

2

SPRING-EXHAUST

7041687

$5.65

3

Resonator

1261130-029

$649.99

4

Washer

7555904

$1.49

5

Boot, Exhaust Outlet

5411684

Unavailable

6

RIVET

7621467

$1.49

7

Gasket, Exhaust

5811838

$8.89

8

Manifold

1261046-029

Unavailable

9

Screw

7517322

$2.39

9

Screw

7517322

$2.39

10

Seal, Exhaust

3610046

$36.41

11

Spring, Exhaust, S.S.

7042332

$4.84

11

Spring, Exhaust, S.S.

7042332

$4.84

12

NUT, FLANGED

7547180

$2.39

13

Dampener, Vibration

5433576

$11.99

14

SCREW

7517935

$2.39

15

Clamp, .44 x 3.75

7080812

$19.99

15

Clamp, .44 x 4.25

7080813

$3.99

15

Clamp, .44 x 6.50

7080811

$11.99

16

Asm., Tuned Pipe

1261007

Unavailable

16

Pipe, Tuned

1261048-029

$504.99

16

Cover, Tuned Pipe, Top

5244398

Unavailable

16

Cover, Tuned Pipe, Bottom

5244399

Unavailable

16

Matte, Sound

5830198

Unavailable

16

Matte, Sound, Top

5830207

$12.39

17

RIVET-3/16-.090-.290

7661637

$1.49

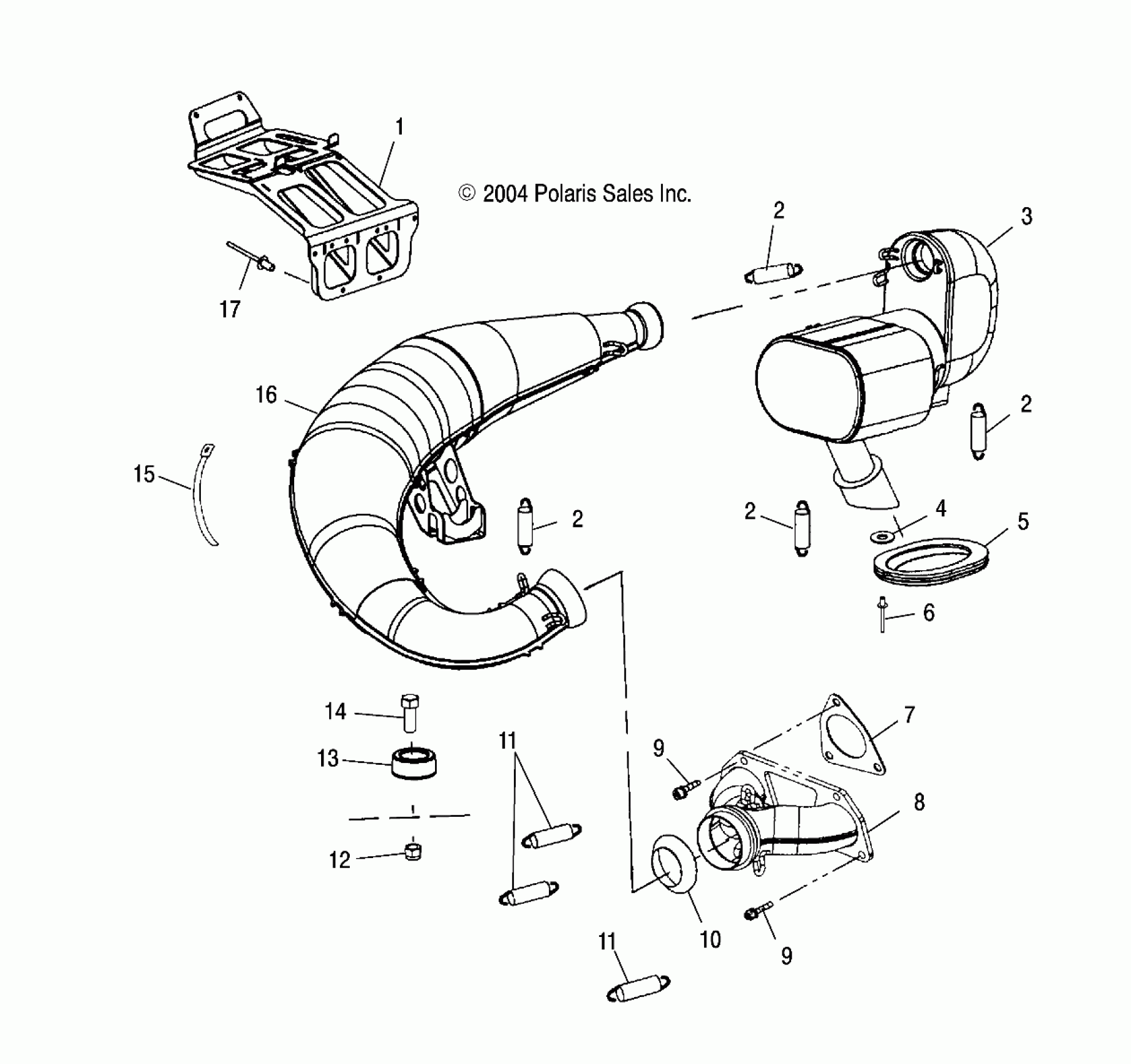

Polaris 600 CLASSIC - S05ND6ES EXHAUST - S05ND6ES (4992689268C04) Diagram

Bracket, Chassis/Resonator

SPRING-EXHAUST

SPRING-EXHAUST

SPRING-EXHAUST

SPRING-EXHAUST

Resonator

Washer

Boot, Exhaust Outlet

RIVET

Gasket, Exhaust

Manifold

Screw

Screw

Seal, Exhaust

Spring, Exhaust, S.S.

Spring, Exhaust, S.S.

NUT, FLANGED

Dampener, Vibration

SCREW

Clamp, .44 x 3.75

Clamp, .44 x 4.25

Clamp, .44 x 6.50

Asm., Tuned Pipe

Pipe, Tuned

Cover, Tuned Pipe, Top

Cover, Tuned Pipe, Bottom

Matte, Sound

Matte, Sound, Top

RIVET-3/16-.090-.290
