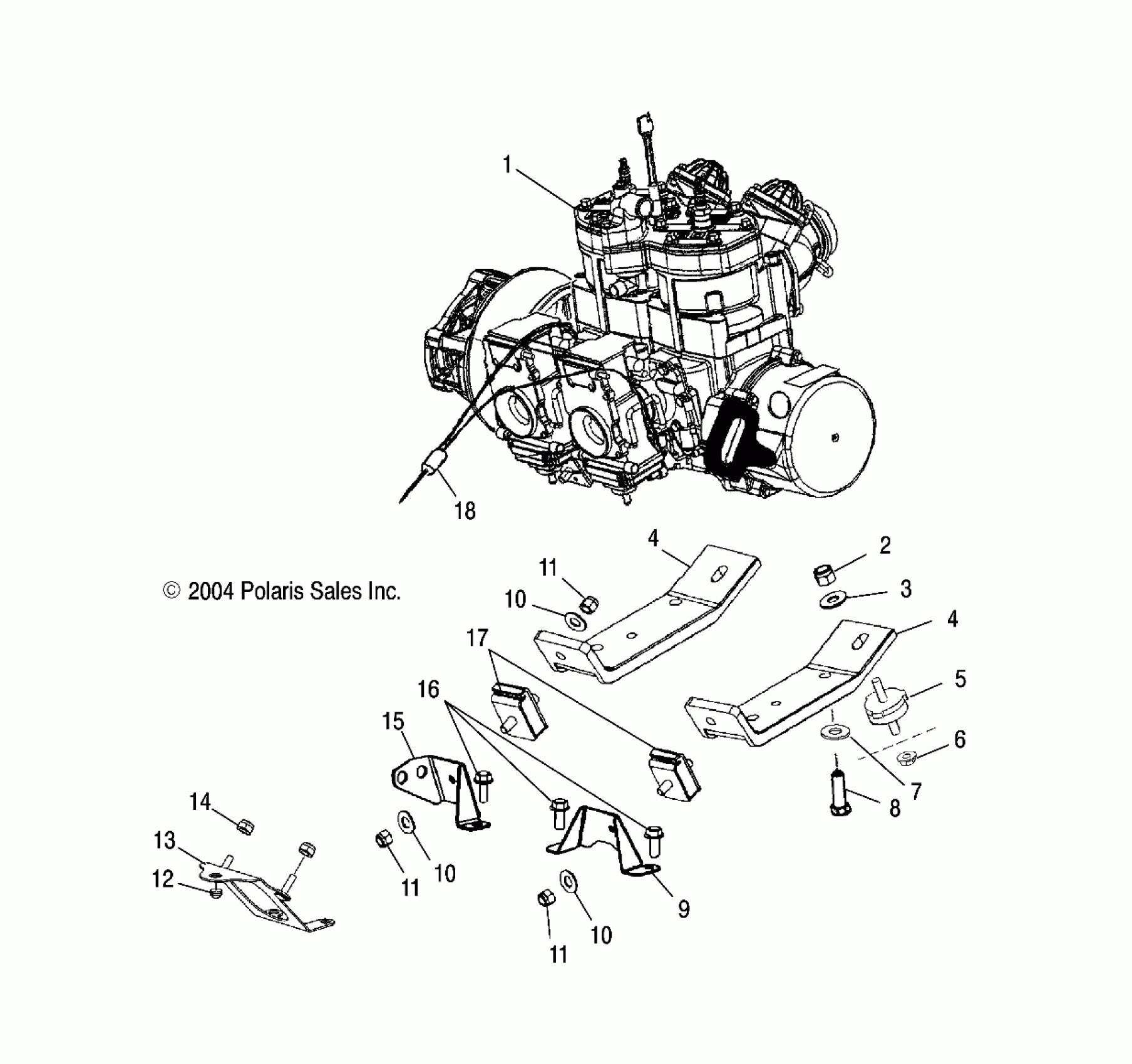

Polaris 600 CLASSIC - S05ND6ES ENGINE MOUNTING - S05ND6ES (4992689268C07) Diagram

#

Description
Price

1

Kit, Short Block, S604404 NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is required for

2202515

Unavailable

2

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

3

Washer, Flat

7555893

$1.49

4

Strap, Engine Mount, LH

5245465

$74.39

4

Strap, Engine Mount, RH

5246382

$257.99

4

Strap, Engine Mount, LH

5245465

$74.39

4

Strap, Engine Mount, RH

5246382

$257.99

5

Mount, Engine

3021220

Unavailable

6

NUT, FLANGED

7547180

$2.39

7

Washer, Spring Lock

7553101

$3.99

8

Screw

7512539

$3.99

9

Bracket, Engine Mount, RH

5245044

Unavailable

10

Washer, Flat

7555806

$1.49

10

Washer, Flat

7555806

$1.49

10

Washer, Flat

7555806

$1.49

11

NUT, FLEXLOC

7547008

$6.39

11

NUT, FLEXLOC

7547008

$6.39

11

NUT, FLEXLOC

7547008

$6.39

12

Plug

5410012

Unavailable

13

Bracket, Fuel Pump

1014392

$12.39

14

Nut, Nylok

7542122

$1.49

15

Bracket, Engine Mount, LH

1013397

$24.27

16

Screw

7517854

$5.59

17

Mount, Engine

3021206

$60.70

18

CABLE, THROTTLE [SEE HANDLEBAR PG. B4, REF. 21]

-------

Unavailable
