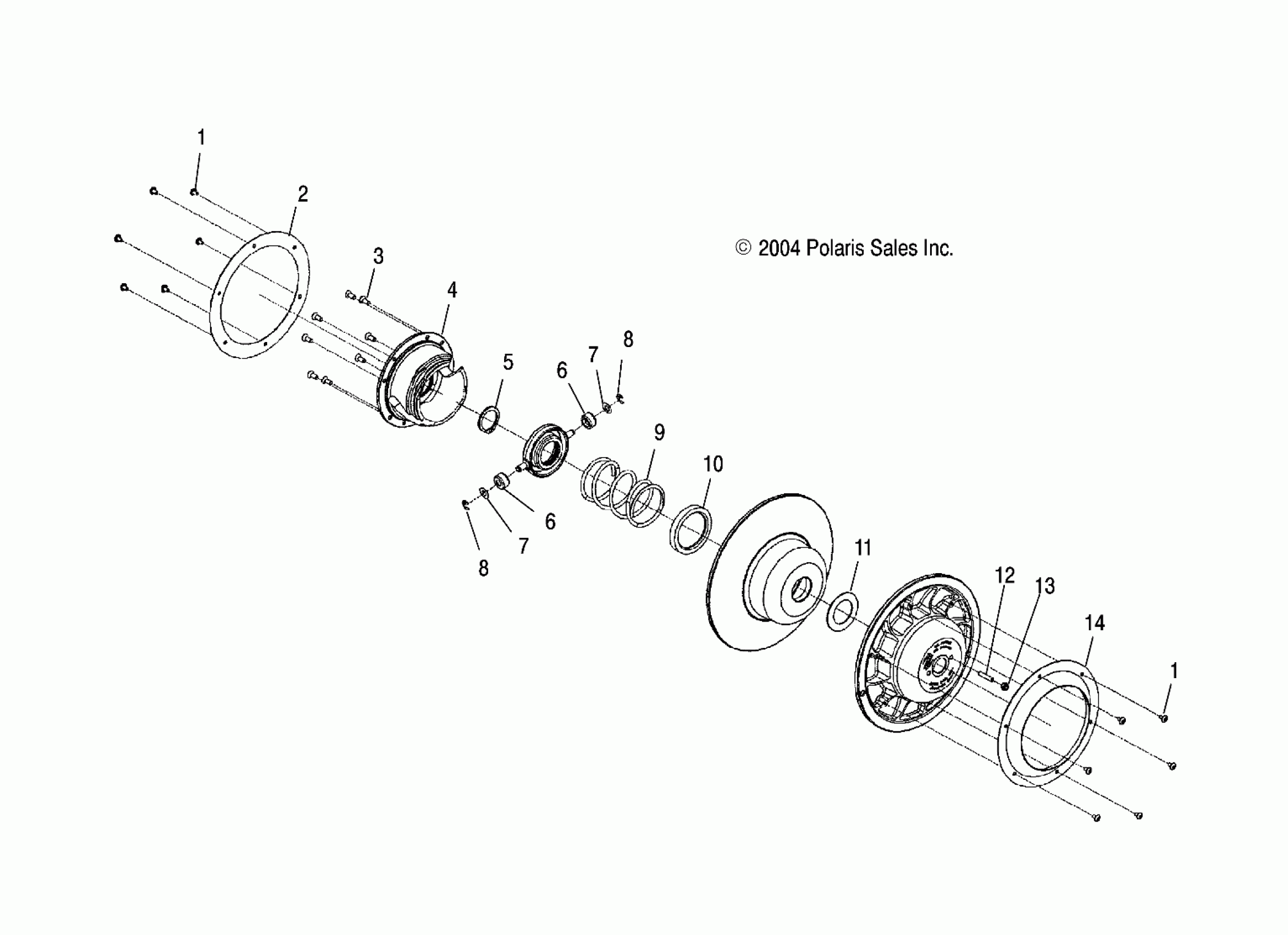

Polaris 600 CLASSIC - S05ND6ES DRIVEN CLUTCH - S05ND6ES (4992689268B14) Diagram

Description

Price

Asm., Driven Clutch, Basic, 216 [Incl. 5-8,10-13]

1322433

Unavailable

Screw

7518023

$4.03

Screw

7518023

$4.03

Plate, Windage

5246216

$20.48

Screw

3233996

Unavailable

Ramp, Driven, 58/42-.36

5134132

Unavailable

RING, RETAINING

7710522

$13.59

ROLLER

5434534

$48.56

ROLLER

5434534

$48.56

WASHER, THRUST

7556226

$5.65

WASHER, THRUST

7556226

$5.65

RET.E-RING-E T.375-TEAM#130059

7710523

$3.49

RET.E-RING-E T.375-TEAM#130059

7710523

$3.49

Spring, Driven Clutch, LH, Red/Blue

7043057

$48.56

WASHER, THRUST

7556227

$23.99

Spacer

3234033

Unavailable

Screw

7518024

Unavailable

Nut, FLEXLOC

7542103

$5.59

Plate, Windage

5246217

Unavailable
