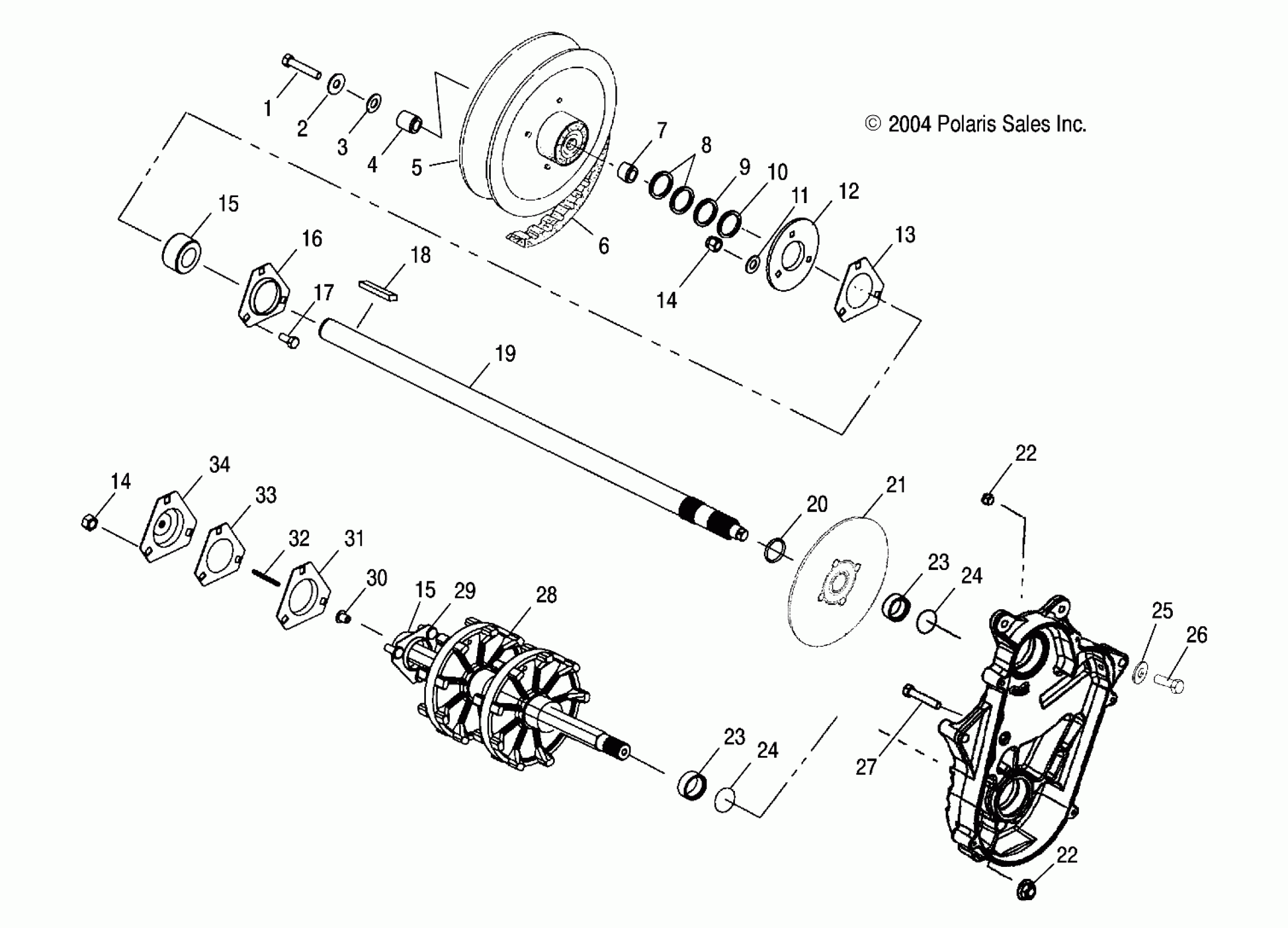

Polaris 600 CLASSIC - S05ND6ES DRIVE TRAIN - S05ND6ES (4992689268C02) Diagram

#

Description
Price

1

SCREW

7517581

$1.59

2

WASHER, FLAT

7555701

$3.99

3

Washer, Flat

7555734

Unavailable

4

Spacer

5020913

Unavailable

5

ASM., DRIVEN CLUTCH [SEE DRIVEN CLUTCH PG. B14 FOR DETAILS]

-------

Unavailable

6

Belt, Drive

3211080

$139.99

7

Spacer

5020837

$24.99

8

WASHER

7555917

$2.39

9

WASHER

7555864

Unavailable

10

Bushing

7556509

Unavailable

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

12

Fitting, Lubrication

7080561

$4.79

12

Flange w/Grease Zerk

5241359

$32.37

13

Gasket, Jackshaft

5811095

$2.41

14

NUT-5/16-18 NYLOK-Y

7542324

$1.49

14

NUT-5/16-18 NYLOK-Y

7542324

$1.49

15

BEARING

3514525

$31.99

15

BEARING

3514525

$31.99

16

FLANGETTE

5222751

$16.44

17

Bolt, Carriage

7512377

$4.79

18

Key

7721116

$12.94

19

Asm., Jackshaft [Incl. 15,20]

1332283

$159.99

20

RING, RETAINING

7710422

$3.99

21

Kit, Brake Disc

2202493

Unavailable

22

Nut

7542423

$3.99

22

Nut

7542423

$3.99

23

SLEEVE, SEAL

5020588

$23.99

23

SLEEVE, SEAL

5020588

$23.99

24

O-RING

5410613

$1.99

24

O-RING

5410613

$1.99

25

Washer

7558403

$4.79

26

Screw

7518002

$3.03

27

Bolt, Carriage

7515428

$4.79

28

Asm., Drive Shaft [Incl. 29,30]

1590346

$411.49

29

ASM., FLANGETTE W/SCREWS

1012945

$114.99

30

Bushing, Speedometer, Metal

3280019

$11.99

31

Flangette

5243529

$13.75

32

Key, Speedometer, Square

3280017

$13.75

33

Gasket, Drive Adaptor

5830012

$2.41

34

Adaptor w/Zerk, Drive

3280116

$101.17
