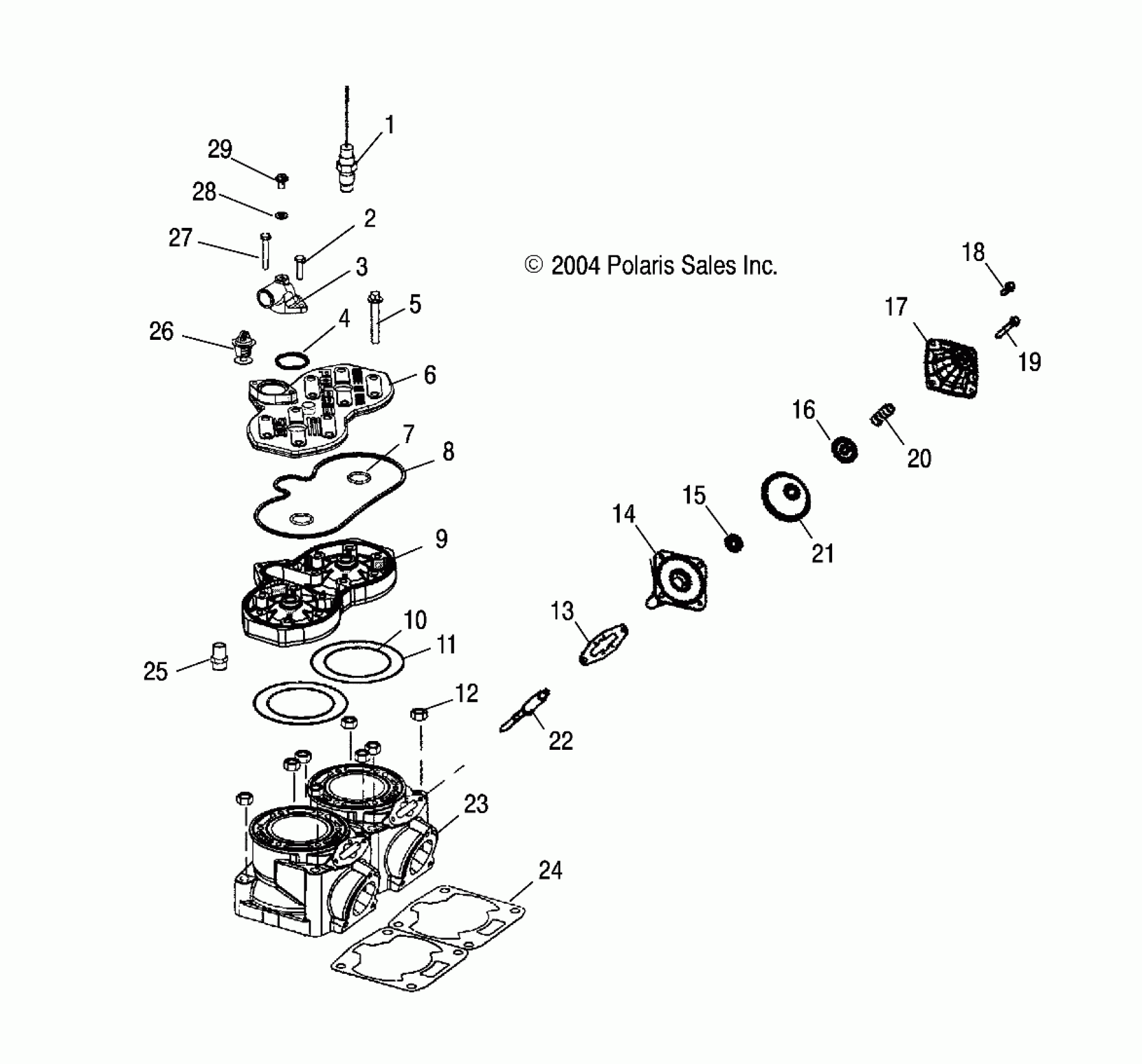

Polaris 600 CLASSIC - S05ND6ES CYLINDER - S05ND6ES (4992689268C09) Diagram

#

Description
Price

1

Sensor, Thermister

4010398

$36.41

2

SCREW

7516822

$2.39

3

Cover, Thermostat

5631391

Unavailable

4

O-Ring

5411521

$24.19

5

SCREW

7517533

$4.79

6

Cover, Head

5631425-366

Unavailable

7

O-RING

5411411

$1.49

8

Seal, Rubber Head

5411465

$32.37

9

Head, Cylinder

3021322

Unavailable

10

O-RING

5410932

$20.22

11

O-RING

5411359

$15.99

12

NUT

7547013

$1.99

13

Gasket

5812350

$6.46

14

Base, Exhaust Valve

1202216

Unavailable

15

Washer

5132950

Unavailable

16

Cap/Nut

5631381

$33.87

17

ASM., HOUSING W/BUSHING

1202640

$15.99

18

SCREW

7516820

$5.59

19

SCREW

7517932

$3.99

20

Spring, Compression

7041786-08

Unavailable

21

Bellows

5410000

$44.51

22

Valve, Guillotine

5133380

Unavailable

23

Cylinder

3021333

$531.75

24

Gasket, Cylinder Base

5811916

$24.99

25

Fitting

7052234

$39.99

26

Thermostat

7052258

$48.56

27

SCREW

7516818

$5.59

28

WASHER, FLAT

7555998

$1.49

29

SCREW

7517679

$13.59
