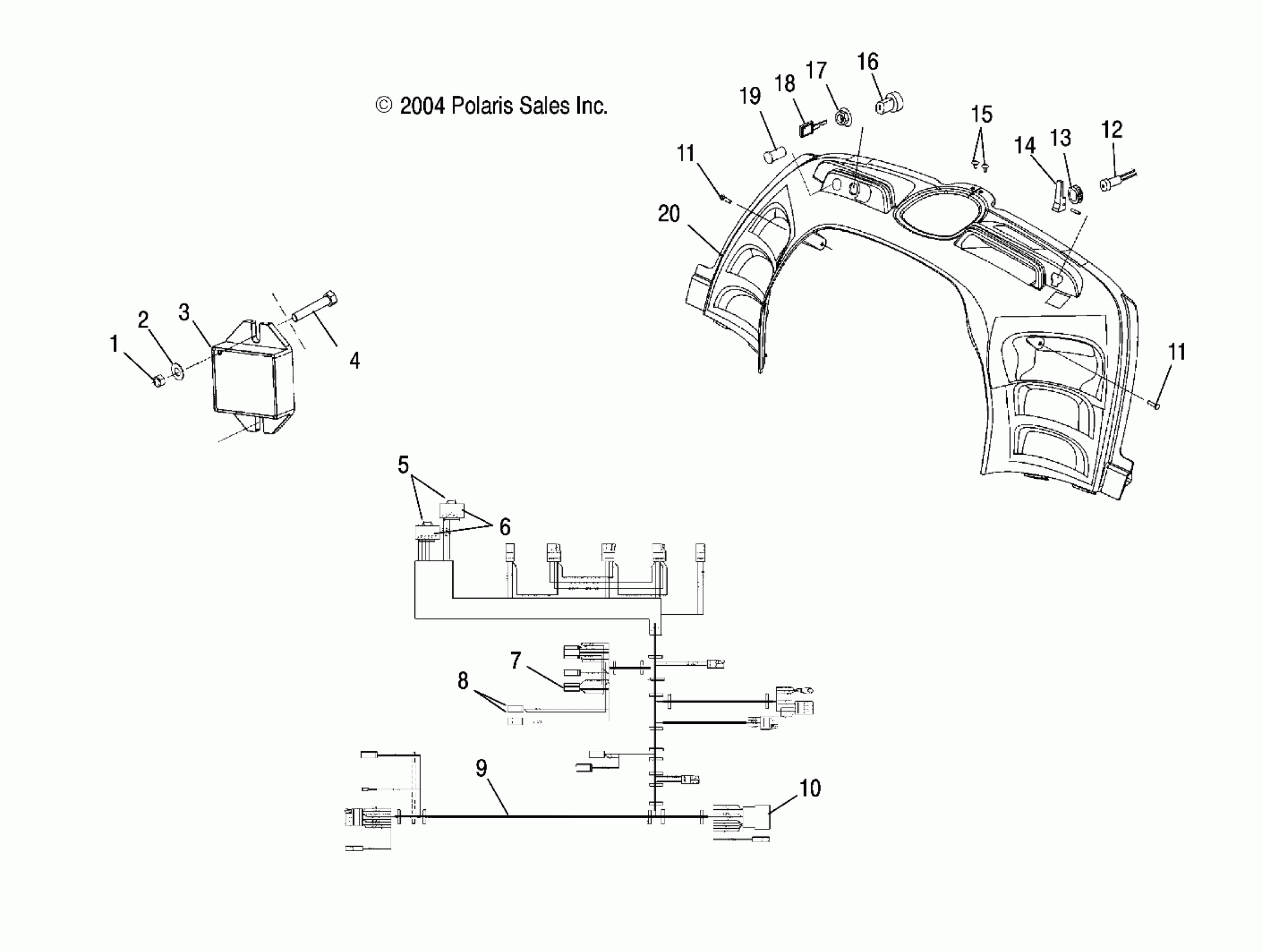

Polaris 600 CLASSIC - S05ND6ES CONSOLE - S05ND6ES (4992689268A14) Diagram

#

Description
Price

1

Nut, Nylok

7541925

$1.49

2

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

3

Regulator, AC/DC 14.3V

4010794

$116.17

4

Screw

7517263

Unavailable

5

Housing, Connector

4010193

$8.79

6

Socket

4010192

Unavailable

7

HOUSING

4020063

$3.19

8

Housing, 1 Circuit

4020153

Unavailable

9

Harness, Main

2461146

Unavailable

10

Housing

4020057

$3.51

11

Screw

7515199

$1.49

11

Screw

7515199

$1.49

12

Cable, Choke [Incl. 13,14]

7080946

$89.03

13

Nut, Choke

5432944

$8.79

14

Lever, Choke [Incl. Pin]

5432943

Unavailable

15

CLIP-PLASTIC DART, NYLON

7670088

$1.59

16

Kit, Ignition Switch

2201614

$89.03

17

Nut, Ignition

7547035

$8.79

18

Cap w/Key NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code found o

5410611

Unavailable

19

Receptacle, Pod Mount

4010638

$24.27

20

Console w/ACC

5434483-070

Unavailable
