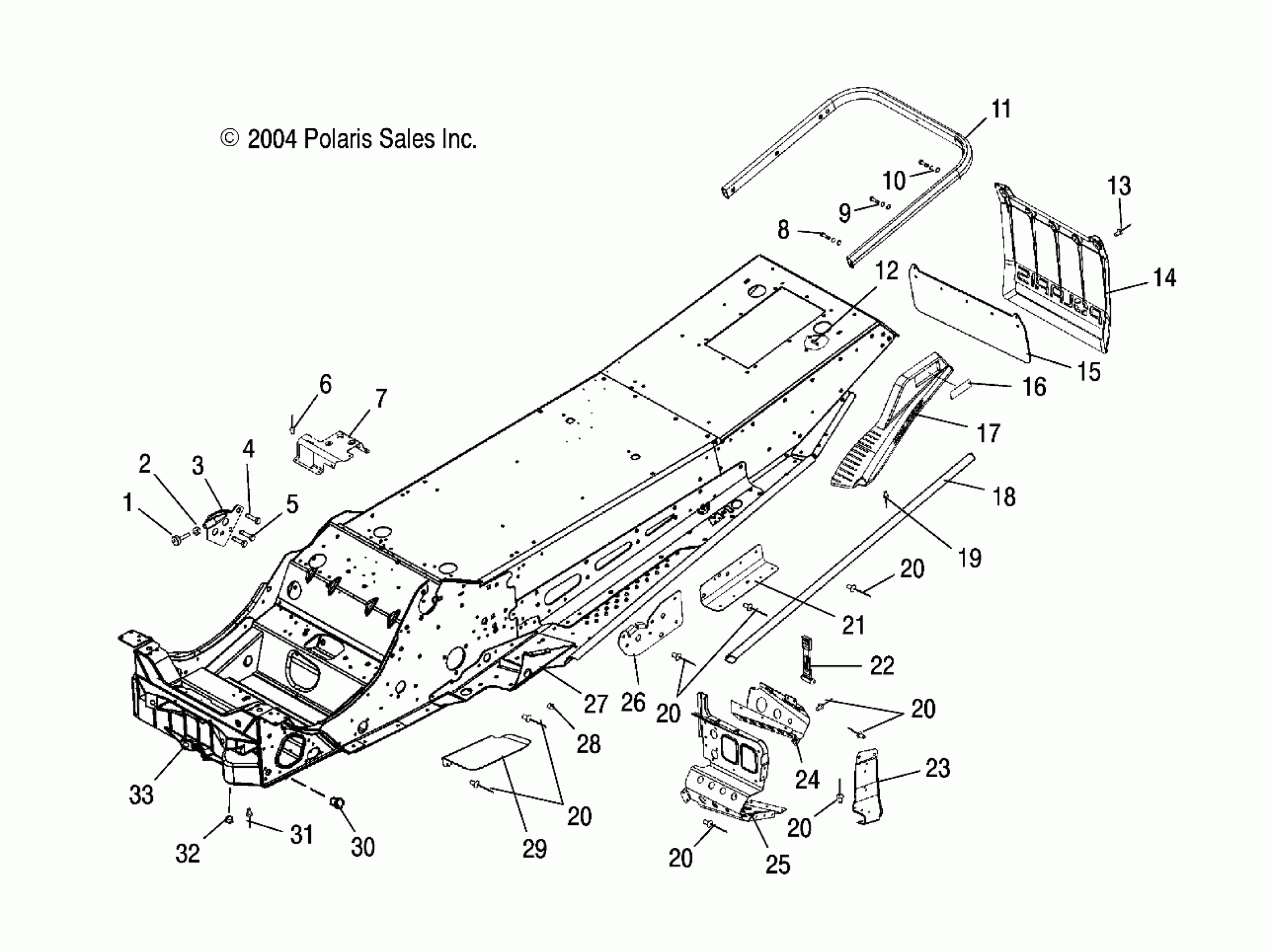

Polaris 600 CLASSIC - S05ND6ES CHASSIS - S05ND6ES (4992689268A03) Diagram

#

Description
Price

-

Asm., Chassis, M-10

1014172-1156

$1,299.99

1

Stop, Torque

3021104

$20.22

2

NUT

7542404

$1.59

3

Stop, Torque

1013379

Unavailable

4

SCREW

7517632

$5.59

5

Screw

7517854

$5.59

6

Rivet

7621432

$1.49

7

Bracket, Oil Tank/Hose Support

5246330

$13.19

8

SCREW

7512232

$1.49

9

WASHER, SPRING LOCK

7552801

$1.59

10

Washer, Flat

7558301

$1.49

11

Bumper, Rear, Unpainted

2632165-309

Unavailable

12

Screw

7517441

$2.39

13

RIVET

7621418

$1.49

14

Flap, Snow, Edge, Long, Black/White

5434847-1038

$139.99

15

Backer, Snow Flap

5812430

Unavailable

16

Reflector, Red

2670133

$5.75

17

Skirt, Snow/Reflector, LH

2632443-070

$64.75

17

Skirt, Snow/Reflector, RH

2632444-070

$55.99

18

Brace, Tunnel Roll

5245118-067

$22.23

19

RIVET

7621472

$1.49

20

RIVET-3/16-.090-.290

7661637

$1.49

20

RIVET-3/16-.090-.290

7661637

$1.49

20

RIVET-3/16-.090-.290

7661637

$1.49

20

RIVET-3/16-.090-.290

7661637

$1.49

20

RIVET-3/16-.090-.290

7661637

$1.49

20

RIVET-3/16-.090-.290

7661637

$1.49

21

Brace, Tunnel, Lower, LH

5244997-067

$19.83

21

Brace, Tunnel, Lower, RH

5244998-067

$19.83

22

STRAP-AIRBOX TOP

5433150

$24.27

23

Support, Footrest, LH

5246310-067

$19.68

23

Support, Footrest, RH

5246311-067

Unavailable

24

Mount, Console, Toe Clip, LH

5245457-067

Unavailable

24

Mount, Console, Toe Clip, RH

5245458-067

Unavailable

25

Footrest, LH

5245288-067

Unavailable

25

Footrest, RH

5247205-067

Unavailable

26

Pad, Suspension, Front, LH

5244999-067

Unavailable

26

Pad, Suspension, Front, RH

5245001-067

$24.27

27

Kit, Trailing Arm Mount, LH

2202059

$213.00

27

Kit, Trailing Arm Mount, RH

2202598

$124.99

28

PLUG, BARBED

7081085

$7.27

29

Guard, Belt

5246066

Unavailable

30

PLUG, HOLE

7080416

$5.65

31

Rivet

7661130

$1.49

32

Plug, Hole

7081076

$3.22

33

Bulkhead, Front

5132292

$115.99
