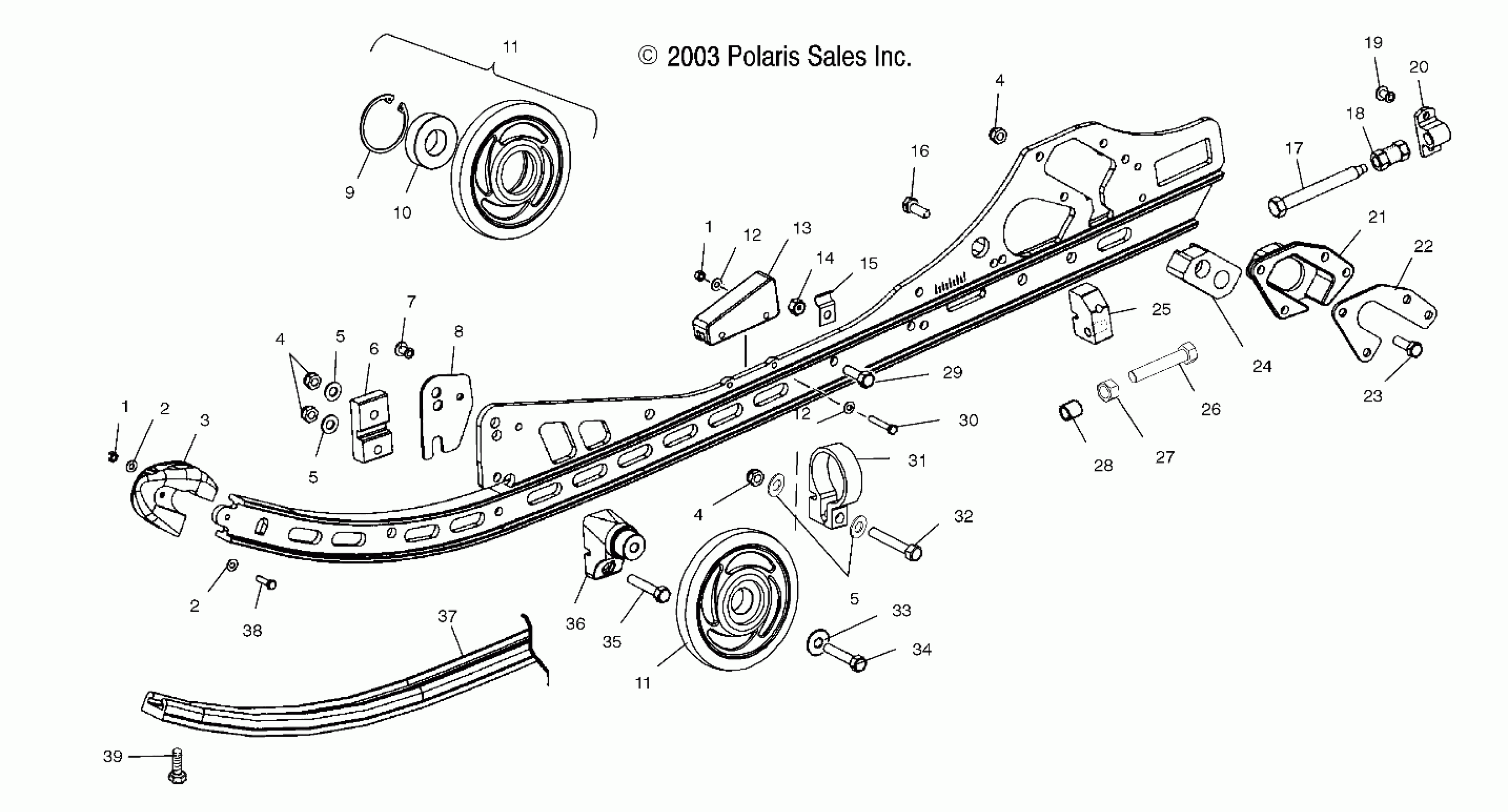

Polaris 600 CLASSIC - S04ND6ES RAIL MOUNTING (M-10) - S04ND6ES/ESA/ESB (4988638863B08) Diagram

#

Description
Price

-

Asm., Rail, M-10, Natural, LH [Incl. 1-3,13,19,20,30,38]

1541782-309

$319.99

-

Asm., Rail, M-10, Natural, RH [Incl. 1-3,13,19,20,30,38]

1541783-309

$298.99

-

Asm., Rail, M-10, ACE, LH [Incl. 1-3,13,19,20,30,38]

1541901-309

$319.99

-

Asm., Rail, M-10, ACE, RH [Incl. 1-3,13,19,20,30,38]

1541902-309

$278.99

1

Nut, Nylok

7541925

$1.49

1

Nut, Nylok

7541925

$1.49

2

WASHER

7555792

$4.79

2

WASHER

7555792

$4.79

3

Cap, Rail Tip

5434374

$20.22

4

NUT-5/16-18 NYLOK-Y [Qty. 10 for ACE]

7542324

$1.49

4

NUT-5/16-18 NYLOK-Y [Qty. 10 for ACE]

7542324

$1.49

4

NUT-5/16-18 NYLOK-Y [Qty. 10 for ACE]

7542324

$1.49

5

WASHER-.344X.688X.063 FL-Y [Qty. 4 for ACE]

7558402

$1.49

5

WASHER-.344X.688X.063 FL-Y [Qty. 4 for ACE]

7558402

$1.49

5

WASHER-.344X.688X.063 FL-Y [Qty. 4 for ACE]

7558402

$1.49

6

Block, Rail Support

5132577

Unavailable

7

RIVET

7661845

$1.49

8

Plate, Rail Support

5244651

$9.84

9

RET.RING-TRUARC [1 PER WHEEL]

7718407

$4.79

10

BEARING [1 PER WHEEL]

3514303

$11.99

11

Asm., Wheel, Scrolled, Bright Silver Metallic [Incl. 9,10]

1590275-244

Unavailable

11

Asm., Wheel, Scrolled, Bright Silver Metallic [Incl. 9,10]

1590275-244

Unavailable

12

Washer, Flat

7555783

$3.99

12

Washer, Flat

7555783

$3.99

13

LINER-BUMPER [M-10 ACE]

5432946

$9.70

13

Bumper, Rail Jounce [M-10]

5411947

$12.39

13

Bumper [M-10 ACE]

5412336

$9.84

14

Nut [M-10 ACE]

7547004

$4.79

15

Clip [M-10 ACE]

7080963

$2.39

16

Screw [M-10 Only]

7512392

$4.79

17

Screw

7517773

$28.56

18

Nut, Tension Adjust

5132712

Unavailable

19

RIVET

7621501

$2.39

20

Block, Idler Bolt Adjust

5132611

$34.71

21

Guide, Slider, LH

5631188

$51.59

21

Guide, Slider, RH

5631189

Unavailable

22

Plate, Coupler Block

5245045

Unavailable

23

Bolt

7512310

$2.39

24

Block, Slider, Long, M-10, LH

5434239

$19.60

24

Block, Slide, Long, M-10, RH

5434240

$16.47

25

Block, Shock Pivot Threaded [M-10 Only]

5132584

$45.99

26

Bolt [M-10 Only]

7515511

$3.99

27

Nut [M-10 Only]

7542404

$1.59

28

Spacer [M-10 Only]

5133009

$2.22

29

Screw [M-10 ACE]

7511876

Unavailable

30

Screw [M-10 ACE]

7510504

$6.76

30

Bolt [M-10]

7511967

$5.43

31

Clamp, Reservoir [M-10 Only]

5132832

$23.99

32

Bolt [M-10 Only]

7515319

$4.79

33

Washer, Spring

7556179

$7.99

34

BOLT

7515382

$2.39

35

Bolt

7512329

$3.99

36

Block, Wheel Mount, LWT

5631065

$28.32

37

Slider, XL, Service, Basic

5521571

$36.41

38

Screw

7511975

Unavailable

39

Screw

7515199

$1.49
