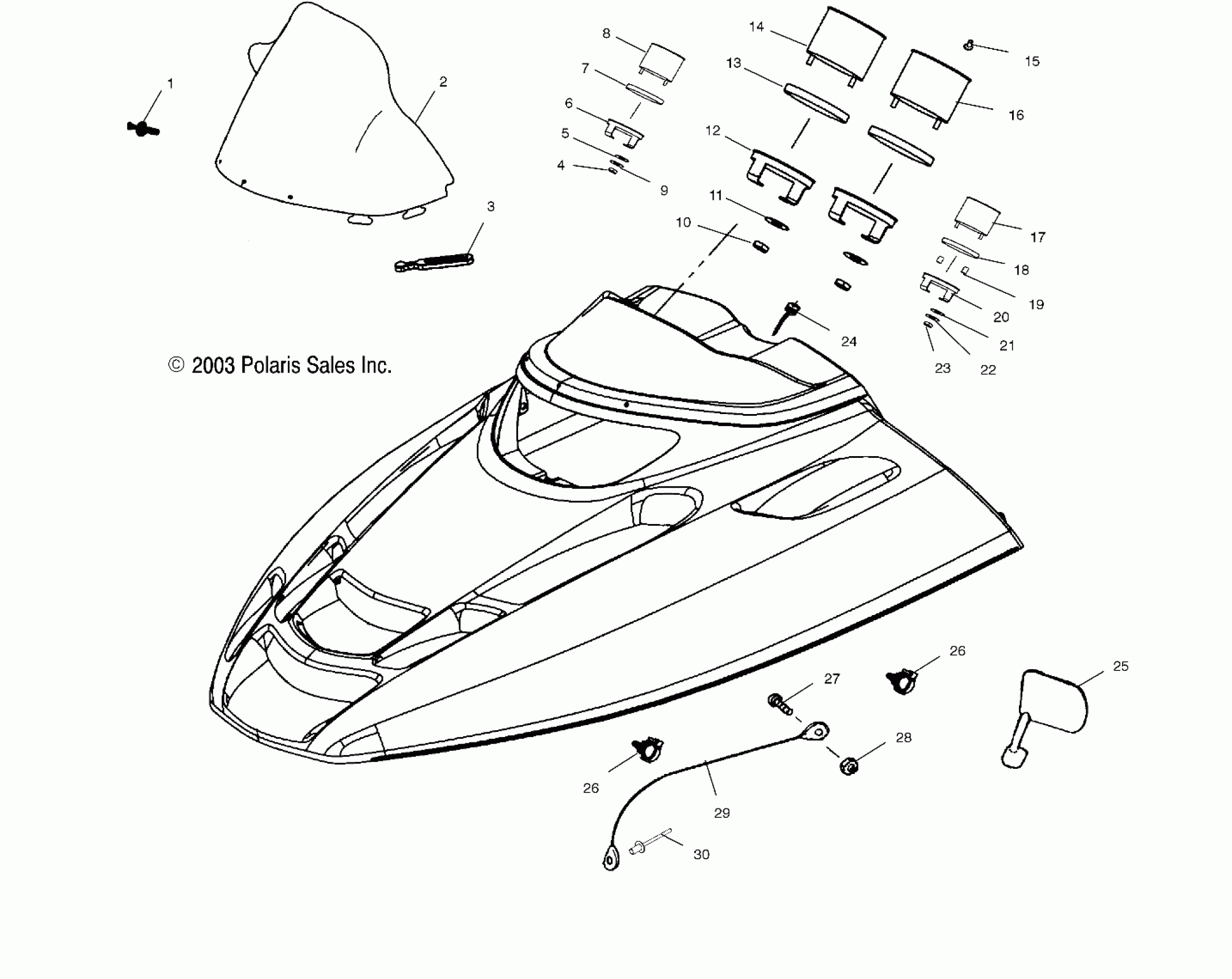

Polaris 600 CLASSIC - S04ND6ES HOOD - S04ND6ES/ESA/ESB (4988638863A10) Diagram

#

Description
Price

1

RIVET

7621509

$1.49

2

Windshield, Flared, Smoke, 15 Inch

5435045

Unavailable

3

RETAINER, WINDSHIELD

5410970

$1.49

4

Nut

7541933

$4.99

5

Washer, Flat

3280324

$0.51

6

Clamp

3280322

$5.43

7

Cushion

3280323

$8.79

8

Asm., Gauge, Ride Control [M-10 ACE][Incl. 6,7]

3280404

$140.79

9

Washer, Lock

7555868

Unavailable

10

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

11

Washer, Flat

3280157

$2.39

12

Bracket, Speedometer/Tachometer

3280210

$28.32

13

Cushion, Rubber

3280209

$3.99

14

Bulb, Replacement

4030015

$4.03

14

Kit, Tachometer

2874394

$181.49

15

Knob, Trip Odometer

3280186

$9.70

16

Bulb, Replacement

4030015

$4.03

16

Asm., Speedometer

3280411

$339.98

17

Asm., Gauge Fuel

3280410

$106.35

17

Fuse

4060139

Unavailable

18

Cushion

3280230

$3.41

19

Spacer, Fuel Gauge Bracket

3280228

$2.81

20

Clamp

3280229

Unavailable

21

Washer, Flat

3280231

$0.24

22

Washer, Lock

3280233

Unavailable

23

Nut

3280232

$1.49

24

Cable, Speedometer

3280385

$93.08

25

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

25

WASHER

7556088

$4.79

25

Asm., Mirror, LH

2632246-070

$89.99

25

Asm., Mirror, RH

2632247-070

$89.99

26

CLIP, ROSEBUD

4010589

$2.39

26

CLIP, ROSEBUD

4010589

$2.39

27

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

28

Nut, Nylok

7541925

$1.49

29

Cable, Hood Retainer

7080521

$24.27

30

RIVET-3/16-.090-.290

7661637

$1.49
