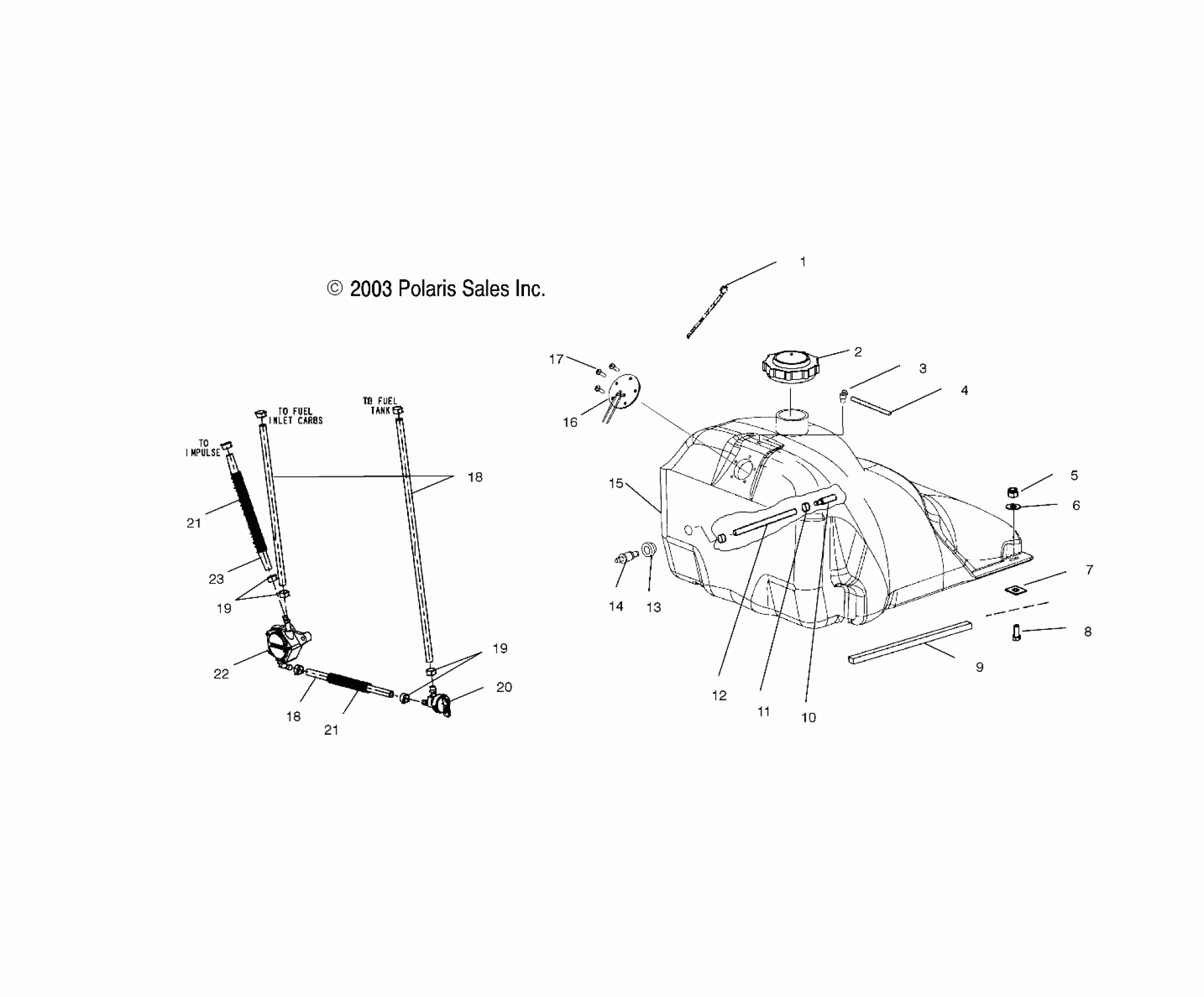

Polaris 600 CLASSIC - S04ND6ES FUEL TANK - S04ND6ES/ESA/ESB (4988638863A04) Diagram

#

Description
Price

1

CABLE TIE, RELEASABLE

7080804

$3.22

2

Cap, Fuel

2511195-070

Unavailable

2

Gasket

5810512

$9.11

3

Fitting, 90 Degree

7052095

$4.79

4

LINE, FUEL

8450061-600

Unavailable

5

Nut, Nylok

7542122

$1.49

6

WASHER, FLAT

7555960

$3.99

7

Nut, Speed

7670021

$6.99

8

BOLT, CARRIAGE

7512193

$2.39

9

FOAM-SEAL,REAR COOLER

5810947

$4.03

10

Pickup w/Mesh, Fuel

7052215

$49.99

11

RING, COMPRESSION

7080768

$4.84

12

LINE, FUEL

8350020-160

Unavailable

13

Grommet

5432981

$6.94

14

Fitting

7052269

$24.99

15

Asm., Fuel Tank, [Incl. 3-10]

2520289

Unavailable

16

Sender, Fuel

2410352

Unavailable

17

Package, Hardware, Sending Unit

2410456

$6.35

18

Line, Fuel

8350017-600

Unavailable

18

Line, Fuel

8350017-600

Unavailable

19

HOSE CLAMP, RED

7080003

$1.49

19

HOSE CLAMP, RED

7080003

$1.49

20

Valve, Fuel

1253424

$44.99

21

TUBING, CONVOLUTED

8360052-25

Unavailable

21

TUBING, CONVOLUTED

8360052-25

Unavailable

22

Pump, Fuel

2520275

$111.99

23

Line, Fuel

8450040-600

Unavailable
