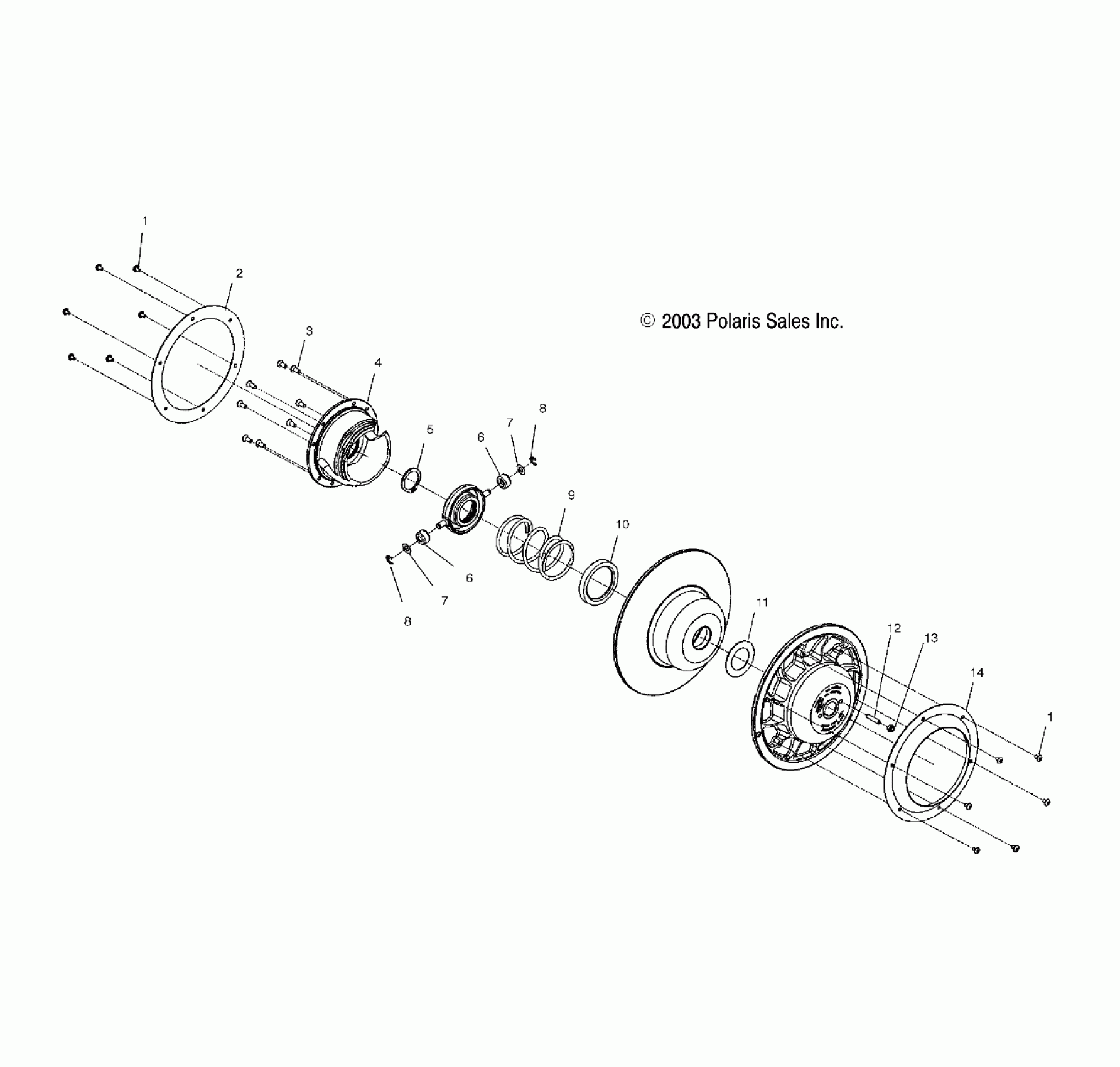

Polaris 600 CLASSIC - S04ND6ES DRIVEN CLUTCH - S04ND6ES/ESA/ESB (4988638863B14) Diagram

#

Description
Price

-

Asm., Driven Clutch, Basic, 211 [Incl. 1,3,5-8,10-13]

1322321

Unavailable

1

Screw

7518023

$4.03

1

Screw

7518023

$4.03

2

Plate, Windage

5246216

$20.48

3

Screw

3233996

Unavailable

4

Ramp, Driven

5134132

Unavailable

5

RING, RETAINING

7710522

$13.59

6

ROLLER

5434534

$48.56

6

ROLLER

5434534

$48.56

7

WASHER, THRUST

7556226

$5.65

7

WASHER, THRUST

7556226

$5.65

8

RET.E-RING-E T.375-TEAM#130059

7710523

$3.49

8

RET.E-RING-E T.375-TEAM#130059

7710523

$3.49

9

Spring, Driven Clutch, Red/Blue

7042137

Unavailable

10

WASHER, THRUST

7556227

$23.99

11

Spacer

3234033

Unavailable

12

Screw

7518024

Unavailable

13

Nut, FLEXLOC

7542103

$5.59

14

Plate, Windage

5246217

Unavailable
