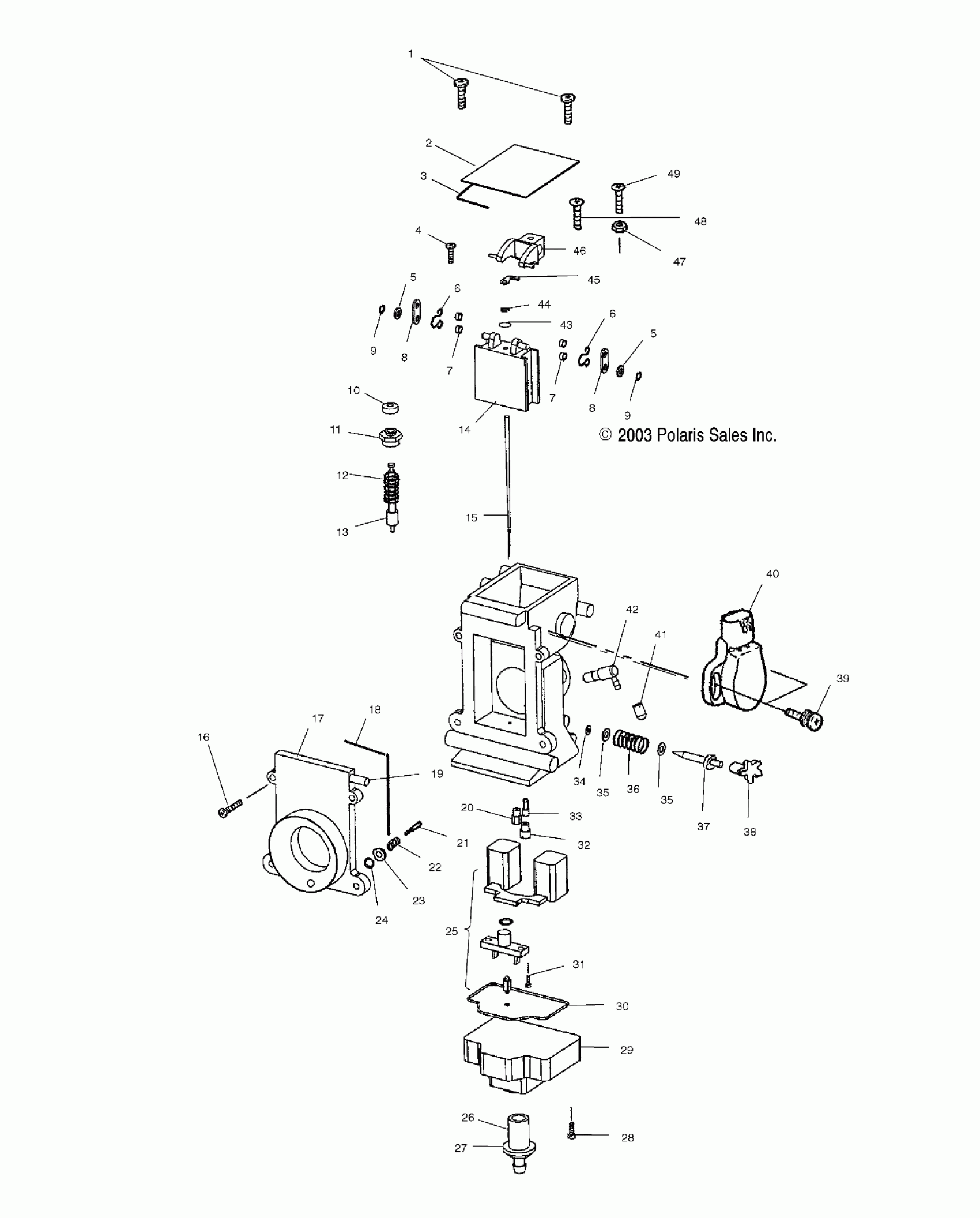

Polaris 600 CLASSIC - S04ND6ES CARBURETOR - S04ND6ES/ESA/ESB (4988638863C13) Diagram

#

Description
Price

-

Asm., Carburetor

1253445

Unavailable

1

Screw

3130951

$3.99

2

Cap, Top

3130872

Unavailable

3

Gasket

3130871

$20.22

4

Screw

3130844

$3.99

5

Packing

3130846

$4.79

5

Packing

3130846

$4.79

6

Clip

3130856

$8.79

6

Clip

3130856

$8.79

7

Ring

3130845

$8.89

7

Ring

3130845

$8.89

8

Plate

3130857

$7.27

8

Plate

3130857

$7.27

9

E-Ring

3130847

$8.89

9

E-Ring

3130847

$8.89

10

Cap, Rubber

3130831

$7.27

11

Holder, Guide

3130830

$32.37

12

Spring

3130829

$12.94

13

Plunger

3130828

$32.37

14

Valve, Piston, 2.5

3130790

Unavailable

15

Needle, Jet [9DFH7-60]

3131268

$44.51

16

Screw

3130825

$3.19

17

Funnel, Long

3131335

$53.59

18

O-Ring, Air Funnel, Long

3131356

$16.17

19

Pin

3130808

Unavailable

20

Jet, Main, 440

3130144

$7.27

21

Screw, Air

3131336

Unavailable

22

Spring

3131371

Unavailable

23

Washer

3131372

$5.59

24

O-Ring

3130522

$5.65

25

Float

3130859

$94.99

26

Bolt, Drain

3131248

Unavailable

27

O-Ring

3130863

$2.41

28

Screw

3130824

$3.19

29

Body, Float

3130858

$119.99

30

O-Ring

3130861

$12.13

31

Screw

3130860

$8.79

32

Jet, Pilot, #45

3130068

$8.89

33

Jet, Starter, 140

3130768

$8.89

34

Packing

3130835

$2.41

35

Washer

3130837

$3.19

35

Washer

3130837

$3.19

36

SPRING

3130836

$7.27

37

Adjuster

3130987

$20.22

38

Cap

3130986

$9.70

39

Screw [MAG Side]

3131010

$4.79

40

Asm., Sensor [MAG Side]

3131009

$259.03

41

CAP

3130479

$14.56

42

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37

43

Packing

3130867

$5.65

44

E-Ring

3130868

$8.89

45

Plate

3130843

$8.89

46

Lever, LH

3130855

$64.75

46

Lever, RH

3130849

$64.75

47

Ring

3130848

$32.37

48

Screw, LH

3130854

$3.19

49

Screw, RH

3130850

$4.79
