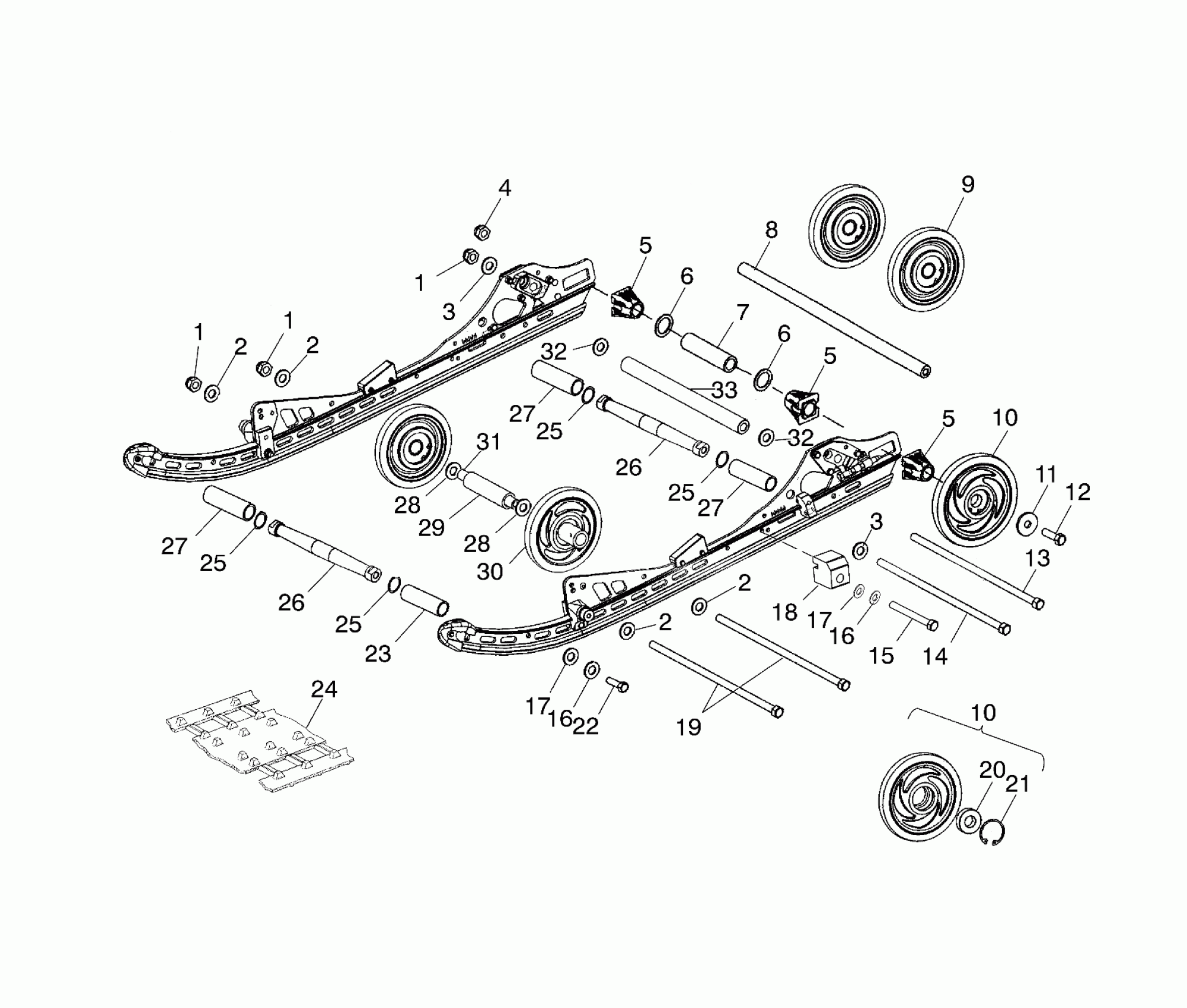

Polaris 600 CLASSIC - S02ND6ES SUSPENSION - S02ND6ES (4970437043B007) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542439

$1.49

1

NUT-LOCK(10)

7542439

$1.49

1

NUT-LOCK(10)

7542439

$1.49

2

WASHER(10)

7555797

$3.99

2

WASHER(10)

7555797

$3.99

2

WASHER(10)

7555797

$3.99

2

WASHER(10)

7555797

$3.99

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

4

NUT

7547064

Unavailable

5

SPACER-IDLER

5432535

$11.99

5

SPACER-IDLER

5432535

$11.99

5

SPACER-IDLER

5432535

$11.99

6

BUSHING(10)

7555918

$1.59

6

BUSHING(10)

7555918

$1.59

7

SPACER-IDLER, CENTER

5333283

$19.99

8

SHAFT,IDLER

5020744

$59.99

9

ASM-WHEEL,IDLER 6.0 OD PLAIN

1590307

$48.56

10

ASM-WHEEL,IDLER,SCRLLD,6.0,BL

1590305-312

Unavailable

10

ASM-WHEEL,IDLER,SCRLLD,6.0,BL

1590305-312

Unavailable

11

WSHR,.406X1.25X.125(10)

7556130

$6.39

12

BOLT,3/8-16X1.25(10)

7517731

$1.49

13

SCREW-5/16-24X10.50,HXHD CAP-Y

7517896

Unavailable

14

SCREW-3/8-24X10.50 HXHD CAP-Y

7517821

Unavailable

15

SCR-3/8-24X3 1/4 HXCP GR8-Y

7517856

Unavailable

16

WASHER(10)

7552603

$1.49

16

WASHER(10)

7552603

$1.49

17

WASHER (10) Substituted by 7555720

7556042

Unavailable

17

WASHER (10) Substituted by 7555720

7556042

Unavailable

18

BLOCK-SHOCK PIVOT ADJ

5132583

$16.39

19

Screw

7517353

Unavailable

20

Bearing

3514012

Unavailable

21

RING-RETAINING

7710444

$8.79

22

SCR-3/8-24X2.00 HX/CP-GR8-P80Y

7517857

$5.59

23

LIMITER-STRAP LOWER ATTACH (Limiter, Strap)

5132586

Unavailable

24

TRACK-121X1.00X1,SHOCKWAVE

5411994

Unavailable

25

O RING-.875ID X .125 DIA

5411965

$3.63

25

O RING-.875ID X .125 DIA

5411965

$3.63

25

O RING-.875ID X .125 DIA

5411965

$3.63

25

O RING-.875ID X .125 DIA

5411965

$3.63

26

SHAFT-TAPERED

5132793

$89.03

26

SHAFT-TAPERED

5132793

$89.03

27

SPACER-SHOCK CENTERING,M-10

5333902

$34.99

27

SPACER-SHOCK CENTERING,M-10

5333902

$34.99

27

SPACER-SHOCK CENTERING,M-10

5333902

$34.99

28

MACHINERY BUSHING(10)

7556301

$3.19

28

MACHINERY BUSHING(10)

7556301

$3.19

29

SPACER-BOGIE INNER

5330394

Unavailable

30

ASM-WHEEL,5.35,.75IDW/IN,SCRBL

1541530-312

Unavailable

31

SHAFT,.390X.750X.8665

5132490

Unavailable

32

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

32

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

33

TUBE-.334X.50X8.515,1020-BLK

5333477-067

$15.67
