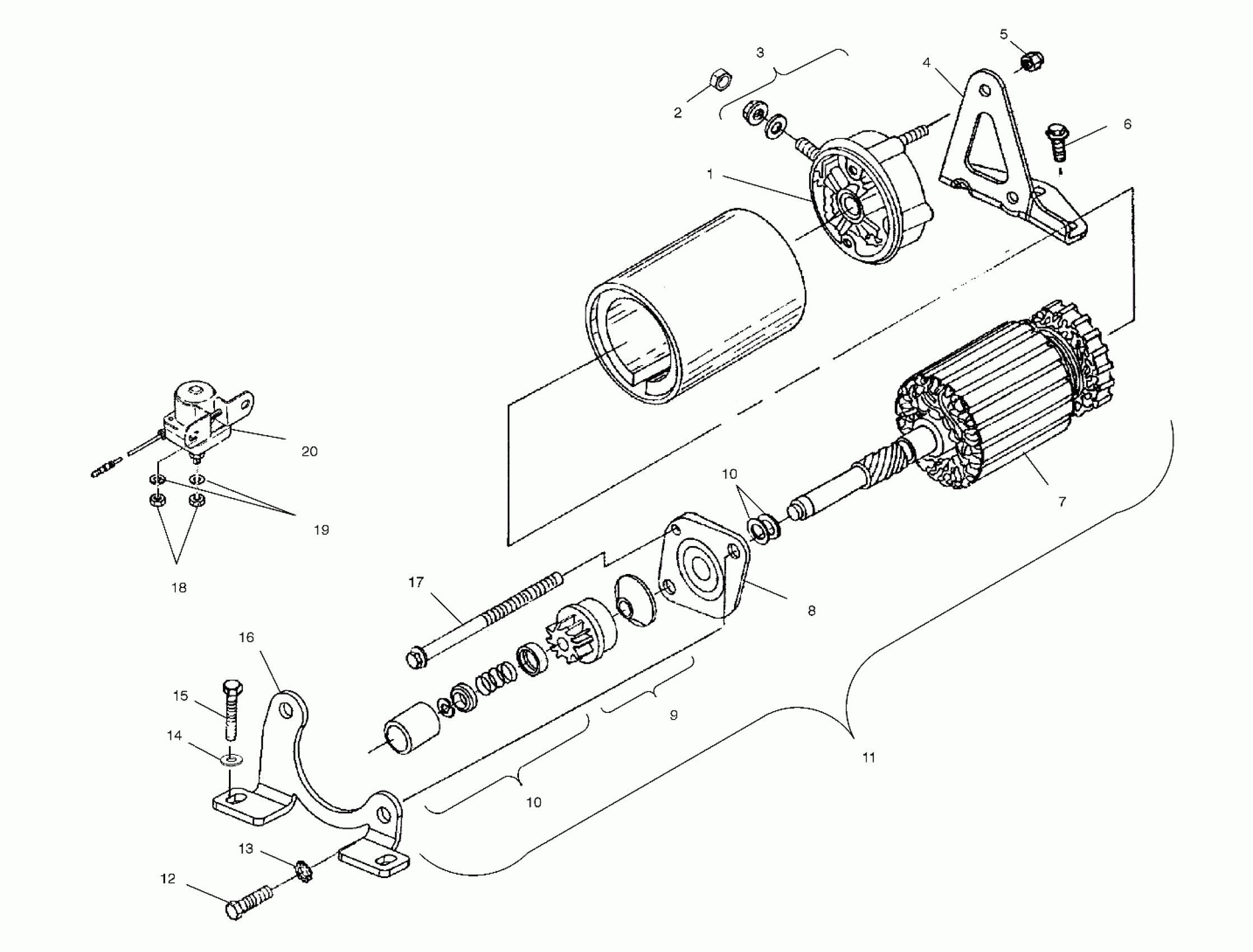

Polaris 600 CLASSIC - S02ND6ES STARTING MOTOR - S02ND6ES (4970437043D001) Diagram

#

Description
Price

1

KIT,BRUSH&SPRING

2200759

$59.99

1

ASM., BRUSH AND SCREW

-------

Unavailable

1

ASM., BRUSH

-------

Unavailable

1

BUSHING, INSULATION

-------

Unavailable

1

WASHER, INSULATION

-------

Unavailable

1

Nut

-------

Unavailable

2

Nut, FLEXLOC

7542103

$5.59

3

KIT,COMMUTATOR CAP ASM. (Incl.1)

2200758

$82.39

4

BRKT,STARTER,REAR

5244250

$389.99

5

NUT(10)

7542153

$1.59

6

Screw

7516823

$3.19

7

KIT,ARMATURE ASM.

2200756

$169.99

8

KIT,DRIVECAP ASM.

2200757

$59.99

9

KIT,DRIVE ASM.

2200754

Unavailable

9

PLATE, DRIVE

-------

Unavailable

9

PINION

-------

Unavailable

10

KIT,DRIVE HDWE.

2200755

Unavailable

10

COVER, DUST

-------

Unavailable

10

WASHER, CURVED SPRING

-------

Unavailable

10

Washer, Thrust

-------

Unavailable

10

SPACER

-------

Unavailable

10

SPRING, ANTIDRIFT

-------

Unavailable

10

PINION, STOP

-------

Unavailable

10

RING, LOCK

-------

Unavailable

10

KIT,DRIVE HDWE.

2200755

Unavailable

10

COVER, DUST

-------

Unavailable

10

WASHER, CURVED SPRING

-------

Unavailable

10

Washer, Thrust

-------

Unavailable

10

SPACER

-------

Unavailable

10

SPRING, ANTIDRIFT

-------

Unavailable

10

PINION, STOP

-------

Unavailable

10

RING, LOCK

-------

Unavailable

11

MOTOR,STARTER,(DOMESTIC)

4170006

Unavailable

12

SCREW(10)

7512492

$1.49

13

WASHER(10)

7552603

$1.49

14

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

15

Screw

7517322

$2.39

16

BRKT-STARTER,FR,EDGE,S44

5245467

Unavailable

17

KIT,SCREW

2200753

$29.99

17

BOLT, THRU

-------

Unavailable

18

NUT(10)

3082939

Unavailable

19

WASHER SPRING(10)

3080077

$2.39

20

SWITCH-MAGNETIC Substituted by 3085521 (Incl. 15,16)

3083211

Unavailable
