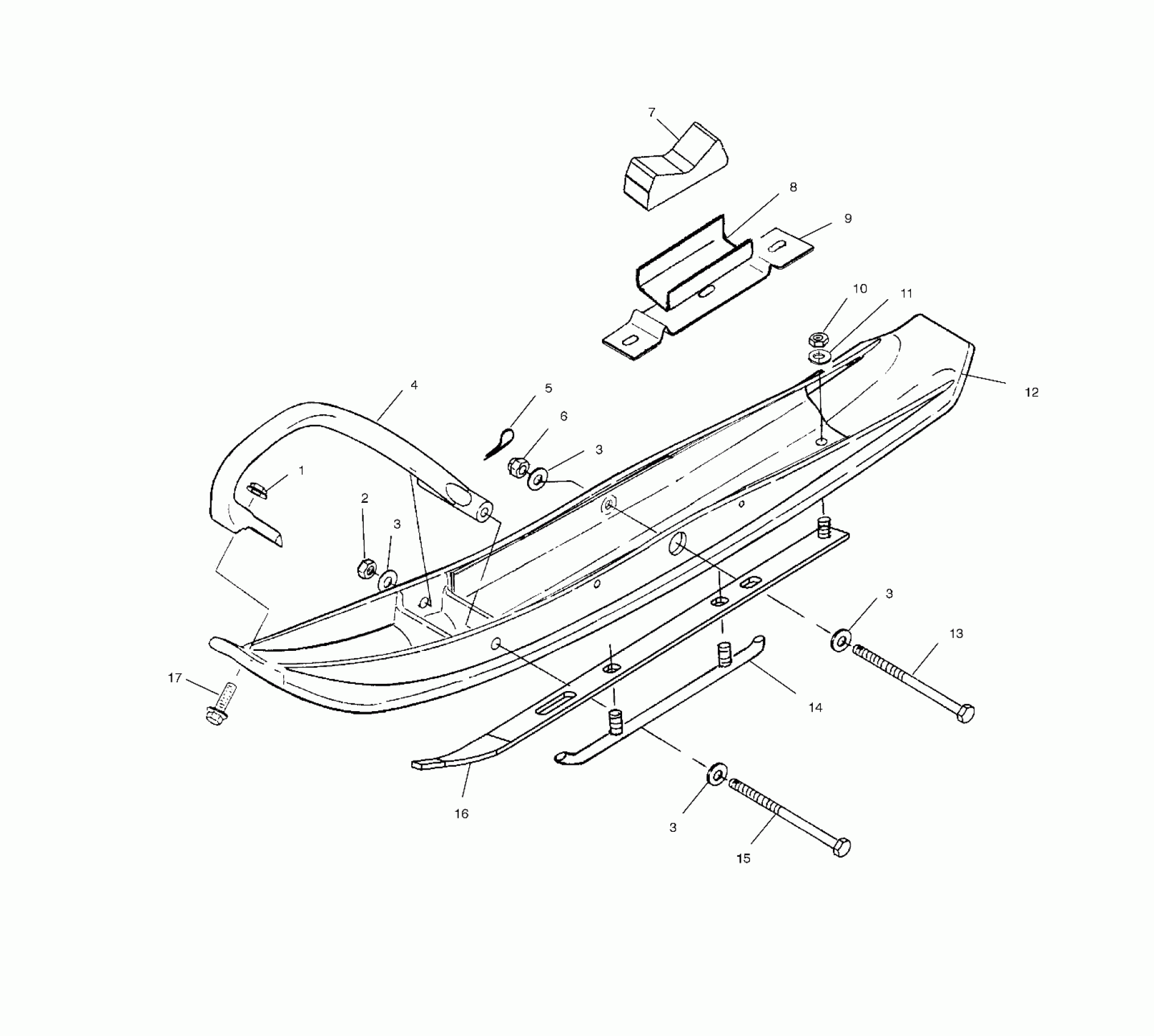

Polaris 600 CLASSIC - S02ND6ES SKI - S02ND6ES (4970437043A013) Diagram

#

Description
Price

1

NUT LOCK(10)

7542321

$1.49

2

NUT-LOCK(10)

7542439

$1.49

3

WSHR-.813X.406X.105-Y

7555832

$2.39

3

WSHR-.813X.406X.105-Y

7555832

$2.39

3

WSHR-.813X.406X.105-Y

7555832

$2.39

3

WSHR-.813X.406X.105-Y

7555832

$2.39

4

TOE-PLASTIC SKI,BLK

5434165-070

$40.46

5

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

6

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

7

Stop, Rubber (If built before 9/28/01)

5411094

Unavailable

7

STOP,RUBBER (If built after 9/28/01)

5412018

$24.27

8

RETAINER-SKI RUBBER

5243824

$27.99

9

SUPPORT,SKI,RUBBER,BLK

5241912-067

Unavailable

10

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

12

ASM-CMP SKI BLANK W/RK SDL,BLK (If built before 6/01)(See Ski Pg. D3 if built after 6/01)

1820821-070

Unavailable

13

SCREW,(10)

7512596

$19.99

14

KIT,SKAG,EZ,3",COMP.SKI

2872018

Unavailable

14

KIT,SKAG,E/Z 3",CO W/WR/ST (Incl. 10,11,16)

2872019

Unavailable

15

BOLT(10)

7515514

$7.19

16

PLATE,SKAG,1.375 STUD,BLK

1012748-067

Unavailable

17

BOLT(10)

7515307

$3.99
