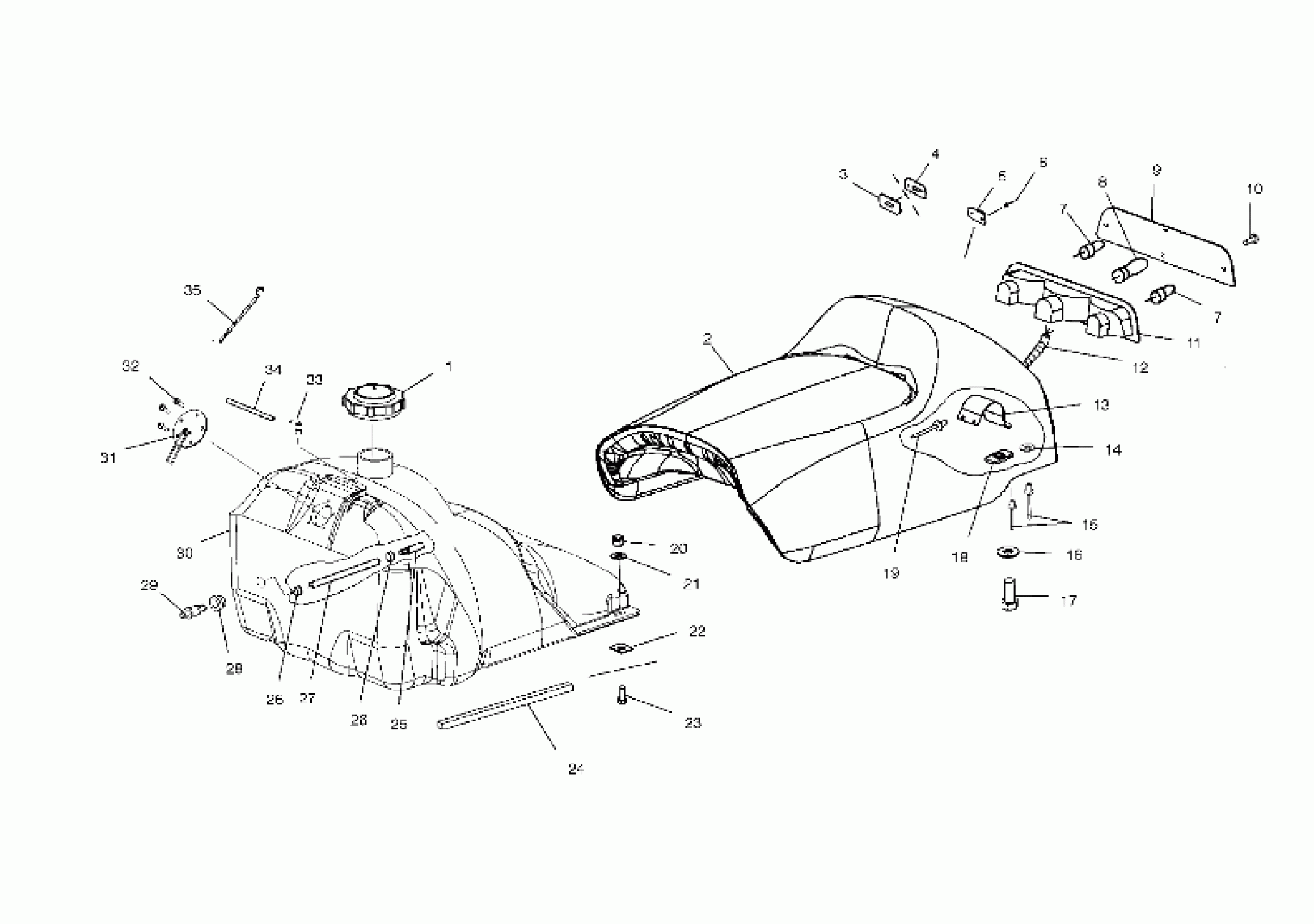

Polaris 600 CLASSIC - S02ND6ES SEAT AND GAS TANK - S02ND6ES (4970437043A004) Diagram

#

Description
Price

1

CAP ASM,FUEL,BLK

2511195-070

Unavailable

1

Gasket, Fuel Cap

5810512

$9.11

2

ASM-SEAT,EDGE (Incl. 2-13)

2682759

Unavailable

2

ASM-SEAT COVER,EDGE

2682760

Unavailable

3

GROMMET,RELATCH,1",BOTT.(10)

7080550

Unavailable

4

GROMMET,RELATCH,1",TOP(10)

7080549

Unavailable

5

TWISTLOCK,RELATCH,1",W/HOLE(10)

7080548

Unavailable

6

RIVET(50)

7621337

$1.49

7

BULB,TAILLIGHT(10)

4030024

$4.84

7

BULB,TAILLIGHT(10)

4030024

$4.84

8

Bulb, Brakelight

4030045

Unavailable

9

LENS,TAILLIGHT

5430423

Unavailable

10

SCREW(10)

7511840

Unavailable

11

HOUSING-TAILLIGHT

5433341

Unavailable

12

Harness, Taillight

2460399

Unavailable

13

RETAINER-CLIP,TOOL POUCH

5243185

$10.63

14

RIVET BURR(50)

7555727

$1.49

15

RIVET,POP,5/32"(50) Substituted by 7621307

7621319

$1.49

16

WASHER(10)

7558301

$1.49

17

SCREW(10)

7515159

$4.79

18

NUT-SEAT

5631194

$4.99

19

RIVET(50)

7621472

$1.49

20

NUT-LOCK(10)

7542122

$1.49

21

WASHER(10)

7555960

$3.99

22

SPEED NUT(10)

7670021

$6.99

23

BOLT(10)

7512193

$2.39

24

FOAM-SEAL,REAR COOLER

5810947

$4.03

25

PICK-UP-FUEL,W/FILTER,105MICRN

7052301

$12.94

26

RING, COMPRESSION(10)

7080402

$1.60

26

RING, COMPRESSION(10)

7080402

$1.60

27

FUEL LINE-ESTER Substituted by 8350019-160

8350019-600

Unavailable

28

GROMMET-TANK FITTING(10)

7052028

$6.39

29

FITTING,1/4" 90� DEX

7052259

Unavailable

30

DESC NOT_AVAILABLE (Incl. 25-33)

2520264

$236.99

31

SENDER-FUEL,12.0 GAL,SNOW

2410165

Unavailable

32

HARDWARE,PKG,SENDER

2410232

$7.43

33

FITTING,90 DEG,1/8,(10)

7052095

$4.79

34

FUELLINE,3MMX7MM

8450061-600

Unavailable

35

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22
