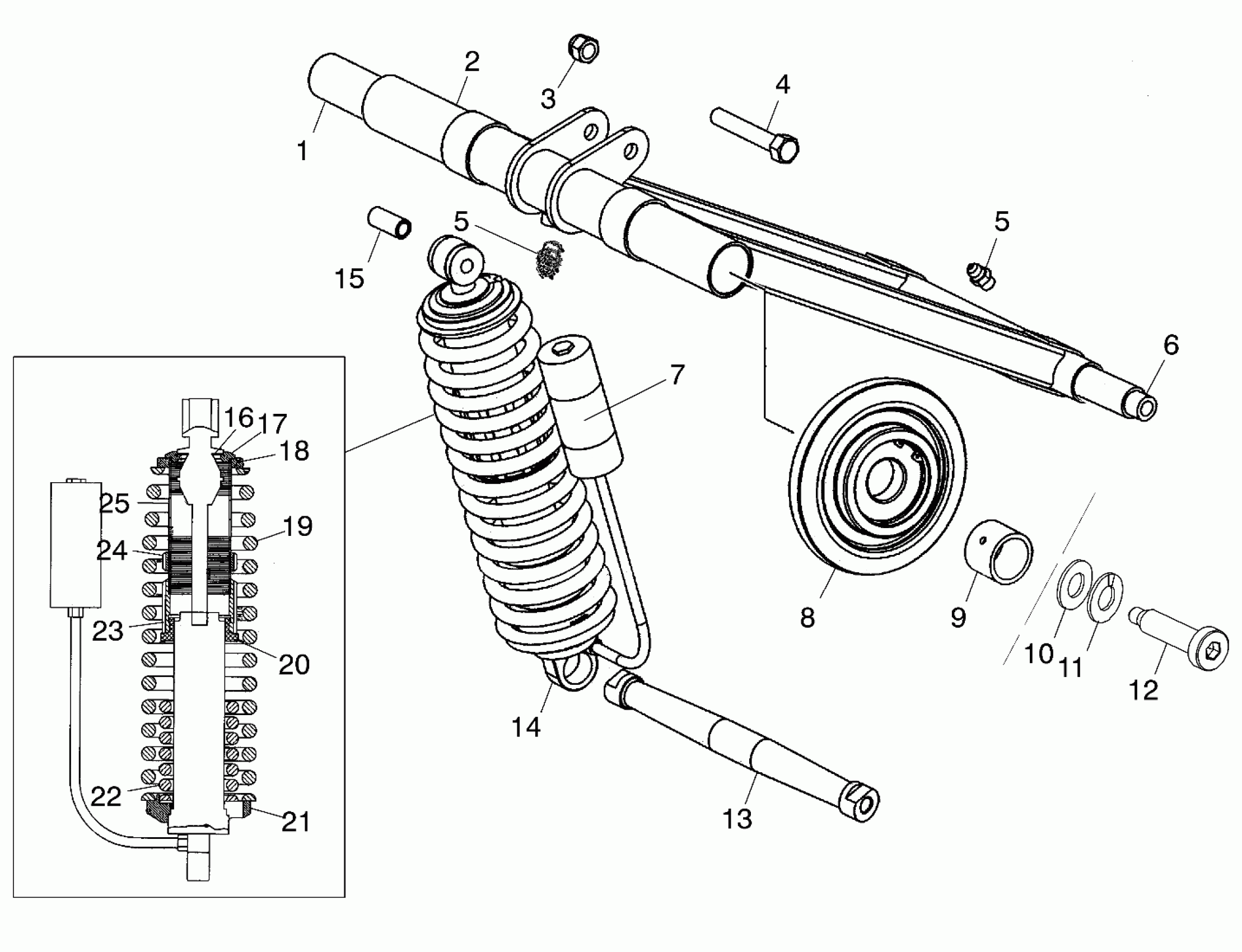

Polaris 600 CLASSIC - S02ND6ES REAR TORQUE ARM - S02ND6ES (4970437043B009) Diagram

#

Description
Price

1

SHAFT,UPR.TORQUE ARM,M-10

5132578

Unavailable

2

WELD-TORQUE ARM,M-10,YELLOW

1541527-216

Unavailable

3

NUT-LOCK(10)

7542439

$1.49

4

BOLT(10)

7515415

$1.49

5

FITTING-LUBRICATION 1/4-28

7080424

$4.79

5

FITTING-LUBRICATION 1/4-28

7080424

$4.79

6

SHAFT-RTA LOWER Substituted by 2201938

5133093

$28.79

7

DECAL-M-10,FOX,RES

7079432

Unavailable

8

ASM-WHEEL,OFF-SET 5.60

1590308

Unavailable

8

BEARING-6206

3514330

$31.99

8

Ring, Retaining

7710471

$13.59

9

SCREW-SET(10)

7512257

$3.99

9

COLLAR-BRG LOCK,REAR

5132582

Unavailable

10

WASHER ,(10)

7555984

$2.39

11

WASHER-LOCK, 7/16-B

7552614

$1.59

12

SCR-7/16-14X1.25SOCHD-P80-DGPT

7517815

Unavailable

13

Shaft, Tapered (See Suspension Pg. B7, Ref. 26)

-------

Unavailable

14

SHOCK-REAR TRACK,REZY-M-10

7041934

Unavailable

15

SLEEVE,.385X.560X1.24

5333905

$15.99

16

CAP-ICE

5244747

$5.75

17

RETAINER,SPRING,SLOTTED

5020618

$24.99

18

NUT-PRELOAD

5132645

Unavailable

19

SPRING-REAR SHOCK,M10,SCR YLW

7041935-216

Unavailable

20

BUSHING-OVER LOAD DEPRESSOR

5433882

$5.78

21

RETAINER-REAR SPRING

5133032

$84.99

22

SPRING-REAR OVER/LOAD,M-10,BLK

7041936-067

Unavailable

23

RING-ADJUSTER

5132625

$97.99

24

NUT-RING ADJUSTER

5132643

Unavailable

25

SLEEVE-OVERLOAD DEPRESSOR

5132794

$29.37
