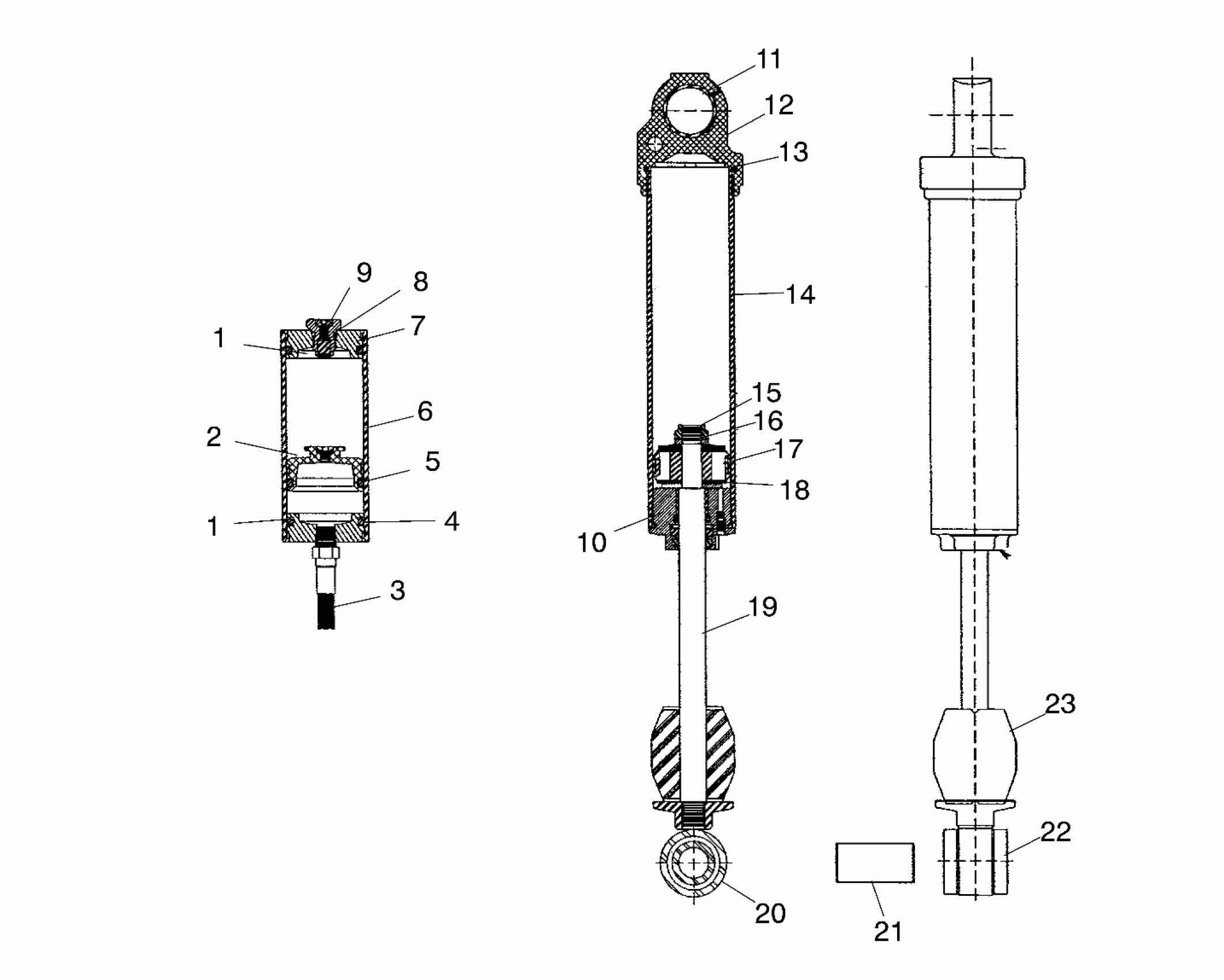

Polaris 600 CLASSIC - S02ND6ES REAR SHOCK - S02ND6ES (4970437043B011) Diagram

#

Description
Price

-

ASM-RESERVIOR,NON ADJUST,1.459 (Incl. 1-9)

1500449

Unavailable

-

SHOCK-REAR TRACK,REZY-M-10

7041934

Unavailable

1

SEAL-O-RING

1500450

Unavailable

1

SEAL-O-RING

1500450

Unavailable

2

PISTON-FLOATING

1500187

$26.98

3

HOSE-14.00 TLG

1500445

Unavailable

4

ENDCAP ASM,RESERV.(FOX)

1500163

$69.51

5

O-RING,ENDCAP,FOX,(10)

1500003

$8.89

6

Reservoir

1500451

Unavailable

7

RESERVOIR,ENDCAP ASM.

1500160

$216.17

8

O-RING,OUTER

1500023

$2.84

9

VALVE ASM,AIR

1500014

$69.99

10

BEARING-ASSEMBLY

1500186

Unavailable

10

O-RING,(10).103W-1.299ID

1500020

$10.63

10

O-RING INNER (10)

1500021

$10.99

10

WIPER.-4300 URETH

1500268

Unavailable

10

U-CUP-4300 URETH,036-01-006

1500266

$24.27

10

Screw

1500070

$6.39

10

BALL, (FOX)

1500071

$6.76

11

BEARING-RBC 003-10-000 [No Longer Available]

1500444

Unavailable

12

ASM-BODY CAP

1500448

Unavailable

13

O-RING,.103W-1.549ID

1500108

$10.99

14

BODY-6.825-TLG,.58 THD L

1500446

$70.39

15

NUT,LOCK

1500016

$12.79

16

BUSHING,BACKUP

1500015

$6.76

17

DAMPER,PISTONRING,FOX

1500002

$31.99

18

PLATE,TOP OUT

1500017

$20.22

19

SHAFT-.498 X 7.525 TLG

1500447

$38.89

20

EYELET,BASE

1500164

$93.08

21

SLEEVE,.56X.81X1.2

1500310

$23.99

22

BUSHING,.35ILG,.595TLG

1500309

Unavailable

23

BUMPER,JOUNCE

5410855

$39.19
