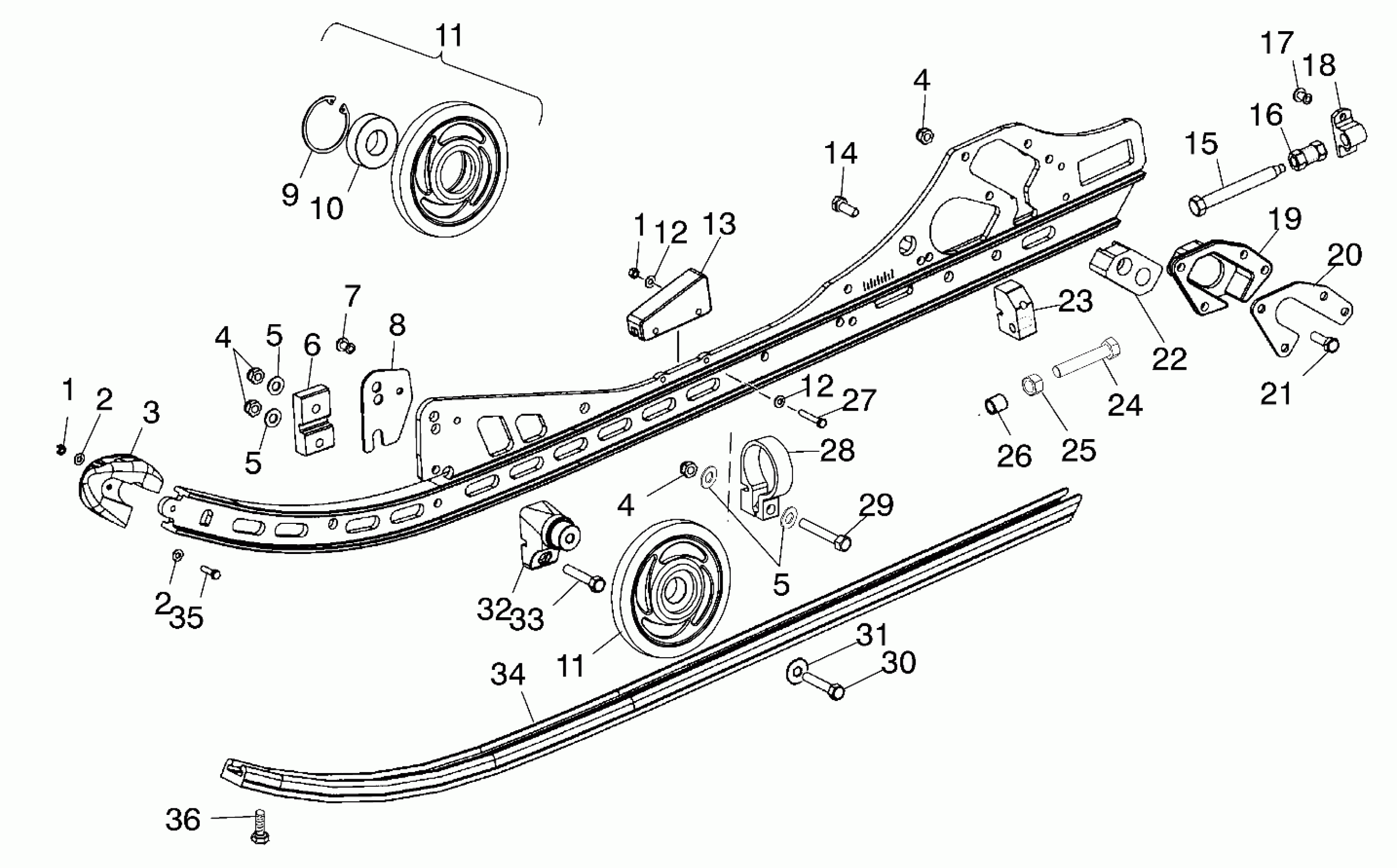

Polaris 600 CLASSIC - S02ND6ES RAIL MOUNTING (SUSPENSION) - S02ND6ES (4970437043B006) Diagram

#

Description
Price

-

DESC NOT_AVAILABLE (Incl. 1-3,13,17,18,27,35)

1541676-309

$354.99

-

DESC NOT_AVAILABLE (Incl. 1-3,13,17,18,27,35)

1541677-309

$354.99

1

NUT(10)

7541925

$1.49

1

NUT(10)

7541925

$1.49

2

WASHER(10)

7555792

$4.79

2

WASHER(10)

7555792

$4.79

3

CAP-RAIL TIP

5434374

$20.22

4

NUT-5/16-18 NYLOK-Y

7542324

$1.49

4

NUT-5/16-18 NYLOK-Y

7542324

$1.49

4

NUT-5/16-18 NYLOK-Y

7542324

$1.49

5

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

5

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

5

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

6

BLOCK-RAIL SUPPORT

5132577

Unavailable

7

RIVET(50)

7661845

$1.49

8

PLATE-RAIL SUPPORT

5244651

$9.84

9

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

10

BEARING (1 per Wheel)

3514303

$11.99

11

ASM-WHEEL SCRLLD,5.35,BLUE (Incl. 9,10)

1590275-312

Unavailable

11

ASM-WHEEL SCRLLD,5.35,BLUE (Incl. 9,10)

1590275-312

Unavailable

12

WASHER(10)

7555783

$3.99

12

WASHER(10)

7555783

$3.99

13

BUMPER-JOUNCE,RAIL

5411947

$12.39

14

BOLT(10)

7512392

$4.79

15

SCR,7/16-14X3 3/4XHD

7517773

$28.56

16

NUT-TENSION,ADJ,7/16-14

5132712

Unavailable

17

RIVET,(50)

7621501

$2.39

18

BLOCK-IDLER BOLT ADJ,THIN,7/16

5132611

$34.71

19

GUIDE-SLIDER,M-10,LH

5631103

$51.59

19

GUIDE-SLIDER,M-10,RH

5631104

Unavailable

20

PLATE-COUPLER BLOCK

5245045

Unavailable

21

SCREW(10)

7512310

$2.39

22

BLOCK-SLIDER,LONG,M-10,LH

5434239

$19.60

22

BLOCK-SLIDER,LONG,M-10,RH

5434240

$16.47

23

BLOCK-SHOCK PIVOT THREADED

5132584

$45.99

24

SCREW(10)

7515511

$3.99

25

NUT(10)

7542404

$1.59

26

SPACER-.390X.56X.43 [Item NotAvailable]

5133009

$2.22

27

BOLT(10)

7511967

$5.43

28

CLAMP-RESERVIOR,M10

5132832

$23.99

29

BOLT(10)

7515319

$4.79

30

BOLT(10)

7515382

$2.39

31

WASHER-SPRING,CON 5/16X.090-Y

7556179

$7.99

32

MOUNT,WHEEL,MACH

5131314

$53.59

33

BOLT(10)

7512329

$3.99

34

HI-FAX-M-10,NATURAL

5521563-309

$36.41

35

SCREW(10)

7511975

Unavailable

36

SCREW(10)

7515199

$1.49
