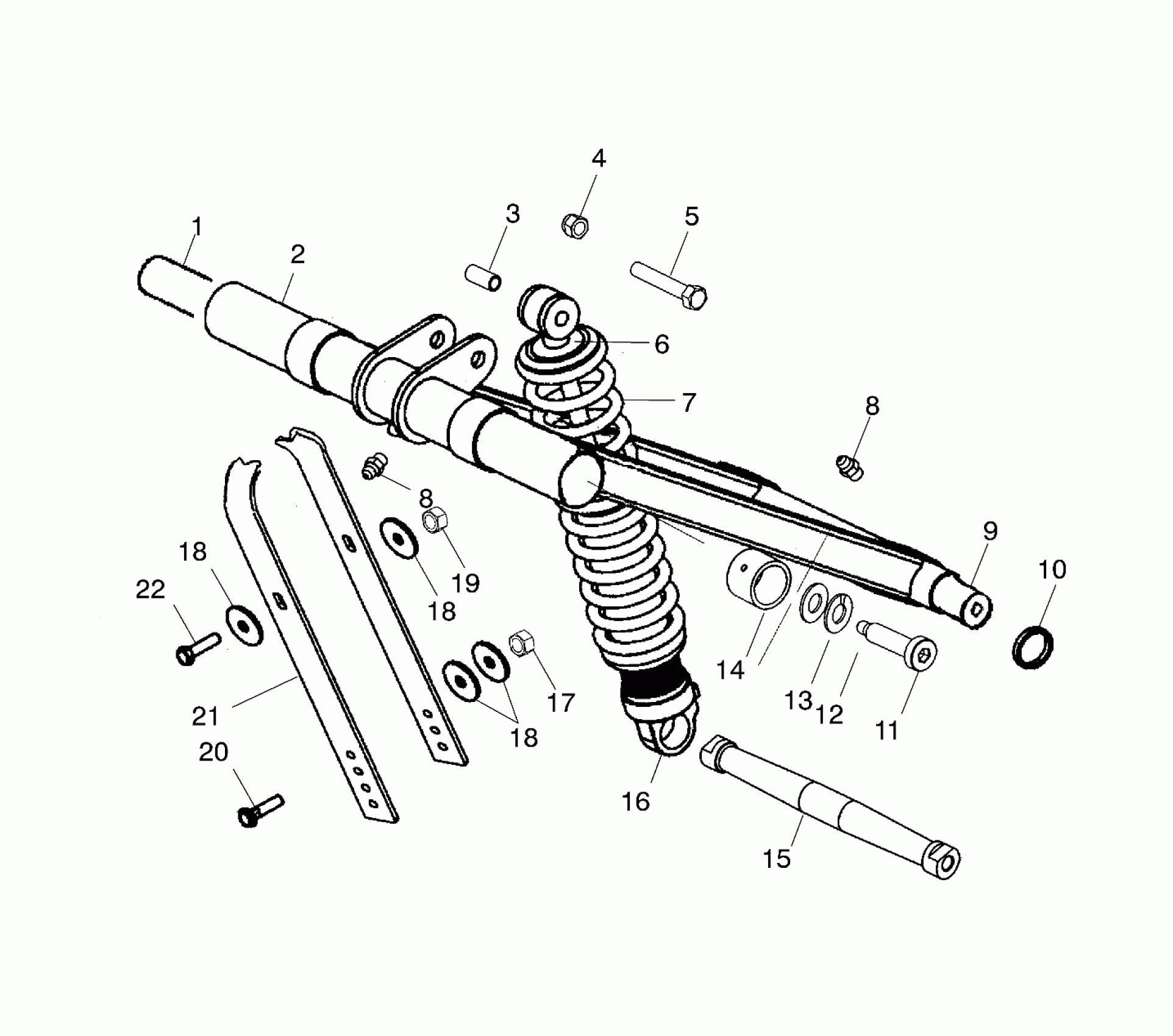

Polaris 600 CLASSIC - S02ND6ES FRONT TORQUE ARM - S02ND6ES (4970437043B008) Diagram

#

Description
Price

1

SHAFT-UPPER TORQ,ARM,FRT,M-10

5132675

Unavailable

2

WELD-TORQUE ARM,M-10,YELLOW

1541527-216

Unavailable

3

SLEEVE,.385X.560X1.24

5333905

$15.99

4

NUT-LOCK(10)

7542439

$1.49

5

BOLT(10)

7515415

$1.49

6

RETAINER,SPRING,SLOTTED

5020618

$24.99

7

SPRING-COMP,.331X9.00,160#,YLW

7041671-216

Unavailable

8

FITTING-LUBRICATION 1/4-28

7080424

$4.79

8

FITTING-LUBRICATION 1/4-28

7080424

$4.79

9

SHAFT,FTA,LOWER,PIVOT

5132579

$21.59

10

SPACER-TORQUE ARM,FRT,LOWER

5132783

Unavailable

11

SCR-7/16-14X1.25SOCHD-P80-DGPT

7517815

Unavailable

12

WASHER-LOCK, 7/16-B

7552614

$1.59

13

WASHER ,(10)

7555984

$2.39

14

SCREW-SET(10)

7512257

$3.99

14

SPACER,TORQ ARM,FRT,UPPER

5132595

Unavailable

15

Shaft, Tapered (See Suspension Pg. B7, Ref. 26)

-------

Unavailable

16

SHOCK-FRONT TRACK M-10

7041933

Unavailable

17

NUT-5/16-18 NYLOK-Y

7542324

$1.49

18

WASHER-.325X1.20X.090,FL-Y

7556175

$5.99

18

WASHER-.325X1.20X.090,FL-Y

7556175

$5.99

18

WASHER-.325X1.20X.090,FL-Y

7556175

$5.99

19

NUT,NYLOC,(10)

7542344

$3.99

20

BOLT(10)

7515316

$2.39

21

STRAP-LIMITER,M-10

5411940

Unavailable

22

BOLT(10)

7512392

$4.79
