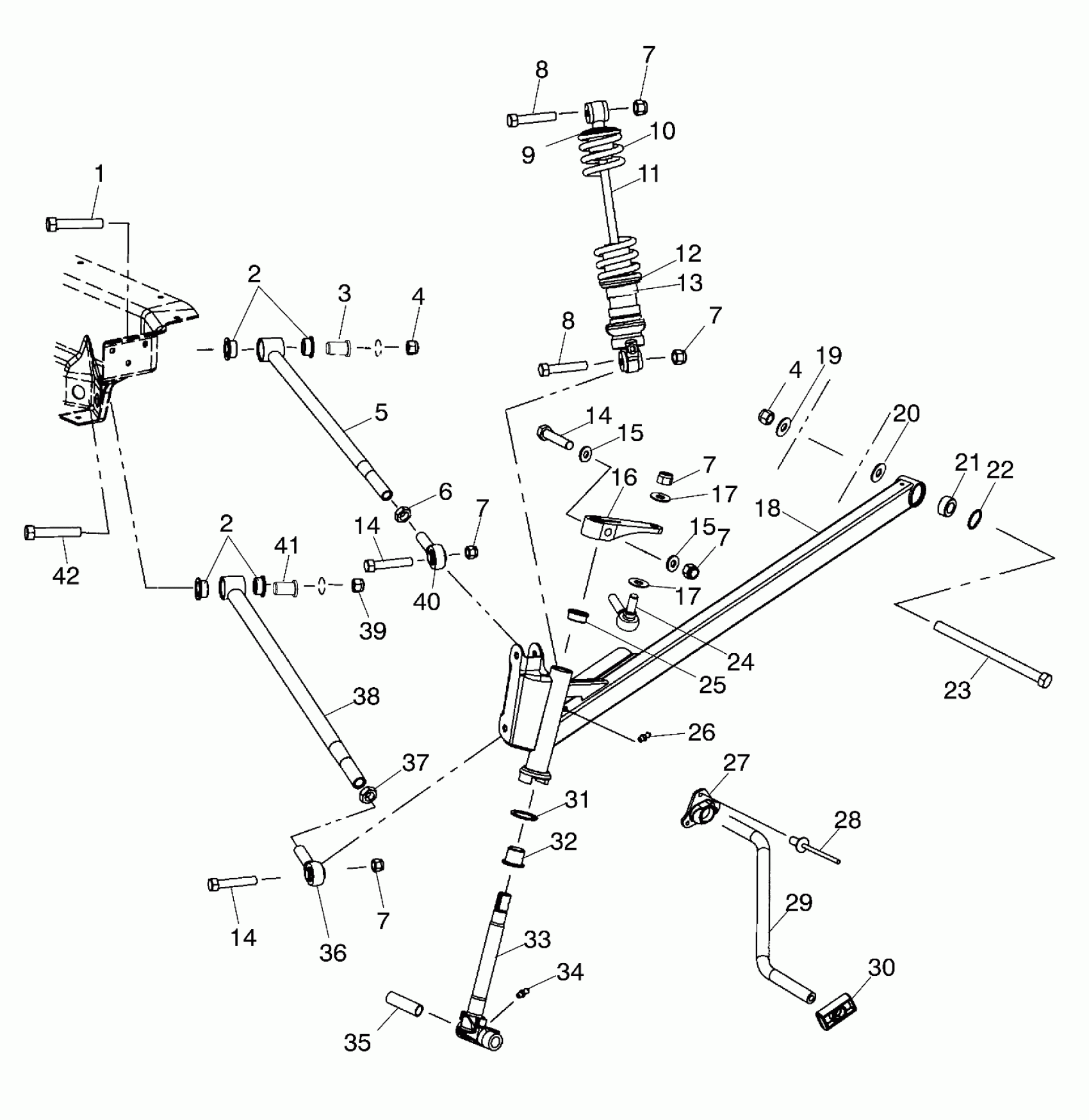

Polaris 600 CLASSIC - S02ND6ES FRONT SUSPENSION - S02ND6ES (4970437043B001) Diagram

#

Description
Price

1

BOLT-7/16-20X2.75,HXCAP,GR5,Y

7512597

$4.99

2

BUSHING-RAD ROD PIVOT,INNER

5434036

$14.99

2

BUSHING-RAD ROD PIVOT,INNER

5434036

$14.99

3

BUSHING-SHLDR,.443X.750X1.215

5132779

$11.99

4

NUT-7/16-20,NYLOK,Y

7547066

$1.59

4

NUT-7/16-20,NYLOK,Y

7547066

$1.59

5

WELD-RADIUS ROD,UPPER,BLUE

1820679-312

$104.99

6

NUT JAM(10)

7542520

$2.39

7

NUT-LOCK(10)

7542439

$1.49

7

NUT-LOCK(10)

7542439

$1.49

7

NUT-LOCK(10)

7542439

$1.49

7

NUT-LOCK(10)

7542439

$1.49

7

NUT-LOCK(10)

7542439

$1.49

7

NUT-LOCK(10)

7542439

$1.49

8

BOLT Substituted by 7515491

7515433

$1.59

8

BOLT Substituted by 7515491

7515433

$1.59

9

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

10

SPRING-COMP,90/180#,10.65,YLW

7042074-216

Unavailable

11

SHK,GAS,ARVIN,11.09X16.35

7041918

Unavailable

12

RING,SPRING PRELOAD ADJ.

5431734

$52.60

13

RETAINER,SPRING,BODY,THREADED

1500063

$44.51

14

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

14

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

14

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

15

WSHR-.813X.406X.105-Y

7555832

$2.39

15

WSHR-.813X.406X.105-Y

7555832

$2.39

16

ARM-STEERING,MACHINED,EDGE

5132728

$79.99

17

WASHER(10)

7555797

$3.99

17

WASHER(10)

7555797

$3.99

18

ASM-TRAILING ARM,SVC,LH,I BLUE (Incl. 21,22)

1821165-312

$344.99

18

ASM-TRAILING ARM,SVC,RH,I BLUE

1821166-312

Unavailable

19

WASHER(10)

7555820

$3.99

20

CUP,TRAILING ARM MNT

5132364

$20.22

21

BEARING-SPHERICAL,7/16,PLASTIC

7061042

$31.99

22

RING,RETAINING(10)

7710437

$3.19

23

BOLT

7512099

$19.99

24

ROD,END-3/8,PL,75�,1.00,RH

7061057

$48.56

25

BUSHING-FLANGE

3573909

$2.39

26

ZERK,FITTING,THREADED(10)

7080433

$1.49

27

BUSHING-TORSION BAR

5433234

$23.99

28

RIVET,(50)

7621477

$1.19

29

BAR,TRSN,1/2,42.5 EDGE,BLK

5244415-067

Unavailable

30

SLIDE-TORSION BAR,1/2

5433884

Unavailable

31

WASHER SPECIAL(10)

7556509

$1.59

32

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

33

SHAFT-SPINDLE,W/STEER STOP,BLK

6230225-067

$219.99

34

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

35

BUSHING,PIVOT,(10)

5010158

$19.99

36

ROD END,RADIUS,1/2

7061060

$48.56

37

NUT-JAM(10)

7542711

$2.39

38

WELD-RADIUS ROD,LOWER,BLUE

1820677-312

$104.99

39

NUT-1/2-20,NYLOK,Y

7547065

$3.99

40

ROD END,RADIUS,7/16

7061061

$48.56

41

BUSHING-SHLDR,.505X.750X1.215

5132780

$7.99

42

BOLT(10)

7512684

Unavailable
