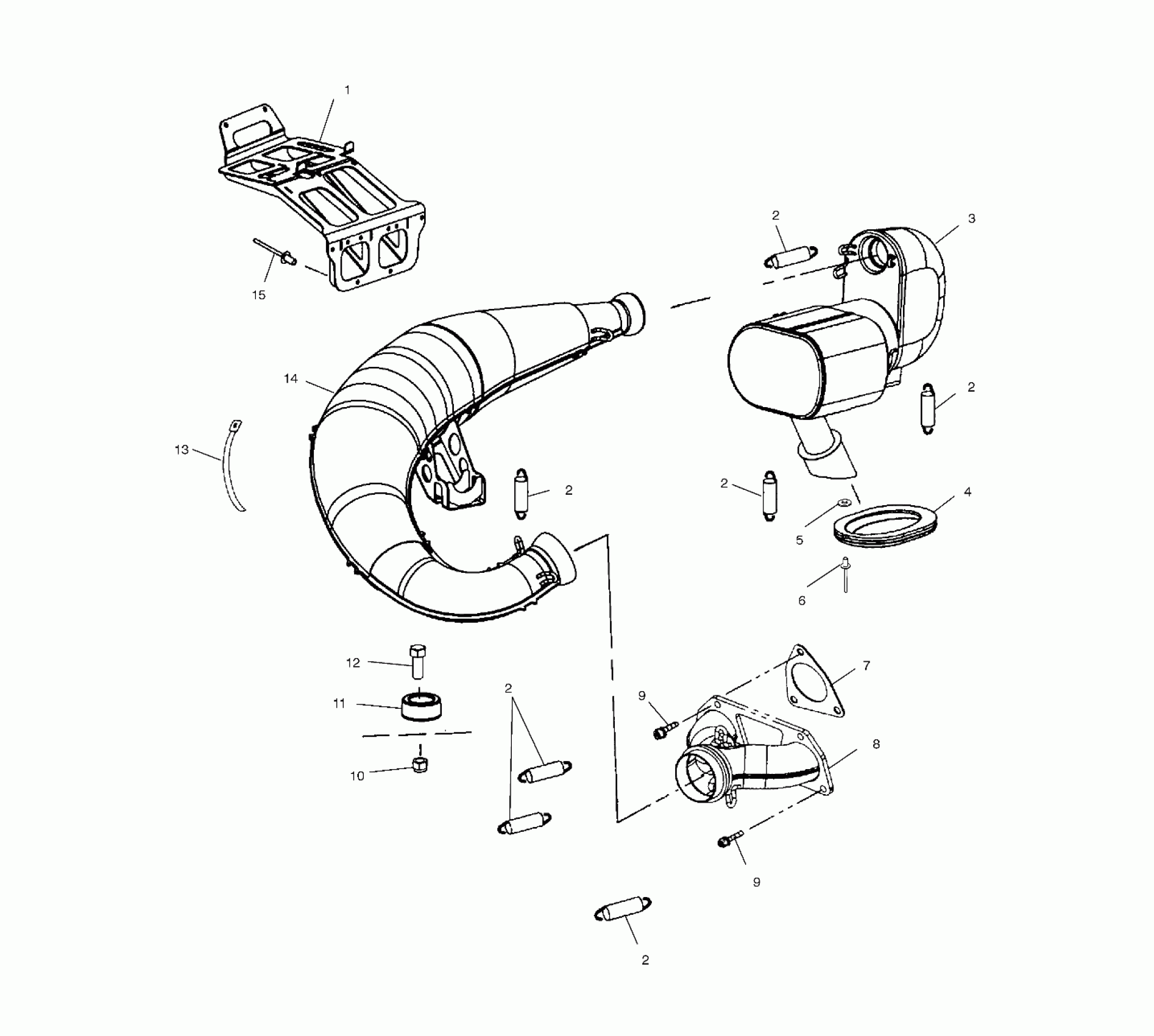

Polaris 600 CLASSIC - S02ND6ES EXHAUST - S02ND6ES (4970437043C005) Diagram

#

Description
Price

1

BRKT,CHASSIS/RESNTR,BLK Substituted by 1261157-029

1261008-029

Unavailable

2

SPRING-EXHAUST

7041687

$5.65

2

SPRING-EXHAUST

7041687

$5.65

2

SPRING-EXHAUST

7041687

$5.65

2

SPRING-EXHAUST

7041687

$5.65

2

SPRING-EXHAUST

7041687

$5.65

2

SPRING-EXHAUST

7041687

$5.65

3

WELD-RESONATOR,BLK

1261130-029

$649.99

4

BOOT,EXHAUST,OUTLET

5411684

Unavailable

5

BURR,RIVET(50)

7555904

$1.49

6

RIVET, BLIND(50)

7621467

$1.49

7

GASKET-EXHST 440 BASE 500/600

5811838

$8.89

8

MANIFOLD,BLK

1261046-029

Unavailable

9

SCREW(10)

7517322

$2.39

9

SCREW(10)

7517322

$2.39

10

NUT-FLANGED,3/8-16 NYLON-Z

7547180

$2.39

11

DAMPENER-VIBRATIONS

5433576

$11.99

12

SCR-3/8,16X1 1/4 HXSOC CS ZY3

7517935

$2.39

13

CLAMP-WORM DRIVE,.44WX3.75 DIA(10) (.44 x 3.75)

7080812

$19.99

13

CLAMP-WORM DRIVE,.44WX4.25 DIA(10) (.44 x 4.25)

7080813

$3.99

13

CLAMP-WORM DRIVE,.44WX6.50 DIA(10) (.44 x 6.50)

7080811

$11.99

14

MATTE,SOUND

5830111

$86.51

14

MATTE,SOUND,BTM.

5830126

Unavailable

14

TUNED PIPE,ASM

1261007

Unavailable

14

TUNED PIPE,WELD,BLK

1261048-029

$504.99

14

COVER,TUNED PIPE,TOP

5244398

Unavailable

14

COVER,TUNED PIPE,BOTTOM

5244399

Unavailable

15

RIVET-3/16-.090-.290

7661637

$1.49
