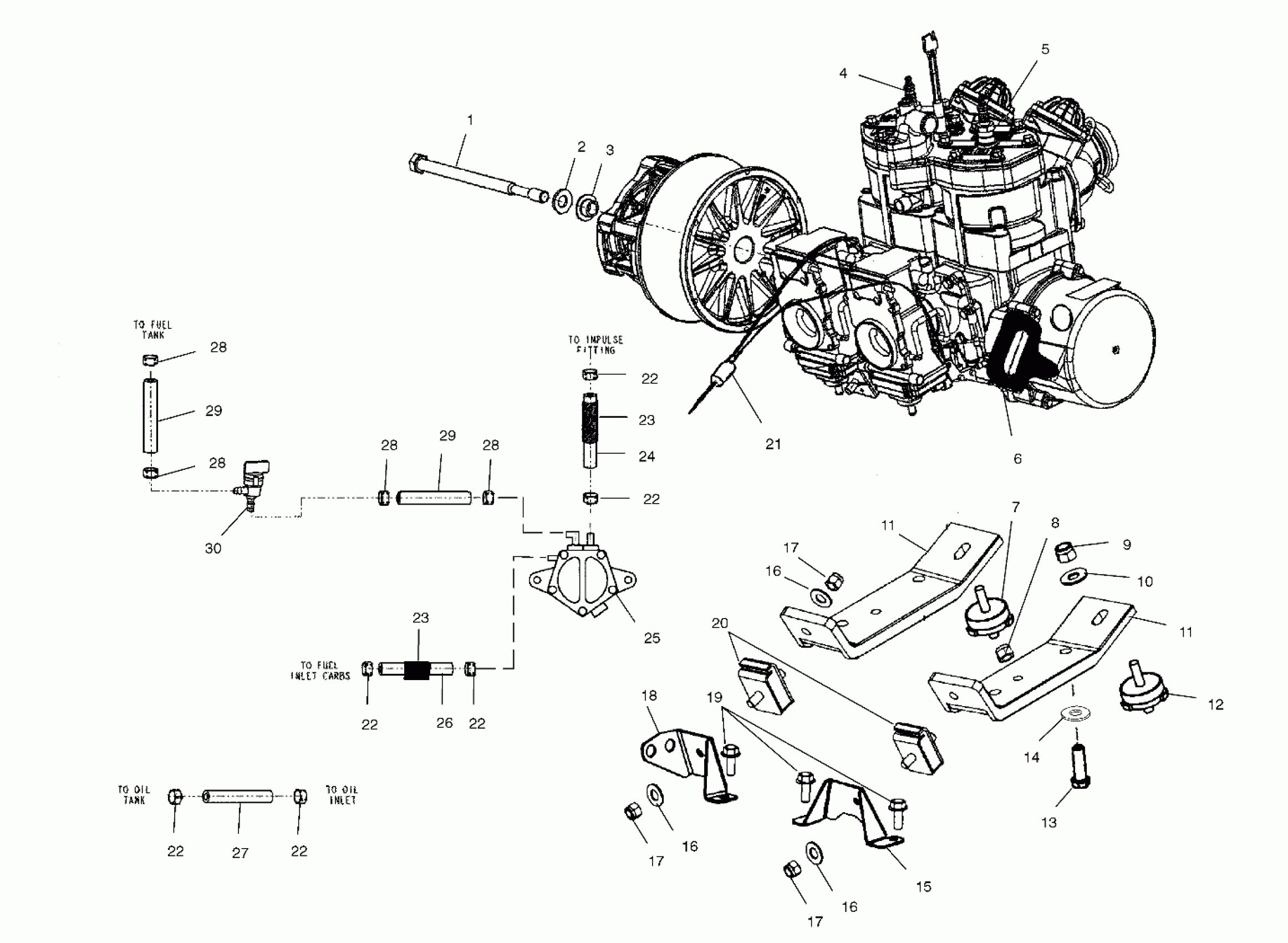

Polaris 600 CLASSIC - S02ND6ES ENGINE MOUNTING - S02ND6ES (4970437043C006) Diagram

#

Description
Price

1

SCREW,M14X1.5X215

7517501

Unavailable

2

WASHER(10)

7556003

$6.39

3

WASHER,CLUTCH RET.

5131872

Unavailable

4

SP.PLUG,CHAMPION RN57Y CC (8)

3070190

$3.99

5

KIT-SHT BLK S60-44-02 The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is required for warranty c

2201935

Unavailable

6

HANDLE-RECOIL,BLK

5431499-070

$15.48

7

MOUNT-ENGINE,3/8-16

3021220

Unavailable

8

NUT-FLANGED,3/8-16 NYLON-Z

7547180

$2.39

9

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

10

WASHER(10)

7555893

$1.49

11

STRAP-ENGINE MOUNT,S44,LH

5245465

$74.39

11

STRAP-ENGINE MOUNT,S44,RH

5245474

$37.11

11

STRAP-ENGINE MOUNT,S44,LH

5245465

$74.39

11

STRAP-ENGINE MOUNT,S44,RH

5245474

$37.11

12

MOUNT-ENGINE,3/8-16 50 DUR

3021290

Unavailable

13

BOLT(10)

7512539

$3.99

14

WASHER LOCK(10)

7553101

$3.99

15

BRKT-ENGINE MOUNT,RH,FORMED

5245044

Unavailable

16

WASHER(10)

7555806

$1.49

16

WASHER(10)

7555806

$1.49

17

NUT,FLEXLOCK,(10)

7547008

$6.39

17

NUT,FLEXLOCK,(10)

7547008

$6.39

17

NUT,FLEXLOCK,(10)

7547008

$6.39

18

WELD-ENG MOUNT BRKT,LH

1013397

$24.27

19

SCR-3/8-16X1-P30-SPEC-Y

7517854

$5.59

20

MOUNT-ENGINE,3/8-16,RECT

3021206

$60.70

21

CABLE,THROTTLE,TWIN

7080867

$36.79

22

HOSE CLAMP, RED

7080003

$1.49

22

HOSE CLAMP, RED

7080003

$1.49

22

HOSE CLAMP, RED

7080003

$1.49

22

HOSE CLAMP, RED

7080003

$1.49

22

HOSE CLAMP, RED

7080003

$1.49

22

HOSE CLAMP, RED

7080003

$1.49

23

DESC NOT_AVAILABLE

8360052-15

Unavailable

23

DESC NOT_AVAILABLE

8360052-15

Unavailable

24

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

25

PUMP-FUEL MIK 62 1/4" XC S/BLK

2520259

Unavailable

26

FUEL,LINE,ETHER,RED,5/16" Substituted by 8350017-160

8350017-600

Unavailable

27

Line, Fuel

8450003-1525

Unavailable

28

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

28

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

28

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

28

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

29

TUBING-ETHER ERETHNE,160CM,SVC [Item NotAvailable]

8350018

Unavailable

29

TUBING-ETHER ERETHNE,160CM,SVC [Item NotAvailable]

8350018

Unavailable

30

Valve, Fuel

7052249

$24.27
