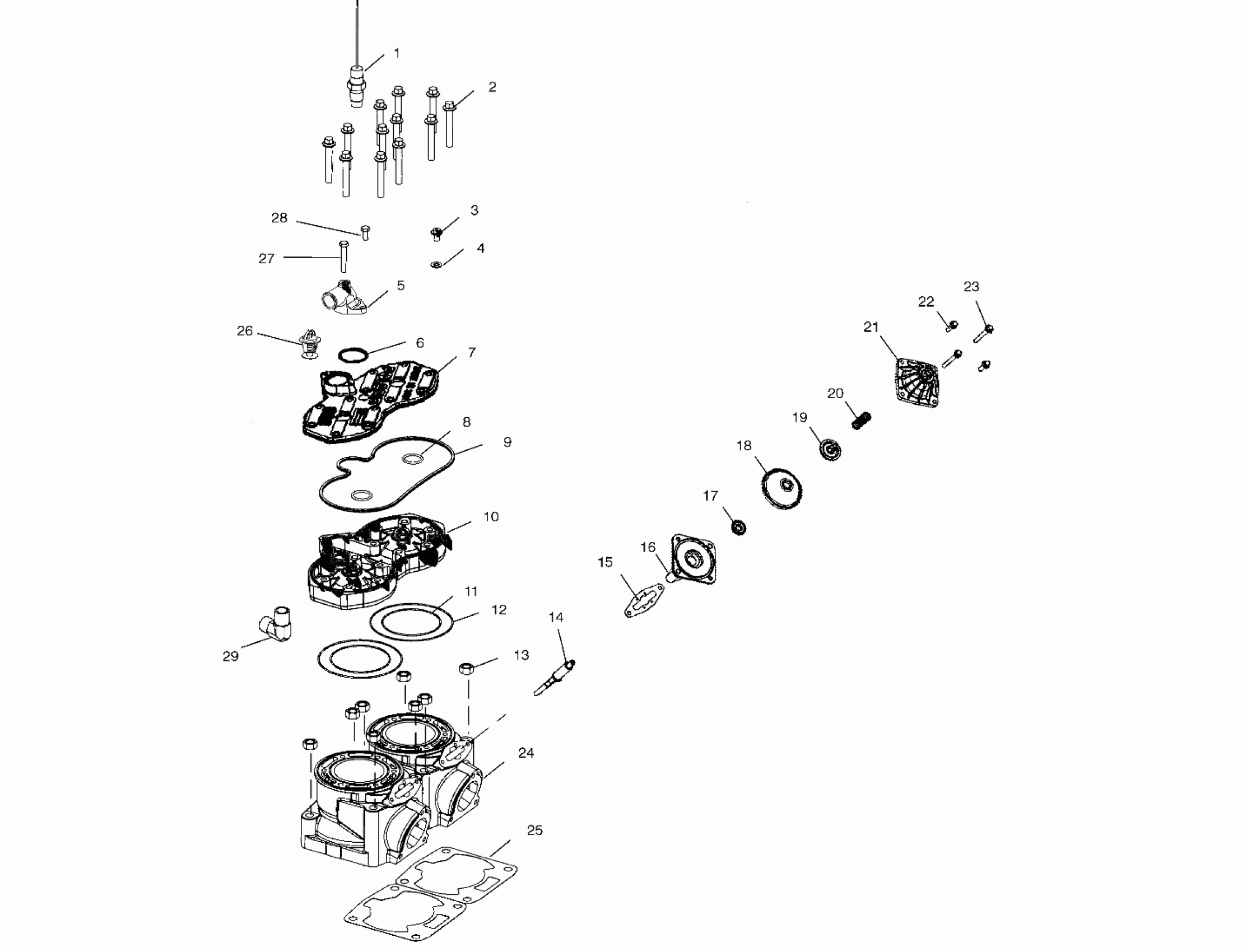

Polaris 600 CLASSIC - S02ND6ES CYLINDER - S02ND6ES (4970437043C008) Diagram

#

Description
Price

1

SENSOR-THERMISTOR W/SILCN PAD

4010614

$36.41

2

SCREW,M8X1.25X55

7517533

$4.79

3

SCREW,M6X1.0 X 13,SL/HX/FL-Z

7517679

$13.59

4

WASHER,FLAT,(10)

7555998

$1.49

5

COVER-THERMOSTAT,M6 BLEED LG

5630992

Unavailable

6

O-RING,LIPSEAL

5411521

$24.19

7

COVER-HEAD 77.25 600 REDE-COAT

5631199-366

Unavailable

8

O-RING

5411411

$1.49

9

SEAL,MLDD.HEAD,TWIN

5411465

$32.37

10

HEAD-CYL 77.25MM,TWN SNO 3/8

3021278

Unavailable

11

O-RING

5410932

$20.22

12

O-RING

5411359

$15.99

13

NUT(10)

7547013

$1.99

14

VALVE GUILLOTINE 3.5,600EV,ASM.

1201958

Unavailable

15

GASKET-EXHAUST VALVE

5812350

$6.46

16

ASM-BASE EXH VALVE DOM

1202216

Unavailable

17

WASHER-BELLOWS,EXH VALVE,DOM

5132950

Unavailable

18

BELLOWS-EXHAUST VALVE,DOM

5412056

$44.51

19

CAP,EXH VALVE

5631152

Unavailable

20

SPRING,PINK,EV

7041704-03

$28.32

21

HOUSING-BELLOWS,EXH VALVE DOM

5434175

Unavailable

22

SCREW ,(10)

7516820

$5.59

23

SCR-M6X1.0X50.0 HX/FL-YD

7517932

$3.99

24

CYLINDER-77.25 SNO EV

3021257

$531.75

25

GASKET-CYLINDER BASE

5811916

$24.99

26

THERMOSTAT-50C TBYS SS STEM

7052267

$40.46

27

SCREW

7516818

$5.59

28

SCREW(10)

7516822

$2.39

29

FITTING,90DEG,1/2ID.HOSE Substituted by 7052312

7052221

Unavailable
