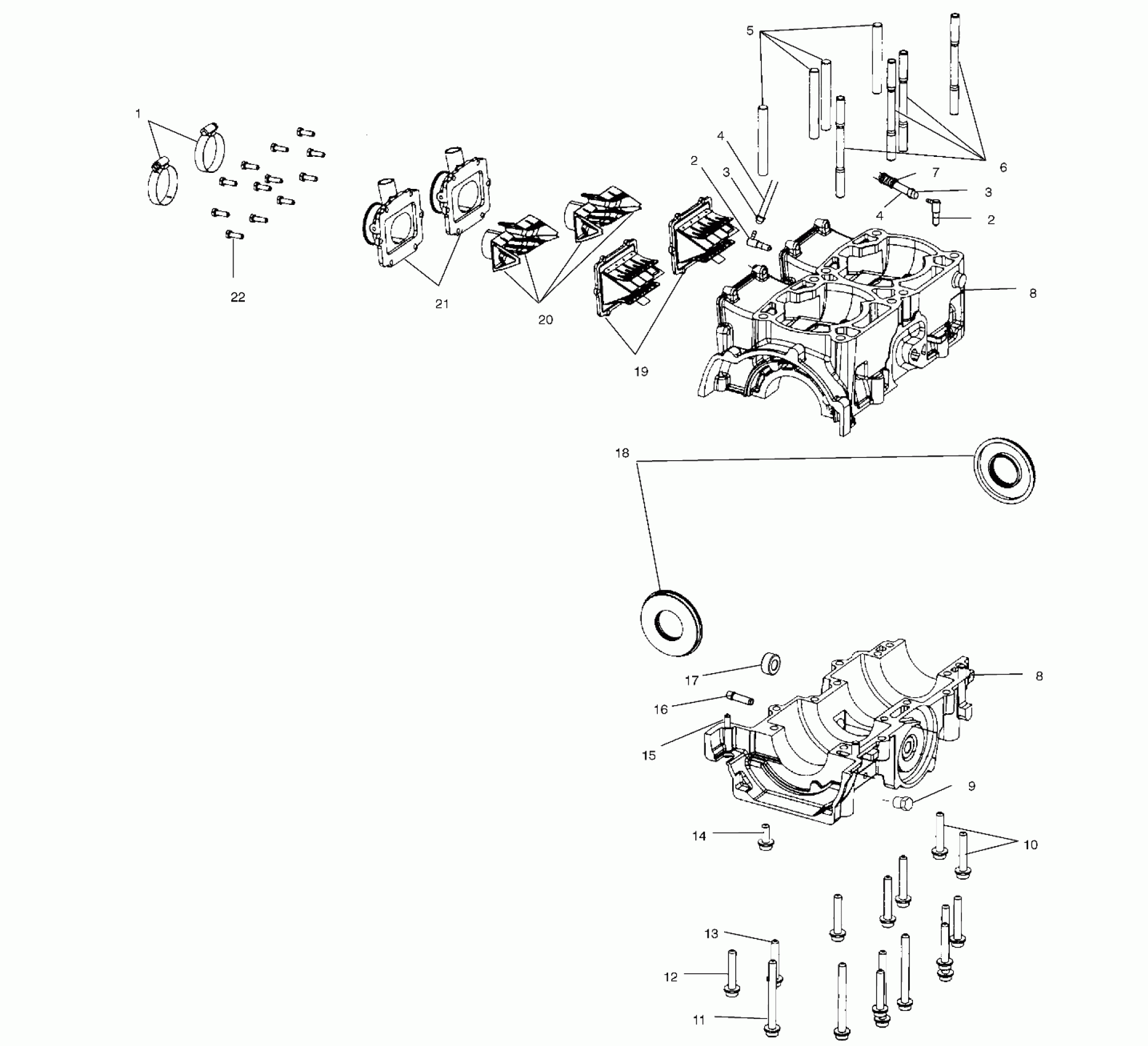

Polaris 600 CLASSIC - S02ND6ES CRANKCASE - S02ND6ES (4970437043C007) Diagram

#

Description
Price

1

CLAMP,HOSE,SS,(10)

7080681

$9.59

2

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37

2

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37

3

Clamp, Hose

7080603

$1.59

3

Clamp, Hose

7080603

$1.59

4

LINE, OIL

8450061-600

Unavailable

4

LINE, OIL

8450061-600

Unavailable

5

STUD,CYL 81MM

5132196

$20.63

6

STUD,CYL 118MM

5132197

$21.27

7

TUBING, CONVOLUTED

8360056-25

$4.03

8

KIT-CRANKCASE 1202176 (Incl. 5,6,9-15)

2201931

$444.99

8

KIT-CRANKCASE 1202176 (Incl. 5,6,9-15)

2201931

$444.99

9

PLUG Substituted by 7052311

7051529

$15.99

10

BOLT,M8X1.25X55

7517785

$9.59

11

BOLT,M8X1.25X80

7517784

$8.79

12

SCREW

7516825

$5.59

13

BOLT,M8X1.25X45

7517786

$6.39

14

SCREW

7517577

$3.99

15

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

16

Fitting, Straight

7052145

$9.59

17

Bearing, Pumpshaft

5010390

Unavailable

18

SEAL,FLANGED

5411394

$29.99

19

VALVE,REED

1201825

$134.99

20

STUFFER,REED,75.5MM(38MM.CARB)

5432852

Unavailable

21

ADAPTER,CARB,TM/RACK,440 BASE

1253414

Unavailable

22

SCREW(10)

7516822

$2.39
