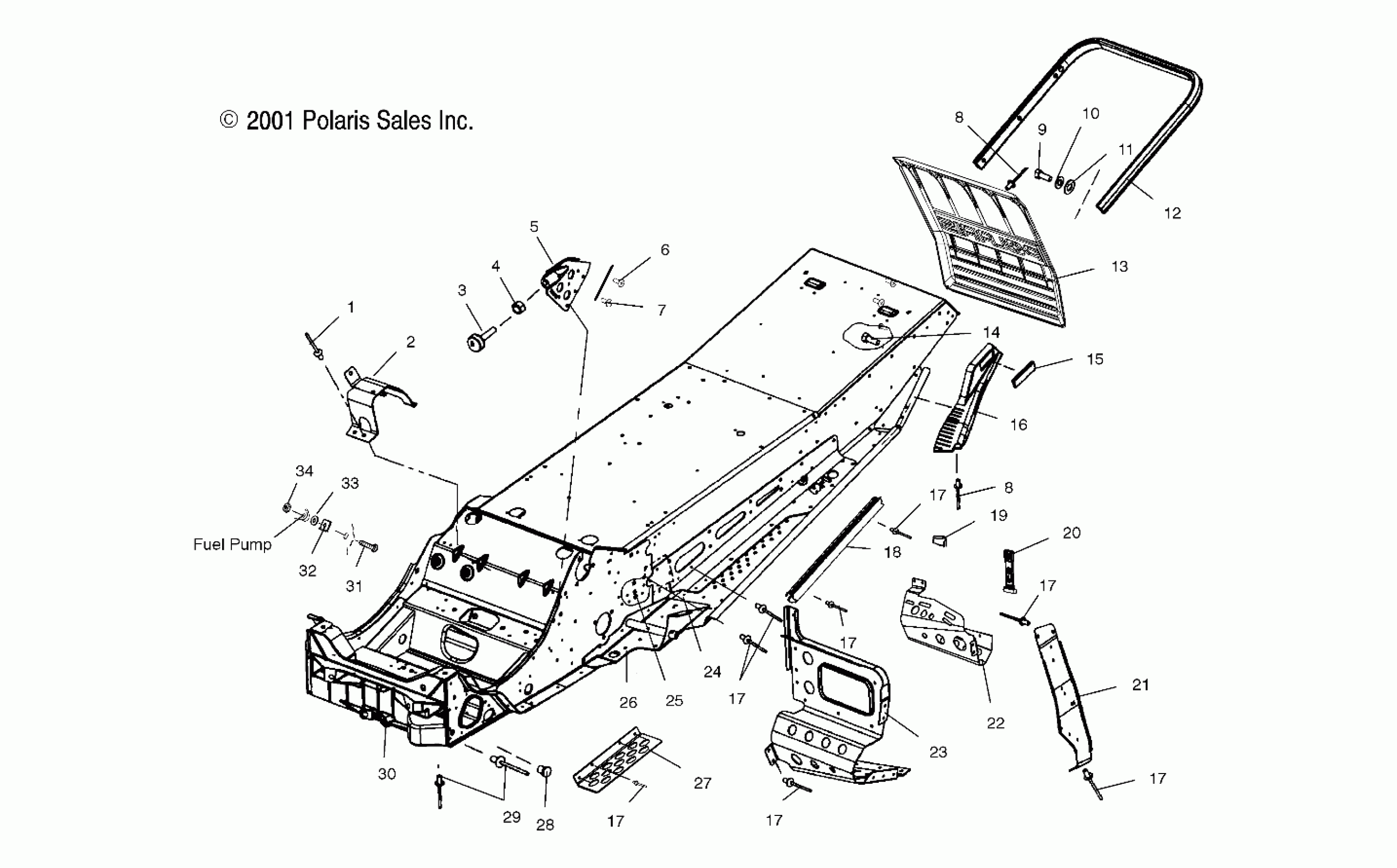

Polaris 600 CLASSIC - S02ND6ES CHASSIS - S02ND6ES (4970437043A003) Diagram

#

Description
Price

-

ASM-CHASSIS,SVC,M-10,NATURAL

1013687-309

Unavailable

1

RIVET,3/16X.402(50)

7621432

$1.49

2

BRKT-JACKSHAFT,SHIELD

5245003

$13.19

3

STOP,TORQUE COURSE 3/8-16

3021104

$20.22

4

NUT(10)

7542404

$1.59

5

WELD-TOQUE STOP,S44

1013379

Unavailable

6

SCREW

7517632

$5.59

7

SCR-3/8-16X1-P30-SPEC-Y

7517854

$5.59

8

RIVET(50)

7621472

$1.49

8

RIVET(50)

7621472

$1.49

9

BOLT(10)

7512240

$3.99

10

LOCK WASHER(10)

7552801

$1.59

11

WASHER(10)

7558301

$1.49

12

BUMPER,REAR

2632165-309

Unavailable

13

FLAP-SHORT,EDGE,BLUE W/WHITE

5433961-1118

Unavailable

14

SCREW(10)

7517441

$2.39

15

REFLECTOR ASM,RED

2670133

$5.75

16

ASM-SNOWSKIRT/REFL,LH,BLK

2632443-070

$64.75

16

ASM-SNOWSKIRT/REFL,RH,BLK

2632444-070

$55.99

17

RIVET-3/16-.090-.290

7661637

$1.49

17

RIVET-3/16-.090-.290

7661637

$1.49

17

RIVET-3/16-.090-.290

7661637

$1.49

17

RIVET-3/16-.090-.290

7661637

$1.49

17

RIVET-3/16-.090-.290

7661637

$1.49

17

RIVET-3/16-.090-.290

7661637

$1.49

17

RIVET-3/16-.090-.290

7661637

$1.49

18

BRACE-TUNNEL ROLL

5245118

$23.81

19

EXTRUSION,CLUTCHGUARD

5521238

$6.46

20

STRAP-AIRBOX TOP

5433150

$24.27

21

SUPPORT-FOOTREST,LH

5242741

$19.68

21

SUPPORT-FOOTREST,RH

5242742

$32.37

22

MOUNT-CONSOLE,TOE CLIP,LH

5245457

Unavailable

22

MOUNT-CONSOLE,TOE CLIP,RH

5245458

Unavailable

23

FOOTREST-LH,.080

5245288

Unavailable

23

Footrest, RH

5242740

Unavailable

24

Brace, Lower, Tunnel, LH

5244997-067

$19.83

24

Brace, Lower, Tunnel, RH

5244998-067

$19.83

25

Pad, Suspension, Front, LH

5244999-067

Unavailable

25

Pad, Suspension, Front, RH

5245001-067

$24.27

26

KIT-MOUNT,TRAILING ARM,LH

2202059

$213.00

26

KIT-MOUNT,TRAILING ARM,RH

2202060

Unavailable

27

GUARD-BELT,EDGE

5245066

$8.98

28

PLUG, HOLE(10)

7080416

$5.65

29

Rivet

7661639

Unavailable

30

Bulkhead, Front

5132292

$115.99

31

BOLT-CARRIAGE(10)

7512275

$3.99

32

SPEED NUT(10)

7670021

$6.99

33

WASHER,NYLON

7555932

$2.39

34

NUT-LOCK(10)

7542122

$1.49
