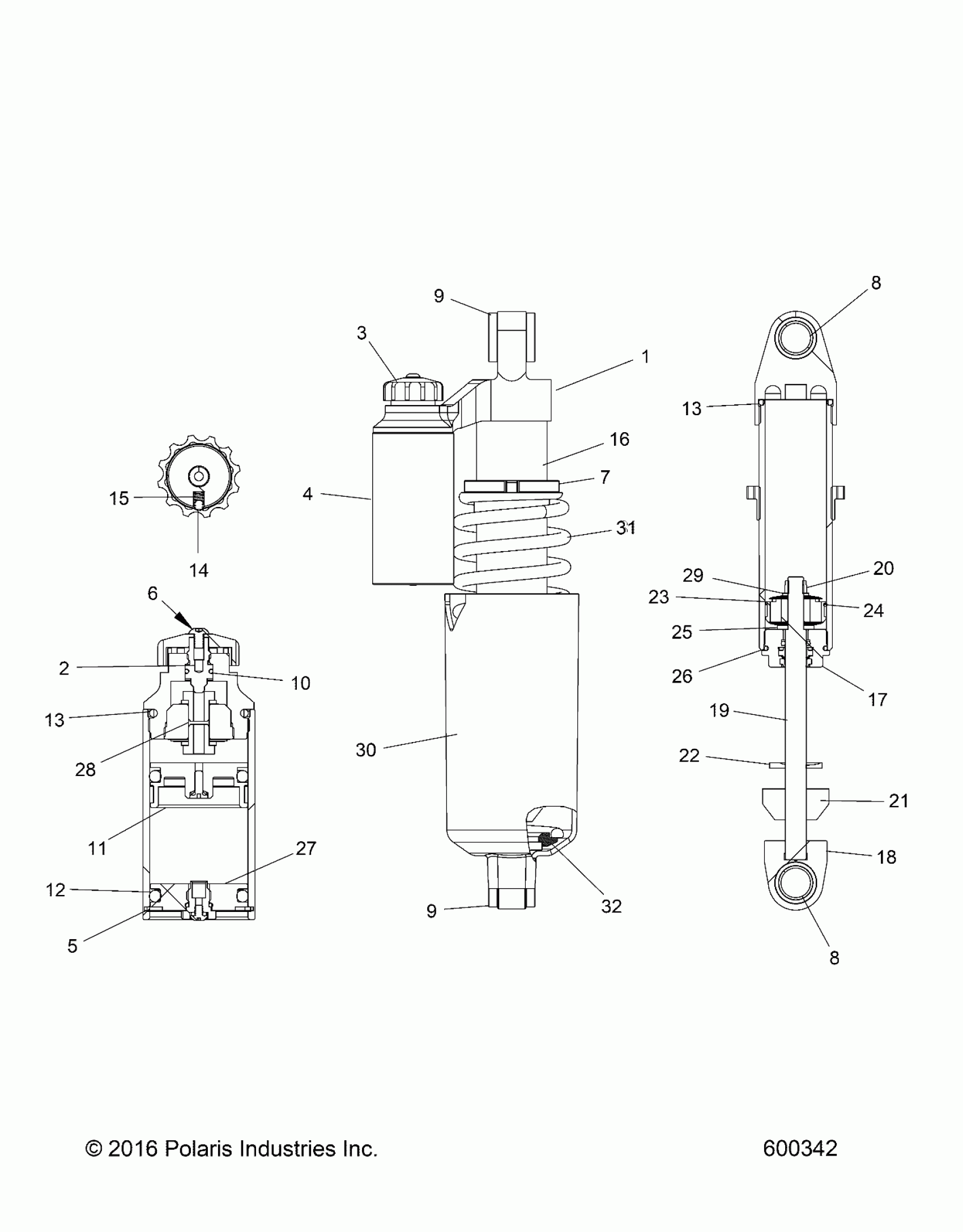

Polaris 600 AXYS SWITCHBACK ASSAULT 144 ALL OPTIONS (R01) - S21EEC6PS SUSPENSION, SHOCK, FRONT TRACK (BLACK) - S21EEC6PS ALL OPTIONS (600342) Diagram

#

Description
Price

-

SHOCK, FT, BLACK, WALKER EVANS

7044575

$593.55

1

PIGGY BACK, 65DEGREE, CLR

1800646

$214.99

2

STUD, CLICKER

1800352

$31.99

3

CLICKER KNOB, BLK

1800460

$97.13

4

BODY, RESERVOIR, BLK

1800419

$93.08

5

SNAP RING

1800159

$5.59

6

SCREW, BTN HD

1800357

$3.19

7

RETAINER, SPRING NUT

1800046

$36.41

8

SLEEVE

1800405

$28.32

8

SLEEVE

1800405

$28.32

9

BUSHING

1800406

$5.65

9

BUSHING

1800406

$5.65

10

O-RING 2-012

1800501

$6.39

11

ASM., IFP PISTON

1800739

$44.99

12

O-RING 2-324

1800184

$5.65

13

O-RING BODY LOOP

1800030

$2.02

13

O-RING BODY LOOP

1800030

$2.02

14

BALL, DETENT

1800127

$6.39

15

SPRING-COMP .025X.3, 40.5#

1800128

$10.39

16

BODY, FT, 5.96L, BLK

1800647

$119.99

17

ASM., SEAL HEAD

1800788

$140.38

18

LOOP, SHAFT

1800408

$129.51

19

SHAFT, .50x6.73L

1800789

$116.17

20

NUT, CRIMP

1800031

$3.99

21

BUMP STOP

1800649

$43.56

22

SCRAPER, W/GRVS, .50 SHAFT

1800790

$28.32

23

PISTON, CONVEX

1800001

$125.46

24

WEAR BAND

1800297

$34.99

25

WASHER

1800204

$3.99

26

O-RING 2-125

1800027

$2.02

27

ASM., END CAP, CLR

1800740

$94.99

28

ASM., CLICKER PISTON

1800791

$79.99

29

WASHER

1800050

$3.99

30

SHIELD, SHOCK

5452841

$28.32

31

SPRING, COMP., 280#, BLACK

7043957-067

$58.08

32

RETAINER, SPRING, SLOTTED

5020618

$24.99
