Partiron

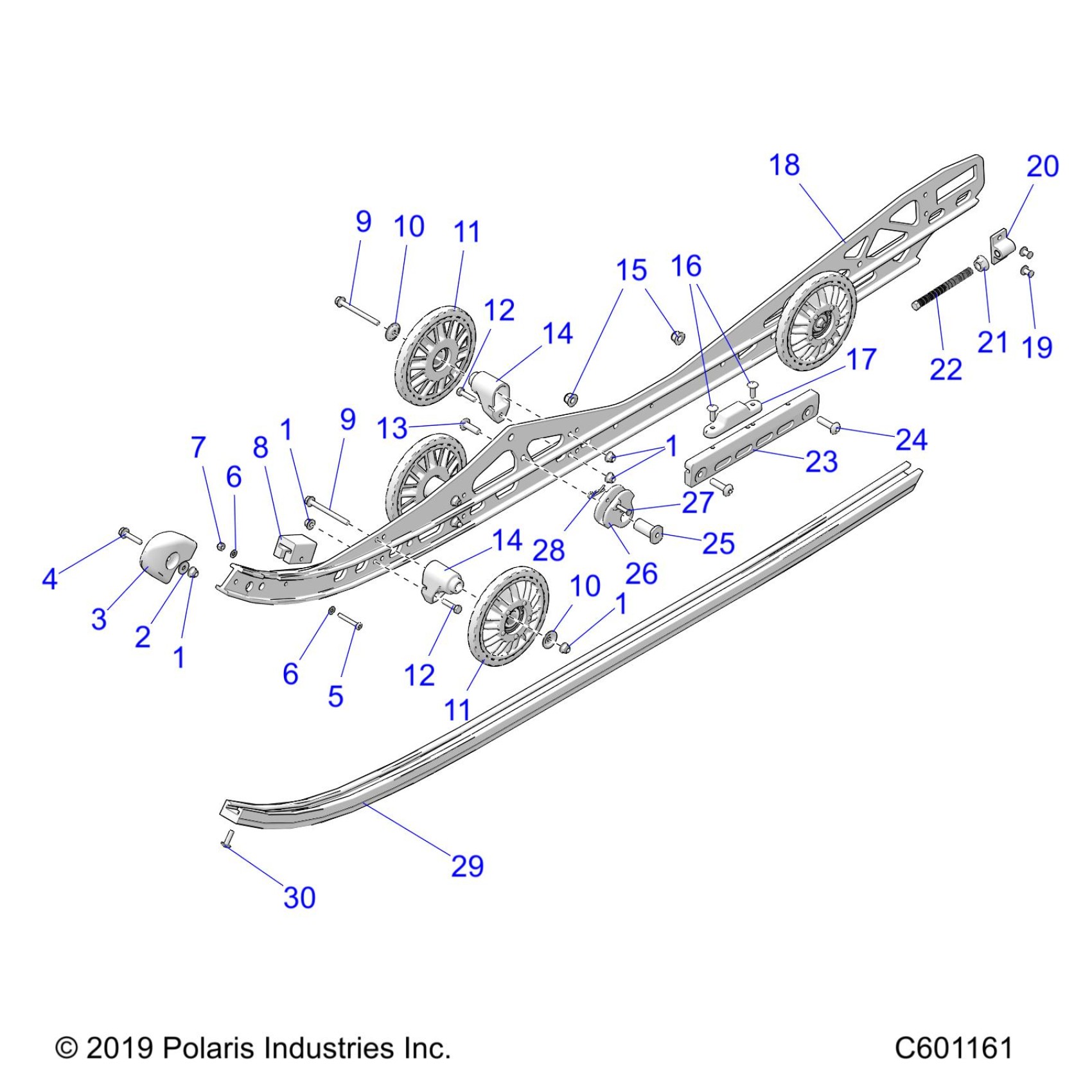

Polaris 600 AXYS SWITCHBACK ASSAULT 144 ALL OPTIONS (R01) - S21EEC6PS SUSPENSION, RAIL, LH/RH - S21EEC6PS ALL OPTIONS (C601161) Diagram

#

Description
Price

1

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

1

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

1

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

1

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

2

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

3

CAP, RAIL TIP

5438374

$20.22

4

SCR-M6X1.0X30 8.8 HXFL ZOD

7518993

$2.39

5

SCREW-#10-24X1.5,TRX/PN MC-Y

7510504

$6.76

6

Washer, Flat

7555783

$3.99

6

Washer, Flat

7555783

$3.99

7

NUT-NYLOC 10-24 Y

7541925

$1.49

8

BUMPER, JOUNCE, FRONT

5521499

$8.89

9

SCR-HXFL- M6X1.0X70 10.9 ZOD

7519908

$4.79

9

SCR-HXFL- M6X1.0X70 10.9 ZOD

7519908

$4.79

10

WASHER, OFFSET

7556799

$3.19

10

WASHER, OFFSET

7556799

$3.19

11

ASM-WHEEL SPOKED 5.62

1590632

$38.39

11

BEARING-.7874X1.6535X.4724 NSK [1 PER WHEEL]

3515142

$19.99

11

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

11

ASM-WHEEL SPOKED 5.62

1590632

$38.39

11

BEARING-.7874X1.6535X.4724 NSK [1 PER WHEEL]

3515142

$19.99

11

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

12

SCR-HH-M6X1.0X25 8.8 ZPB

7517510

$4.79

12

SCR-HH-M6X1.0X25 8.8 ZPB

7517510

$4.79

13

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

14

BLOCK, WHEEL MOUNT

5632808

$24.27

14

BLOCK, WHEEL MOUNT

5632808

$24.27

15

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

16

SCR-1/4-20X3/4,TR/TX/TAP-Y

7515199

$1.49

17

BUMPER

5432166

$5.59

18

ASM., RAIL, 144 SVC LH NATURAL [COLOR OPTION][INCL. 15,19,20,23,24]

1544098-309

$664.99

18

ASM., RAIL, 144 SVC RH NATURAL [COLOR OPTION][INCL. 15,19,20,23,24]

1544099-309

$664.99

18

ASM., RAIL, 144 SVC LH BLACK [COLOR OPTION][INCL. 15,19,20,23,24]

1544098-067

$664.99

18

ASM., RAIL, 144 SVC RH BLACK [COLOR OPTION][INCL. 15,19,20,23,24]

1544099-067

$664.99

18

ASM., RAIL, 144 SVC LH RED [COLOR OPTION][INCL. 15,19,20,23,24]

1544098-293

$664.99

18

ASM., RAIL, 144 SVC RH RED [COLOR OPTION][INCL. 15,19,20,23,24]

1544099-293

$664.99

18

ASM., RAIL, 144 SVC LH LIME SQUEEZE [COLOR OPTION][INCL. 15,19,20,23,24]

1544098-630

$664.99

18

ASM., RAIL, 144 SVC RH LIME SQUEEZE [COLOR OPTION][INCL. 15,19,20,23,24]

1544099-630

$664.99

18

ASM., RAIL, 144 SVC LH GHOST GRAY [COLOR OPTION][INCL. 15,19,20,23,24]

1544098-728

$664.99

18

ASM., RAIL, 144 SVC RH GHOST GRAY [COLOR OPTION][INCL. 15,19,20,23,24]

1544099-728

$664.99

18

ASM-RAIL 144 SVC LH POLARISBLU [COLOR OPTION][INCL. 15,19,20,23,24]

1544098-751

$664.99

18

ASM-RAIL 144 SVC RH POLARISBLU [COLOR OPTION][INCL. 15,19,20,23,24]

1544099-751

$664.99

18

ASM-RAIL 144 SVC LH PLUM CRAZY [COLOR OPTION][INCL. 15,19,20,23,24]

1544098-784

$664.99

18

ASM-RAIL 144 SVC RH PLUM CRAZY [COLOR OPTION][INCL. 15,19,20,23,24]

1544099-784

$664.99

19

RIVET

7621501

$2.39

20

BLOCK-IDLER BOLT ADJ METRIC

5136570

$34.99

21

NUT-HXFL-M10X1.50 10 ZPC

7547017

$5.59

22

SCR-HXFL-M10X1.5X100 8.8 ZOD

7519167

$11.99

23

PLATE, RAIL REINFORCE

5142015

$199.99

24

SCR-M8X1.25X30 8.8 TR/TX ZOD

7518953

$1.59

25

SHAFT, SPRING ROLLER

5136687

$10.51

26

GUIDE, SPRING, SQUARE

5434334

$28.32

27

Pin, Clevis

7661123

$3.99

28

PIN, HITCH

7661644

$2.39

29

HI-FAX,.45/74",SERVICE,BLK

5521633-070

$40.46

30

SCR-M6X1.0X20 TR/TX/TAP ZOD

7518976

$3.19
