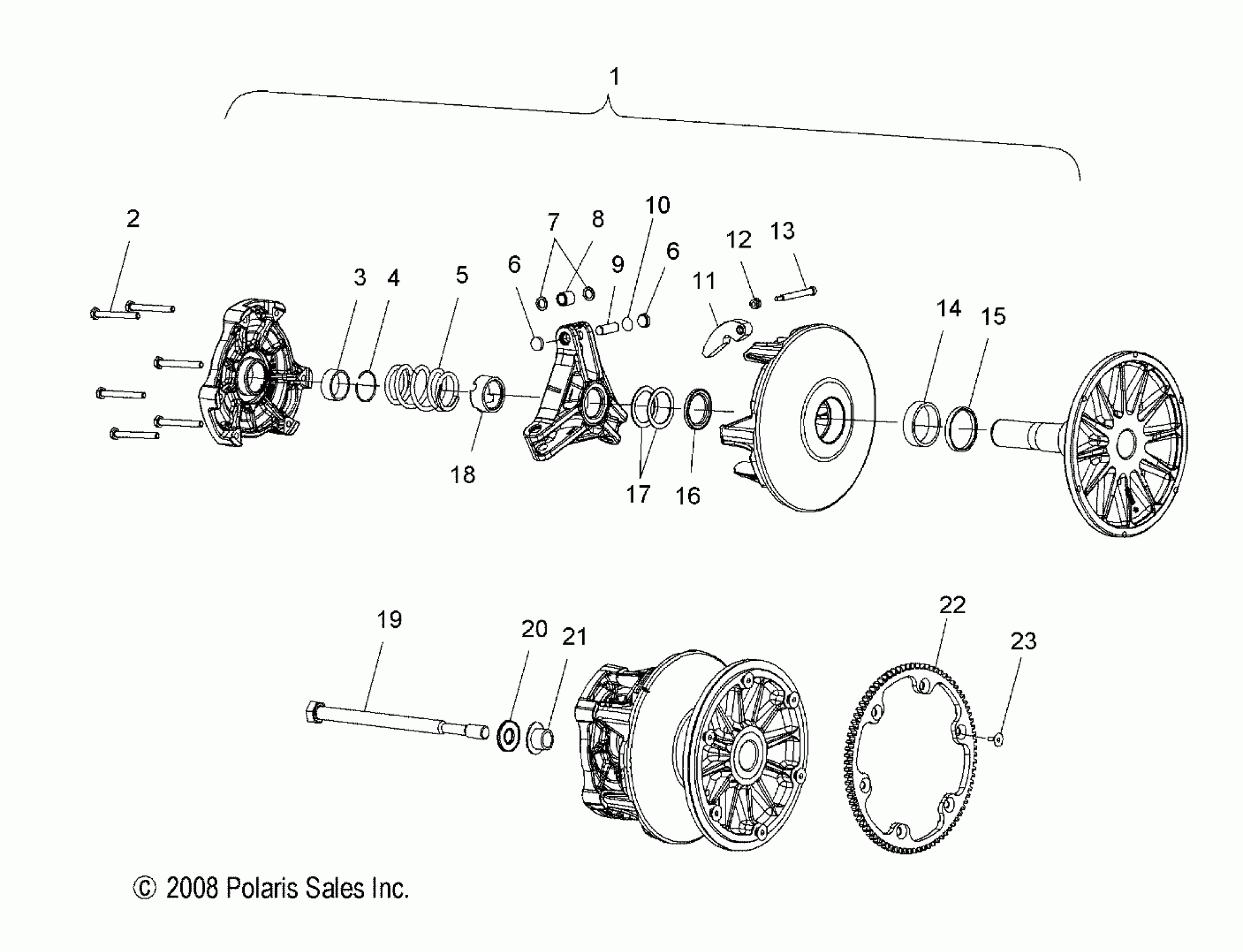

Polaris 600 AXYS INDY XC 129 ALL OPTIONS (R01) - S21EKP6PS DRIVE TRAIN, CLUTCH, PRIMARY - S21EKP6PS ALL OPTIONS (49SNOWDRIVECLUTCH09600TRG) Diagram

ASM-DRIVE CLUTCH BSC 10:1 ES [ELECT. START][INCL. 2-4,6-10,12-18]

1323663

$639.99

ASM., DRIVE CLUTCH, BASIC BT [NON-ELECT. START][INCL. 2-4,6-10,12-18]

1323664

$699.99

SCR-1/4-20X2 1/4 HX FLNG GR5-Y

7518349

$1.49

BEARING-COVER,GARMAX

3576516

$28.32

RING-RETAINING,COVER

7710417

$1.49

SPRING, DRIVE CLUTCH, 140/330, BLACK

7043829

$56.65

BUTTON, GUIDE

5430445

$6.39

BUTTON, GUIDE

5430445

$6.39

WASHER,MULTILUBE

5430945

$1.59

ASM-ROLLER AND BUSHING

1321622

$32.37

PIN, ROLLER

5133079

$6.39

Kit - Shim, Drive Clutch

2200387

$24.27

ASM., WEIGHT/BUSHING, 10-64

1321585

$40.46

NUT-10-24-FLEX LOC-Z

7541906

$3.19

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

BEARING-SLEEVE

3514641

$19.99

INSERT-MOVEABLE

5010188

$7.99

SHIM-1.25X1.74X.103 STEP

5142519

$11.32

SPACER-1.350 X 1.750 X .050-Y

5210754

$3.19

SPACER-1.350X1.750X.032-Y

5210753

$2.39

SPACER-1.350X1.750X.025-Y

5242981

$3.99

SPACER-1.350 X 1.750 X .020-Y

5210752

$1.59

NUT-JAM

5020425

$23.99

SCR-M14X1.5X215,HX,10.9,Y35,R

7518412

$34.99

WSHR-0.5625X1.1X0.109 ZY3 HRD

7556702

$4.79

WASHER-CLUTCH RET,M14

5132441

$23.99

KIT, GEAR, STARTER, RING [INCL. 23]

2870002

$134.99

SCR-SHFL-5/16-18X0.625 GR5 ZY3

7515351

$3.99
