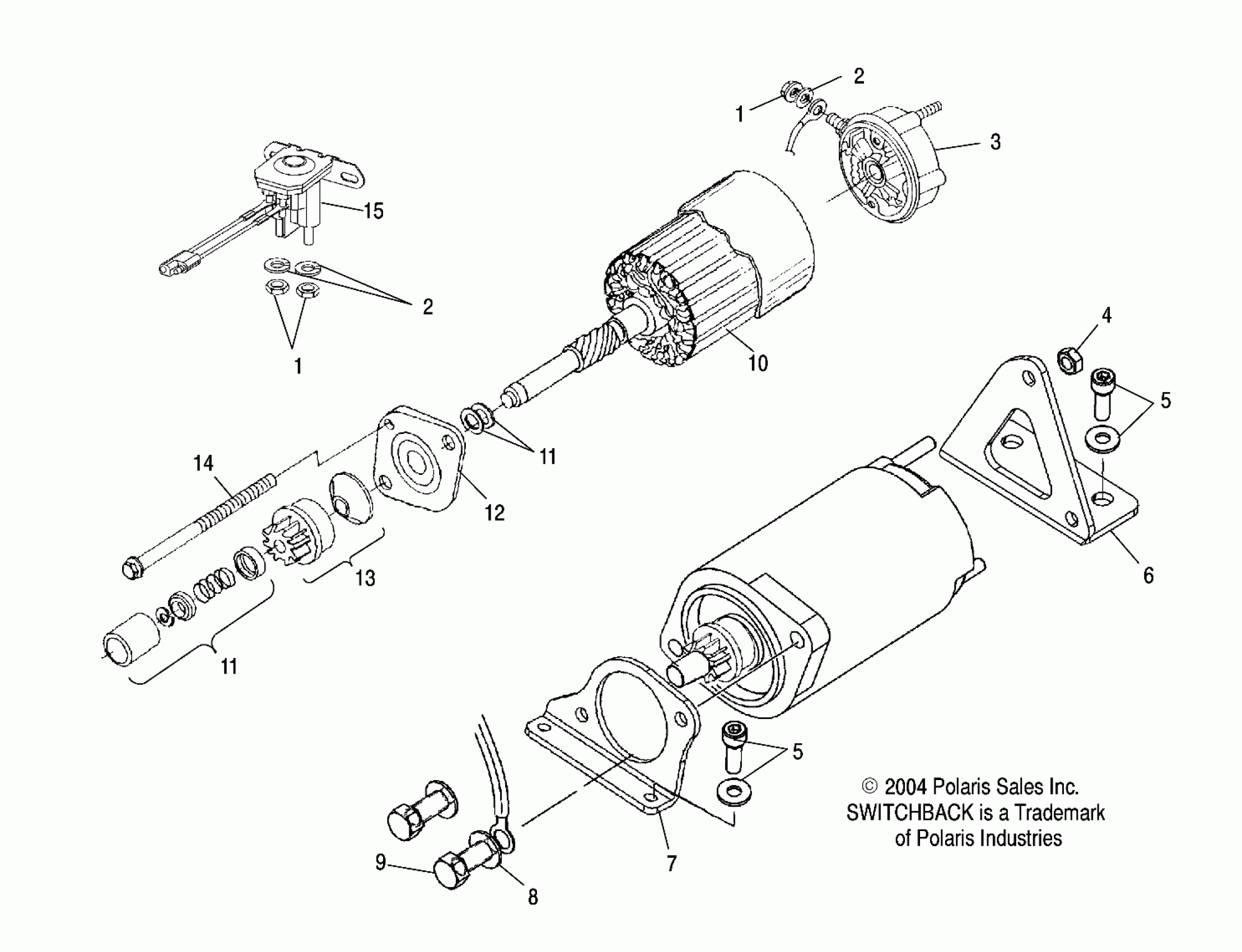

Polaris 600/800 SWITCHBACK F/O - S05NS6ES STARTING MOTOR (800) - S05NS8CS/CSA (4992809280D13) Diagram

#

Description
Price

-

Motor, Starter, Domestic

4170006

Unavailable

-

Kit, Asm., Commutator Cap [Incl. 3]

2200758

$82.39

1

Nut, Hex

7542105

$3.99

1

Nut, Hex

7542105

$3.99

2

WASHER, SPRING LOCK

7552801

$1.59

2

WASHER, SPRING LOCK

7552801

$1.59

3

Kit, Brush and Spring

2200759

$59.99

3

ASM., BRUSH AND SCREW

-------

Unavailable

3

ASM., BRUSH

-------

Unavailable

3

BUSHING, INSULATION

-------

Unavailable

3

WASHER, INSULATION

-------

Unavailable

3

Nut

-------

Unavailable

4

NUT, FLANGED, NYLOK

7542153

$1.59

5

Screw

7517957

Unavailable

5

Screw

7517957

Unavailable

6

Bracket, Starter, Rear

5245780

Unavailable

7

Bracket, Starter, Front

5245781

Unavailable

8

Washer, Spring Lock

7552603

$1.49

9

Screw

7512492

$1.49

10

Kit, Asm., Armature

2200756

$169.99

11

Kit, Drive Hardware

2200755

Unavailable

11

WASHER, CURVED SPRING

-------

Unavailable

11

Washer, Thrust

-------

Unavailable

11

SPACER

-------

Unavailable

11

SPRING, ANTIDRIFT

-------

Unavailable

11

PINION, STOP

-------

Unavailable

11

RING, LOCK

-------

Unavailable

11

COVER, DUST

-------

Unavailable

11

Kit, Drive Hardware

2200755

Unavailable

11

WASHER, CURVED SPRING

-------

Unavailable

11

Washer, Thrust

-------

Unavailable

11

SPACER

-------

Unavailable

11

SPRING, ANTIDRIFT

-------

Unavailable

11

PINION, STOP

-------

Unavailable

11

RING, LOCK

-------

Unavailable

11

COVER, DUST

-------

Unavailable

12

Kit, Asm., Drive Cap

2200757

$59.99

13

Kit, Asm., Drive

2200754

Unavailable

13

PLATE, DRIVE

-------

Unavailable

13

PINION

-------

Unavailable

14

Kit, Screw

2200753

$29.99

14

BOLT, THRU

-------

Unavailable

15

Switch, Magnetic [Incl. 1,2]

4010930

$60.70
