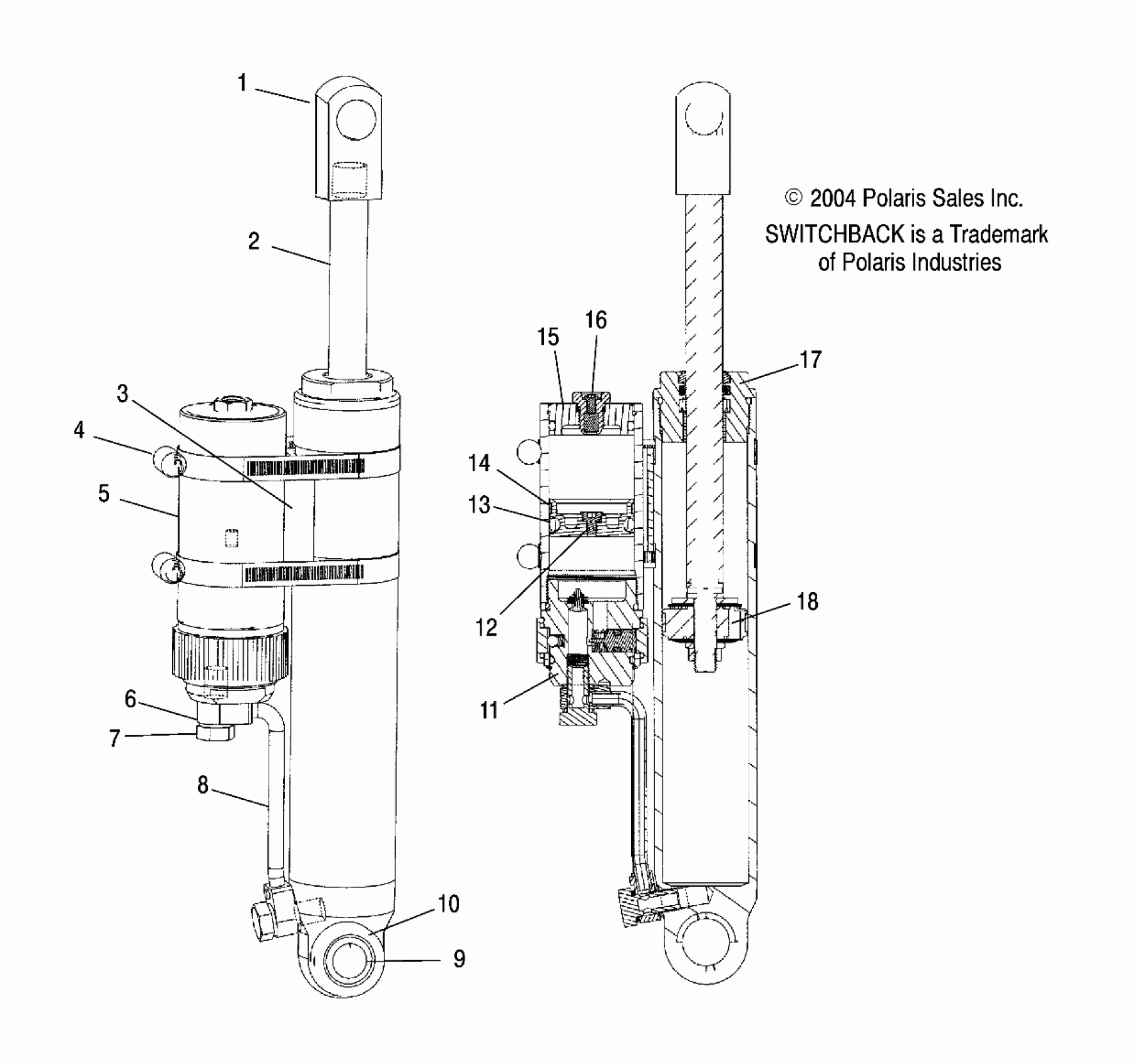

Polaris 600/800 SWITCHBACK F/O - S05NS6ES SHOCK (REAR TRACK) - S05NS6ES/ESA/S05NS8CS/CSA (4992809280C07) Diagram

#

Description
Price

-

Shock, Rear Track

7042176

Unavailable

1

Mount, Upper

1700024

Unavailable

2

Shaft

1700220

Unavailable

3

Isolator

1700162

Unavailable

4

Clamp, Hose

1700197

$21.19

5

Body, Reservoir

1700221

$88.56

6

Washer, Copper

1700201

Unavailable

7

Bolt, Banjo

1700200

Unavailable

8

Hose, Pressure

1700202

$78.39

9

Sleeve

1700069

$15.99

10

Bushing

1700073

$11.99

11

Asm., Valve Body

1700205

$112.37

12

IFP, Screw, Bleed

1700054

$6.19

13

IFP, O-Ring

1700204

Unavailable

14

IFP

1700203

$45.59

15

End Cap, Reservoir w/Valve

1700164

$59.03

15

Cap, End, Reservoir

1700217

$29.99

16

Valve, Pressure w/Screw

1700218

$37.62

16

Male Adapter

1700065

$27.83

17

Asm., Cylinder Head

1700156

$74.99

17

Cylinder, Head O-Ring

1700051

Unavailable

18

Banded Piston

1700110

$34.71
