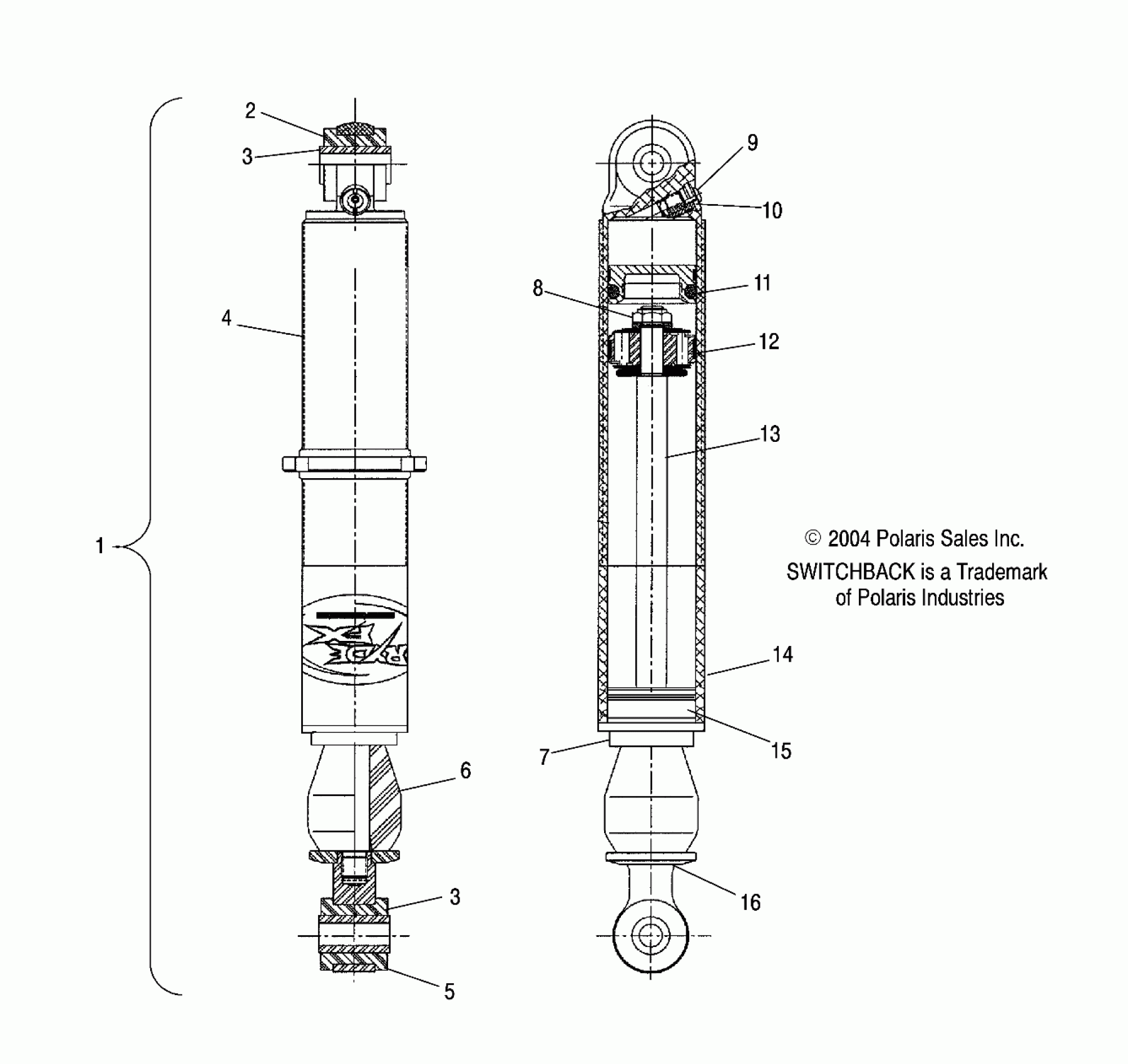

Polaris 600/800 SWITCHBACK F/O - S05NS6ES SHOCK (IFS) - S05NS6ES/ESA/S05NS8CS/CSA (4992809280C05) Diagram

#

Description
Price

1

Shock, IFS

7043083

Unavailable

2

Bushing

1700036

$7.99

3

Sleeve

1700079

$9.59

3

Sleeve

1700079

$9.59

4

Nut, Spring Retainer

1700033

$23.81

5

Bushing

1700072

$9.59

6

Bumper, Comp.

1700042

Unavailable

7

Asm., Cylinder Head

1700156

$74.99

8

Nut

1700057

$9.59

9

Screw, Valve

1700056

$6.94

10

Pressure Valve O-Ring

1700047

$7.13

10

Asm., Pressure Valve

1700076

Unavailable

11

IFP

1700023

$45.59

11

IFP, Band, Wear

1700032

$24.99

11

IFP, O-Ring

1700048

$11.60

12

Washer, Back-Up

1700078

$9.59

12

Band, Wear

1700031

$28.32

12

Washer, Top-Out

1700077

$10.39

12

Banded, Piston

1700108

$30.55

13

Shaft

1700194

Unavailable

14

O-Ring

1700051

Unavailable

15

Seal, Rod

1700021

$20.22

16

Mount, Upper

1700010

Unavailable
