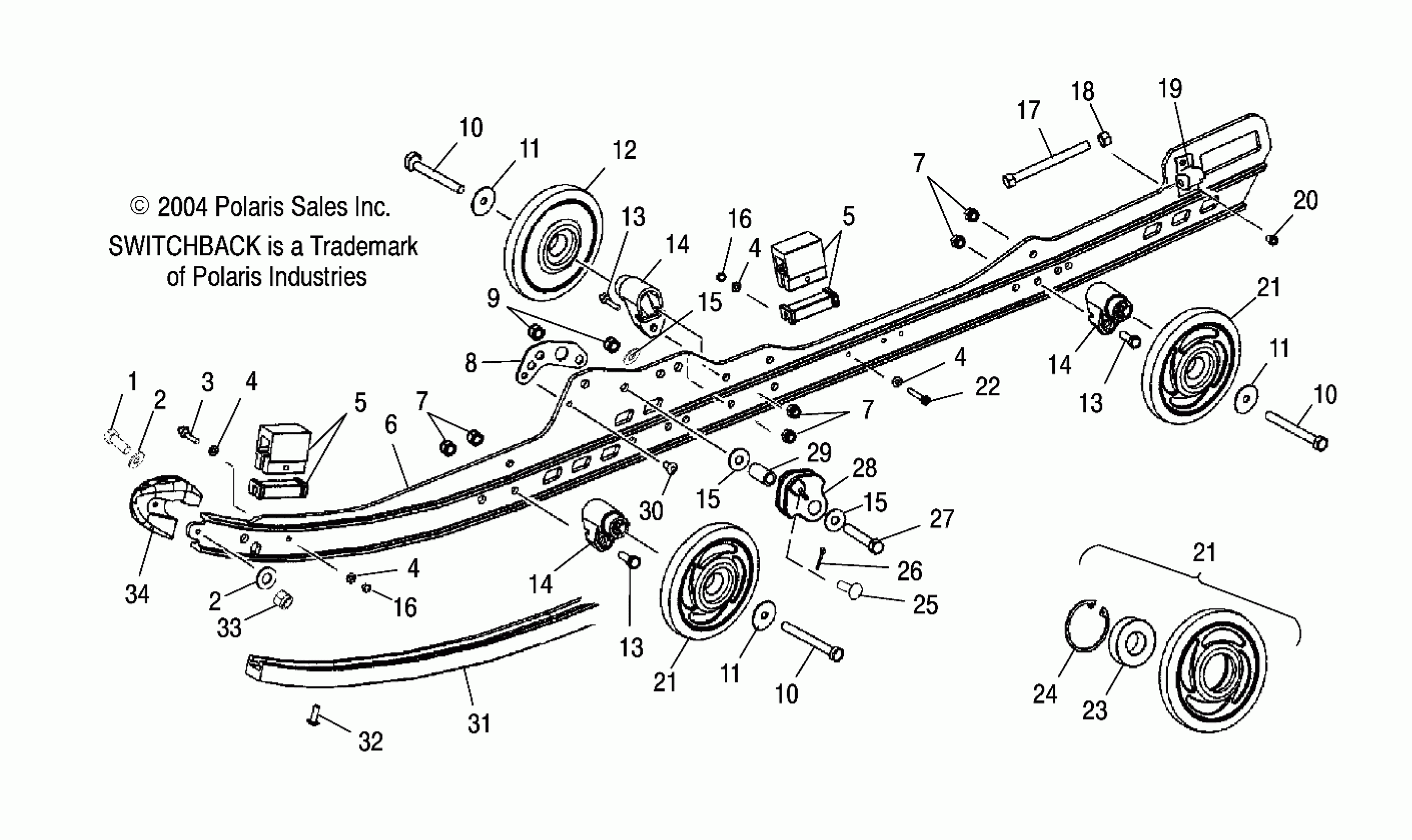

Polaris 600/800 SWITCHBACK F/O - S05NS6ES RAIL MOUNTING SUSPENSION - S05NS6ES/ESA/S05NS8CS/CSA (4992809280B09) Diagram

#

Description
Price

1

BOLT

7512007

$3.99

2

WASHER

7555792

$4.79

2

WASHER

7555792

$4.79

3

Screw

7510504

$6.76

4

Washer, Flat

7555783

$3.99

4

Washer, Flat

7555783

$3.99

4

Washer, Flat

7555783

$3.99

4

Washer, Flat

7555783

$3.99

5

BUMPER, JOUNCE, REAR

5521498

$8.89

5

LINER-BUMPER

5432946

$9.70

5

BUMPER, JOUNCE, REAR

5521498

$8.89

5

LINER-BUMPER

5432946

$9.70

6

Asm., Rail, LH [Incl. 1-6,19,20,33,34]

1541835

$364.99

6

Asm., Rail, RH [Incl. 1-6,19,20,33,34]

1541836

Unavailable

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

8

Bracket, Rail Reinforcement

5245411

$9.70

9

Nut, Nylok

7542439

$1.49

10

Screw

7515346

$5.59

10

Screw

7515346

$5.59

10

Screw

7515346

$5.59

11

Washer, Spring

7556179

$7.99

11

Washer, Spring

7556179

$7.99

11

Washer, Spring

7556179

$7.99

12

Asm., Bogie Wheel

1590317

$48.56

13

BOLT

7515317

$4.79

13

BOLT

7515317

$4.79

13

BOLT

7515317

$4.79

14

Block, Wheel Mount

5631065

$28.32

14

Block, Wheel Mount

5631065

$28.32

14

Block, Wheel Mount

5631065

$28.32

15

WASHER

7555983

Unavailable

15

WASHER

7555983

Unavailable

15

WASHER

7555983

Unavailable

16

Nut, Nylok

7541925

$1.49

16

Nut, Nylok

7541925

$1.49

17

SCREW

7517227

$7.19

18

NUT

7542404

$1.59

19

BLOCK, IDLER BOLT ADJUST

5130530

$32.37

20

RIVET

7621501

$2.39

21

Asm., Wheel, Scrolled Red [Incl. 23,24]

1590318-293

Unavailable

21

Asm., Wheel, Scrolled Red [Incl. 23,24]

1590318-293

Unavailable

21

Asm., Wheel, Scrolled Red [Incl. 23,24]

1590318-293

Unavailable

22

Screw

7510504

$6.76

23

BEARING [1 PER WHEEL]

3514303

$11.99

24

RET.RING-TRUARC [1 PER WHEEL]

7718407

$4.79

25

Pin, Clevis

7661123

$3.99

26

PIN, HITCH

7661644

$2.39

27

Screw

7515438

$4.79

28

Pin, Clevis

7661123

$3.99

28

GUIDE, SPRING, SQUARE

5434334

$28.32

28

PIN, HITCH

7661644

$2.39

29

SPACER

5333948

$6.39

30

RIVET

7661845

$1.49

31

Hi-Fax

5521632

$39.98

32

Screw

7515199

$1.49

33

Nut, Nylok

7541925

$1.49

34

Cap, Rail Tip

5434355

Unavailable
