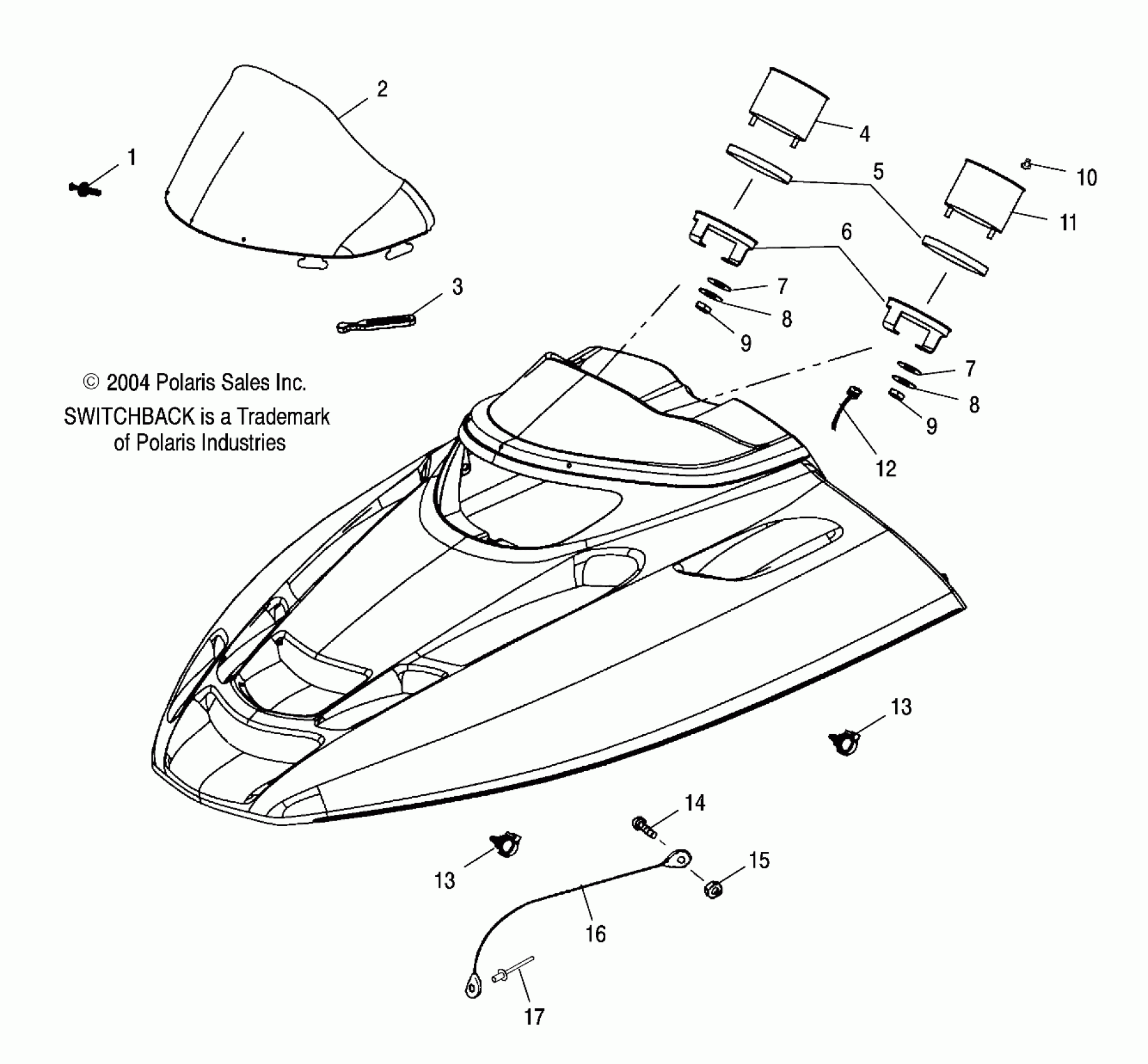

Polaris 600/800 SWITCHBACK F/O - S05NS6ES HOOD - S05NS6ES/ESA/S05NS8CS/CSA (4992809280A10) Diagram

#

Description
Price

1

Rivet, Plastic Lock

7621509

$1.49

2

Windshield, Smoke, Flared, 13 Inch

5435493

Unavailable

3

RETAINER, WINDSHIELD

5410970

$1.49

4

Bulb, Replacement

4030015

$4.03

4

Asm., Tachometer [600]

2874394

$181.49

4

Asm., Tachometer, DET [800]

3280432

Unavailable

5

Cushion, Rubber

3280209

$3.99

6

Bracket, Speedometer/Tachometer

3280210

$28.32

7

Washer, Flat

3280157

$2.39

7

Washer, Flat

3280157

$2.39

8

Washer, Split Lock

3280156

$1.49

8

Washer, Split Lock

3280156

$1.49

9

Nut

3280158

Unavailable

9

Nut

3280158

Unavailable

10

Knob, Trip Odometer

3280186

$9.70

11

Bulb, Replacement

4030015

$4.03

11

Asm., Speedometer

3280411

$339.98

12

Cable, Speedometer

3280385

$93.08

13

Clip, Plastic, Dart Nylon

4010589

$2.39

13

Clip, Plastic, Dart Nylon

4010589

$2.39

14

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

15

Nut, Nylok

7541925

$1.49

16

Cable, Hood Retainer

7080521

$24.27

17

RIVET-3/16-.090-.290

7661637

$1.49
