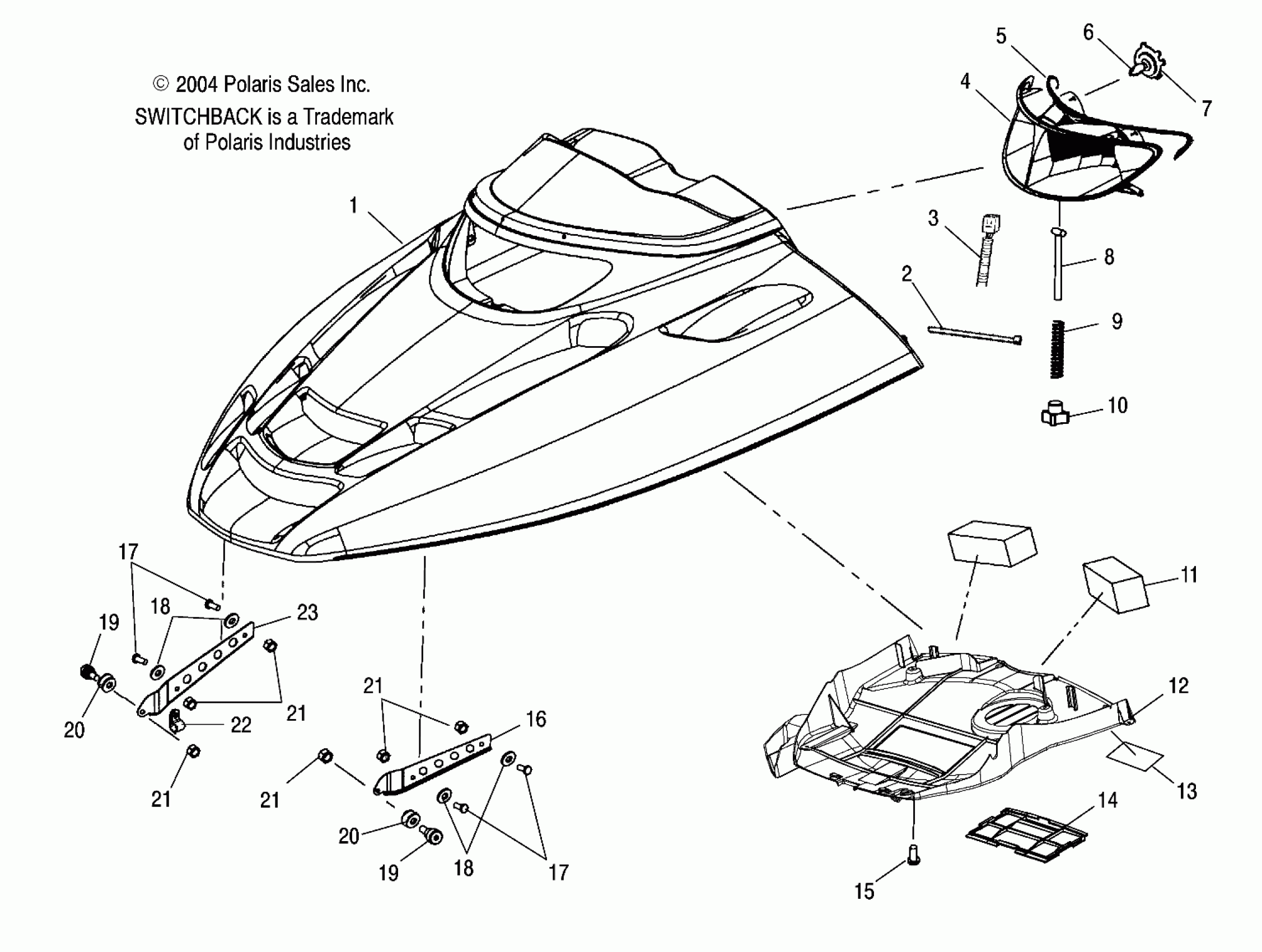

Polaris 600/800 SWITCHBACK F/O - S05NS6ES HOOD - S05NS6ES/ESA/S05NS8CS/CSA (4992809280A09) Diagram

#

Description
Price

1

Asm., Hood, Black

2632521-177

Unavailable

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

Harness, Headlight

2461015

$66.39

4

Asm. Headlamp [Incl. Bulbs]

2410132

Unavailable

5

Seal, Headlight, One Piece

5812450

$44.99

6

BULB, HEADLIGHT

2870448

$24.99

7

Retainer, Headlamp Bulb

4032063

Unavailable

8

Bolt, Tee Adjuster

7517872

Unavailable

9

Spring, Headlight Adjust

7041954

$3.22

10

KNOB-HEADLIGHT,ADJUST,LOCKINGB

7080887

$4.84

11

Foam, Prefilter

5811793

$24.27

12

Foil

5811948

Unavailable

12

Asm., Plenum w/Foil

2632491

$64.75

12

Foil, Plenum

5812324

Unavailable

13

Decal, Suspension Set-Up

7170040

Unavailable

14

Cover, Access, Headlight

5433660

$24.27

15

SCREW

7512068

$2.39

16

Hinge, Upper, LH

5243567-067

Unavailable

17

BOLT

7512240

$3.99

17

BOLT

7512240

$3.99

18

Washer, Flat

7558301

$1.49

18

Washer, Flat

7558301

$1.49

19

Bolt

7512113

$3.99

19

Bolt

7512113

$3.99

20

Spacer

5332403

$4.84

20

Spacer

5332403

$4.84

21

Nut, Nylok

7542122

$1.49

21

Nut, Nylok

7542122

$1.49

21

Nut, Nylok

7542122

$1.49

21

Nut, Nylok

7542122

$1.49

22

CLAMP-CABLE

7080367

$2.39

23

Hinge, Upper, RH

5243568-067

Unavailable
