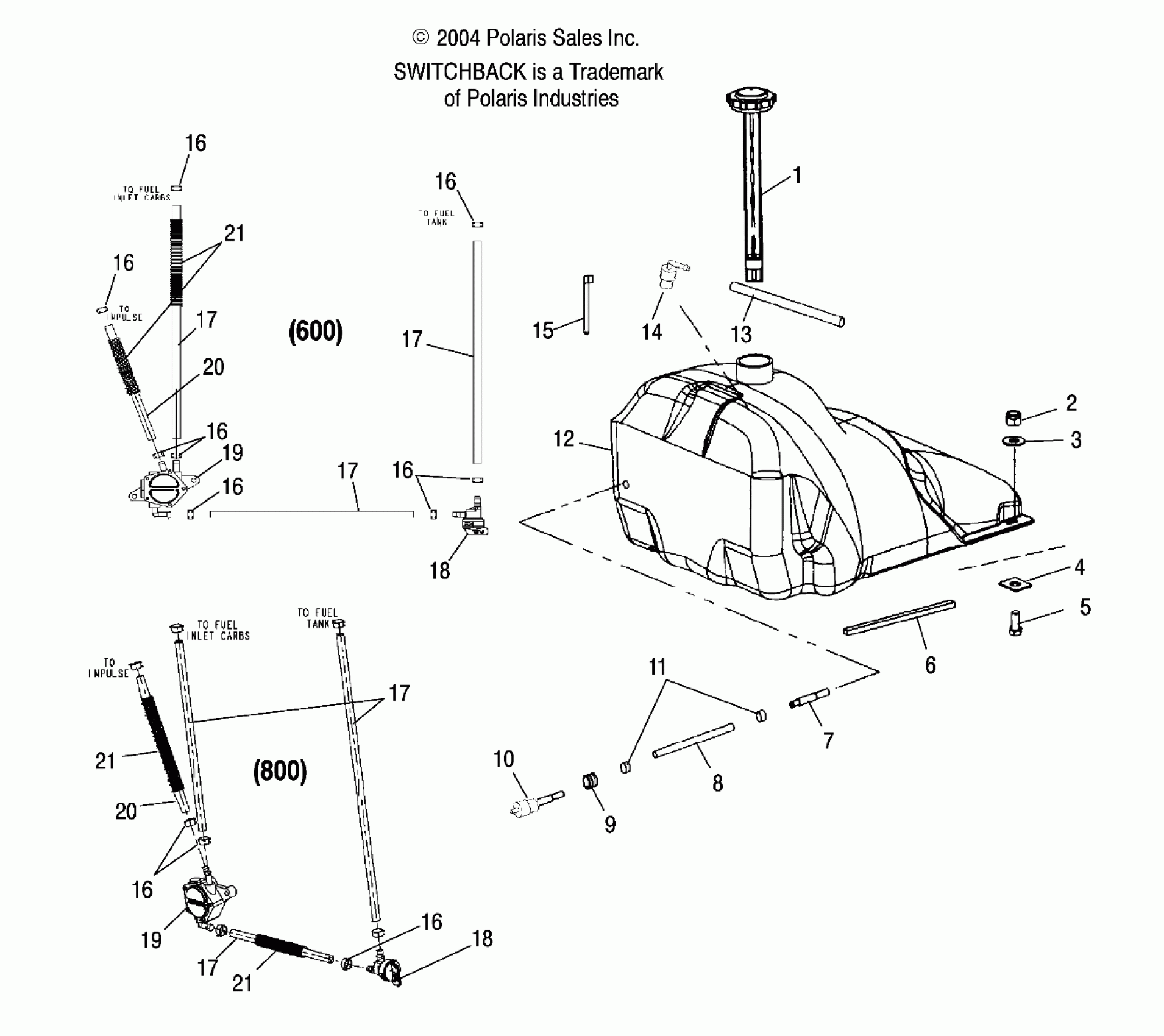

Polaris 600/800 SWITCHBACK F/O - S05NS6ES GAS TANK - S05NS6ES/ESA/S05NS8CS/CSA (4992809280A06) Diagram

#

Description
Price

1

Cap w/Gauge, Fuel

2520323

Unavailable

2

Nut, Nylok

7542122

$1.49

3

WASHER, FLAT

7555960

$3.99

4

Nut, Speed

7670021

$6.99

5

BOLT, CARRIAGE

7512193

$2.39

6

FOAM-SEAL,REAR COOLER

5810947

$4.03

7

Pickup w/Mesh, Fuel

7052215

$49.99

8

Fuel Line

8350020-600

Unavailable

9

Grommet

5432981

$6.94

10

Fitting

7052269

$24.99

11

RING, COMPRESSION

7080768

$4.84

12

Asm., Fuel Tank

2520262

$239.99

13

Fuel Line

8450061-600

Unavailable

14

Fitting, 90 Degree

7052095

$4.79

15

Cable Tie, Releaseable

7080804

$3.22

16

HOSE CLAMP, RED

7080003

$1.49

16

HOSE CLAMP, RED

7080003

$1.49

16

HOSE CLAMP, RED

7080003

$1.49

16

HOSE CLAMP, RED

7080003

$1.49

16

HOSE CLAMP, RED

7080003

$1.49

16

HOSE CLAMP, RED

7080003

$1.49

16

HOSE CLAMP, RED

7080003

$1.49

16

HOSE CLAMP, RED

7080003

$1.49

17

Line, Fuel [800]

8350017-600

Unavailable

17

Line, Fuel [600]

8350017-160

Unavailable

17

Line, Fuel [800]

8350017-600

Unavailable

17

Line, Fuel [600]

8350017-160

Unavailable

17

Line, Fuel [800]

8350017-600

Unavailable

17

Line, Fuel [600]

8350017-160

Unavailable

17

Line, Fuel [800]

8350017-600

Unavailable

17

Line, Fuel [600]

8350017-160

Unavailable

17

Line, Fuel [800]

8350017-600

Unavailable

17

Line, Fuel [600]

8350017-160

Unavailable

18

Asm., Valve, Fuel

1253424

$44.99

18

Asm., Valve, Fuel

1253424

$44.99

19

Pump, Fuel

2520275

$111.99

19

Pump, Fuel

2520275

$111.99

20

Line, Fuel

8450040-600

Unavailable

20

Line, Fuel

8450040-600

Unavailable

21

Tubing, Convoluted [800]

8360052-25

Unavailable

21

Tubing, Convoluted [600]

8360052-305

Unavailable

21

Tubing, Convoluted [800]

8360052-25

Unavailable

21

Tubing, Convoluted [600]

8360052-305

Unavailable

21

Tubing, Convoluted [800]

8360052-25

Unavailable

21

Tubing, Convoluted [600]

8360052-305

Unavailable
