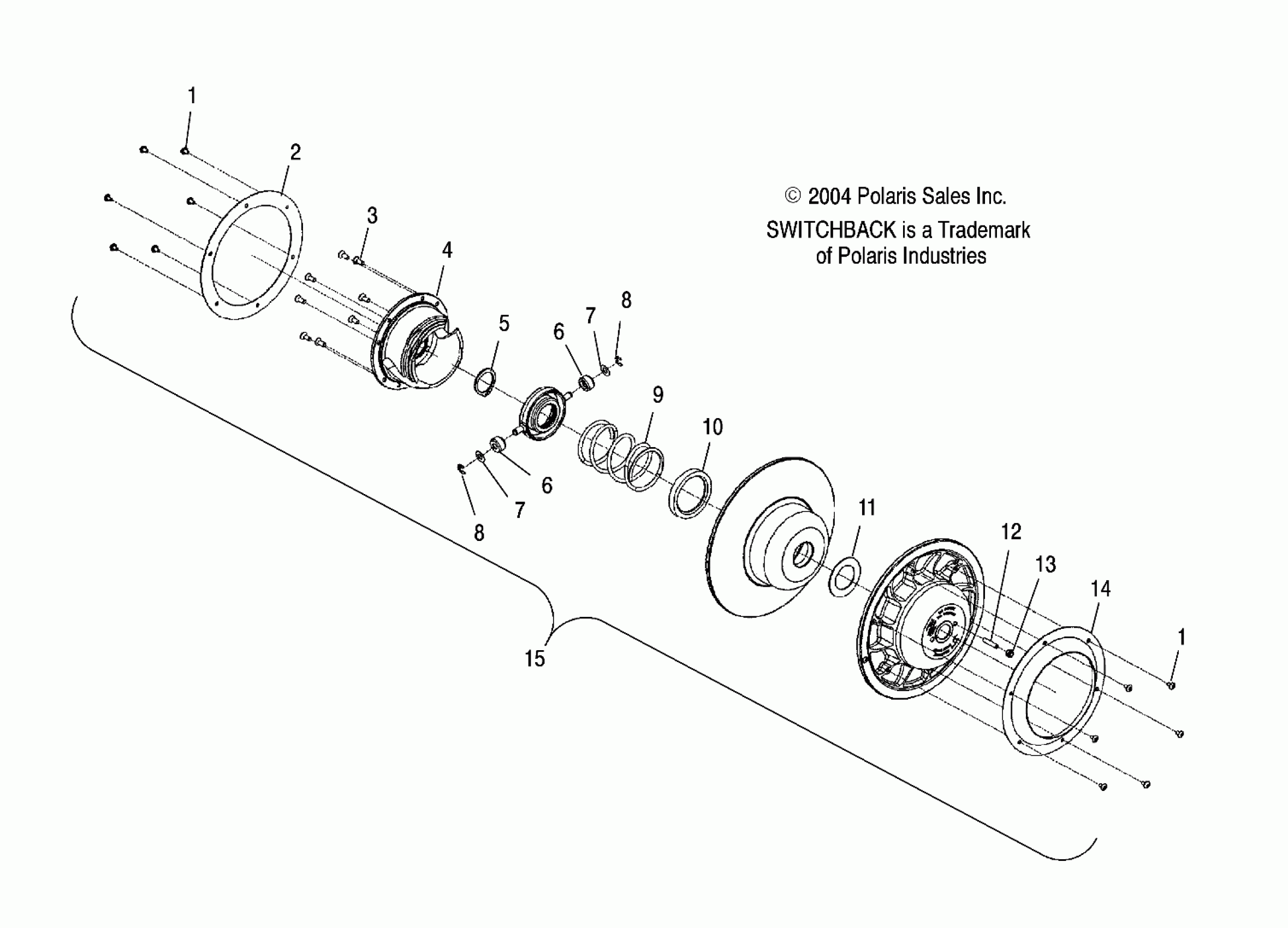

Polaris 600/800 SWITCHBACK F/O - S05NS6ES DRIVEN CLUTCH - S05NS6ES/ESA/S05NS8CS/CSA (4992809280C02) Diagram

#

Description
Price

1

Screw

7518023

$4.03

1

Screw

7518023

$4.03

2

Plate, Windage

5246216

$20.48

3

Screw, Cap

3233996

Unavailable

4

Ramp, Driven, 58/42-.36 [800]

5134132

Unavailable

4

Ramp, Driven, 56/42-.36 [600]

5134095

Unavailable

5

RING, RETAINING

7710522

$13.59

6

ROLLER

5434534

$48.56

6

ROLLER

5434534

$48.56

7

WASHER, THRUST

7556226

$5.65

7

WASHER, THRUST

7556226

$5.65

8

RET.E-RING-E T.375-TEAM#130059

7710523

$3.49

8

RET.E-RING-E T.375-TEAM#130059

7710523

$3.49

9

Spring, Driven Clutch, LH, Black

7043063

$56.65

10

WASHER, THRUST

7556227

$23.99

11

Spacer

3234033

Unavailable

12

Screw

7518024

Unavailable

13

Nut, FLEXLOC

7542103

$5.59

14

Plate, Windage

5246217

Unavailable

15

Asm., Driven Clutch, 216 [Incl. 5-8,10-13]

1322433

Unavailable
