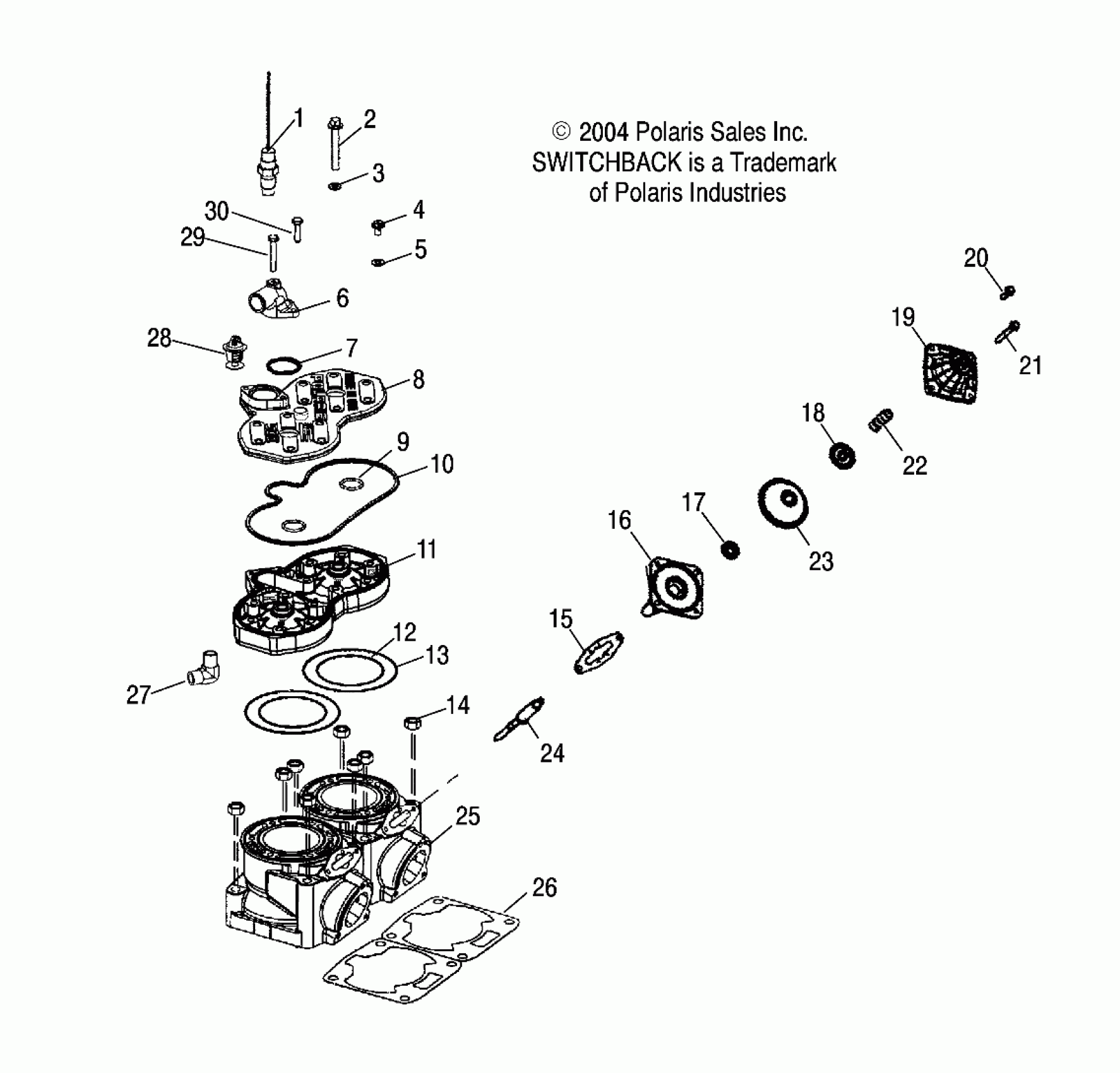

Polaris 600/800 SWITCHBACK F/O - S05NS6ES CYLINDER (600) - S05NS6ES/ESA (4992809280C11) Diagram

#

Description
Price

1

Sensor, Thermister

4010398

$36.41

2

SCREW

7517533

$4.79

3

Washer

7556082

$7.19

4

SCREW

7517679

$13.59

5

WASHER, FLAT

7555998

$1.49

6

Cover, Thermostat

5631391

Unavailable

7

O-Ring

5411521

$24.19

8

Cover, Head, 600 Liberty, Red

5631425-366

Unavailable

8

Cover, Head, 600 Liberty, Gold

5631425-462

Unavailable

9

O-RING

5411411

$1.49

10

Seal, Rubber Head

5411465

$32.37

11

Head, Cylinder

3021322

Unavailable

12

O-RING

5410932

$20.22

13

O-RING

5411359

$15.99

14

NUT

7547013

$1.99

15

Gasket, Base to Cylinder Exhaust Valve

5812350

$6.46

16

Asm., Base Exhaust Valve Dome

1202216

Unavailable

17

Washer, Bellows, Exhaust, Valve, Dome

5132950

Unavailable

18

Cap/Nut Bellows, Exhaust, Valve, Dome

5631381

$33.87

19

ASM., HOUSING W/BUSHING

1202640

$15.99

20

SCREW

7516820

$5.59

21

SCREW

7517932

$3.99

22

Spring, Compression, Green/Yellow

7041786-08

Unavailable

23

Bellows, Exhaust

5410000

$44.51

24

Valve, Guillotine

5133380

Unavailable

25

Cylinder

3021333

$531.75

26

Gasket, Cylinder Base

5812494

$24.99

27

Fitting

7052234

$39.99

28

Thermostat

7052258

$48.56

29

SCREW

7516818

$5.59

30

SCREW

7516822

$2.39
